Brembo KT00499 Front Brake Disc & Pad Kit for 2006-2015 Lexus IS250 296mm

Vehicle Fitment

• 2006-2015 Lexus IS250 - Base, F-Sport (2.5L V6; RWD & AWD) - Front

Fitment Notes

• This is a complete front axle brake kit covering the full production run of the Lexus IS250, spanning both the 2nd Generation (GSE20, 2006-2013) and 3rd Generation (GSE30, 2014-2015) platforms. A single kit number covers all IS250 model years and trim levels.
• Fits both Rear-Wheel Drive (RWD) and All-Wheel Drive (AWD) IS250 configurations. Verify your specific front rotor diameter (296mm) before ordering if you have made any prior brake modifications to your vehicle.
• This kit covers the front axle only. It does not include rear rotors or rear brake pads. A separate kit is required for rear axle service.
• Does NOT fit the Lexus IS350 or IS-F - those models use larger front rotors and different caliper specifications.
• Kit includes 2 front rotors and 1 front brake pad set - complete front axle service in a single purchase.

Features

• Complete front brake solution in one box - Brembo OE Prime UV Coated rotors and Prime NAO Ceramic brake pads, matched by Brembo engineers specifically for the IS250's front brake geometry, caliper, and weight class, eliminating the guesswork of sourcing compatible components separately.
• UV coating applied to the full rotor surface - including the braking plates, outer diameter, and hub - using a solvent-free, water-based process that delivers superior corrosion resistance beyond the OE standard, ready to install without brake cleaner prep.
• Pillar Vented Technology (PVT) - Brembo's patented internal pillar venting maximizes airflow through the rotor, providing up to 40% greater thermal crack resistance compared to conventional vane-vented designs.
• High-carbon cast iron rotor construction minimizes brake noise and vibration while enhancing thermal stability and heat dissipation - maintaining the quiet, composed character expected of a Lexus luxury sedan.
• Prime NAO Ceramic brake pads - designed specifically for the North American market, these pads deliver low dust emission, reduced wheel staining, quiet operation, and smooth, consistent pedal feel. Chamfered and slotted for vibration damping.
• Brake pad shim included - provides an additional layer of noise insulation between the pad and caliper piston for refined, squeal-free braking performance.
• Precision electronic rotor balancing minimizes lateral runout, eliminating the brake pedal pulsation and vibration that can develop with worn or lesser-quality replacement rotors.
• ECE R-90 certified - independently validated to meet European automotive safety and performance standards, confirming OE-equivalent stopping power and pad friction consistency.
• Intelligent rotor marking - part number and minimum discard thickness stamped directly on each rotor for easy service interval identification.
• All required installation hardware included - rotor fixing screws and pad hardware in the box; no supplemental hardware purchase needed.

Kit Specifications

• Kit Position: Front (both left and right)
• Rotor Type: Vented (Internally Ventilated - Pillar Vented Technology)
• Rotor Outside Diameter: 296mm (11.65")
• Rotor Surface: UV Coated
• Rotor Material: High-Carbon Cast Iron
• Brake Pad Type: Prime NAO Ceramic - formulated for the North American market
• Brake Pad Features: Chamfered & slotted; acoustic wear indicator; includes shim
• ECE R-90 Certified: Yes

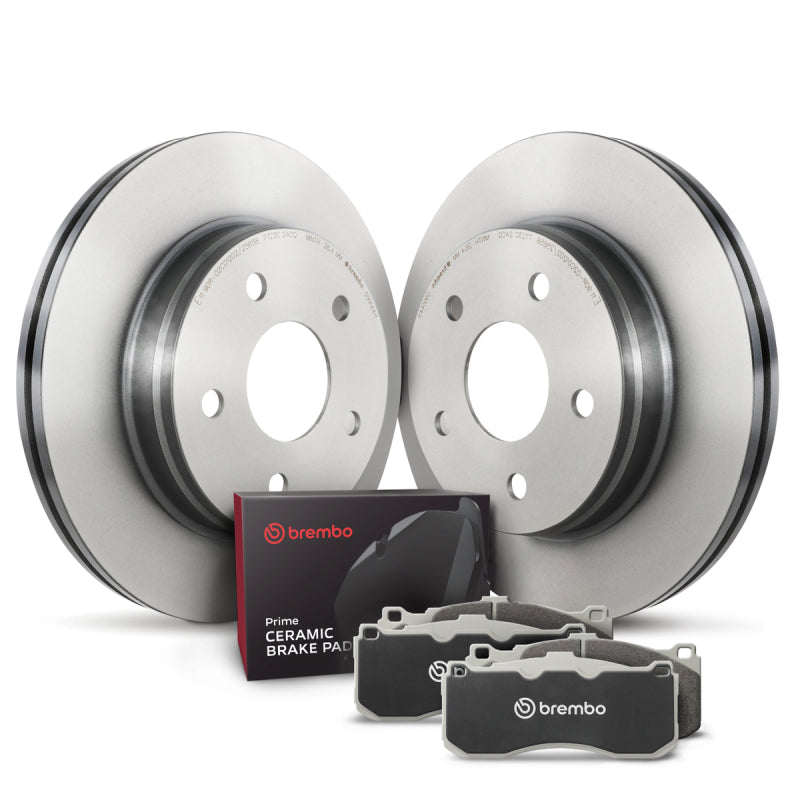

Included Components

• 2x Brembo Prime UV Coated Front Disc Brake Rotors (Brembo 09.A717.11)
• 1x Brembo Prime NAO Ceramic Front Brake Pad Set (with shim and acoustic wear indicator)
• Rotor fixing screw hardware kit
• Brake pad installation hardware

Product Description

The Brembo KT00499 is a complete OE front disc brake kit engineered as a direct, matched replacement for the Lexus IS250's front braking system across the full 2006-2015 production span - covering both the GSE20 second generation and the GSE30 third generation under a single kit number. The kit bundles two Brembo Prime UV Coated front rotors with a vehicle-specific Prime NAO Ceramic brake pad set, providing everything needed for a complete front axle service in a single box, with all components pre-selected and validated by Brembo engineers to work together on the IS250 platform.

The 296mm UV Coated rotors are built from high-carbon cast iron with Brembo's patented Pillar Vented Technology (PVT), optimizing thermal management and crack resistance for the IS250's front brake load. The solvent-free UV coating covers the entire rotor surface - including the braking plates - providing corrosion protection that outperforms factory specifications and allows installation directly from the box. The matched Prime NAO Ceramic pads are developed specifically for the North American market, delivering the low-dust, low-noise braking behavior that suits the IS250's luxury sport character. Chamfering and slotting on the pads dampen vibration, while the included shim and acoustic wear indicator complete a professional-grade installation package.

By purchasing a matched Brembo kit rather than individual components, brake pad friction material is paired to the exact rotor metallurgy, heat range, and surface texture Brembo engineers specified for this platform - eliminating the compatibility uncertainty that can arise from mixing brands. This kit covers the front axle only; rear axle service requires a separate kit. Brembo recommends replacing pads and rotors together at each service interval for optimal performance, consistent pedal feel, and even wear across both components.
