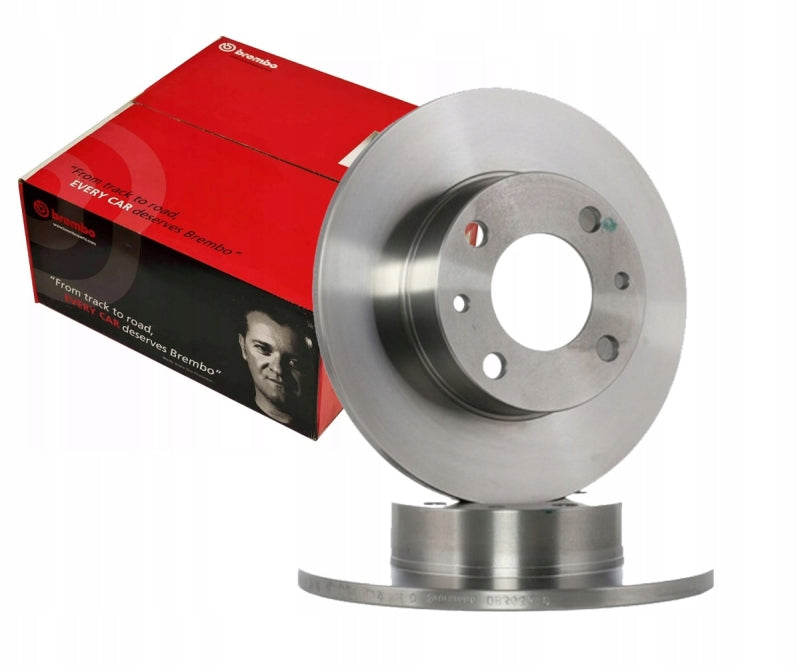

Brembo 09.9936.11 Premium UV Coated Front Brake Rotor Honda Civic-Fit-Insight

Vehicle Fitment

• 1996-2005 Honda Civic (DX, EX, GX, HX, LX, Si, Hybrid, Value Package)
• 1999-2000 Honda Civic Si 1.6L B16A2
• 2002-2003 Honda Civic Si 2.0L K20A3
• 2003-2005 Honda Civic Hybrid
• 1995-1997 Honda Civic del Sol VTEC
• 2007-2013 Honda Fit (Base, Sport)
• 2015-2020 Honda Fit (LX, EX, EX-L, Sport)
• 2013-2013 Honda Fit EV
• 2010-2014 Honda Insight (LX, EX, Base)

Fitment Notes

• Front axle application only
• Direct OEM replacement - no modifications required
• Fits vehicles with 262mm front rotors
• 4-lug bolt pattern (4x100)
• Sold individually - order quantity of 2 for complete front axle
• Fixing screws included for installation
• Brembo recommends replacing brake pads when installing new rotors

Features

• Premium UV coating provides superior corrosion resistance
• Environmentally friendly solvent-free UV coating process
• High carbon cast iron construction minimizes noise and vibration
• Vented design for optimal heat dissipation
• Electronic balancer system eliminates uneven weight distribution
• Ready to install out of the box - no cleaning required
• Intelligent marking shows part number and minimum thickness
• Meets or exceeds OEM specifications
• Enhanced driving comfort and braking performance
• Will not void vehicle manufacturer warranty

Specifications

• Part Number: 09.9936.11
• Brand: Brembo
• Series: Premium UV Coated OE Replacement
• Position: Front
• Quantity: Sold Individually
• Rotor Type: Vented
• Material: High Carbon Cast Iron
• Outside Diameter: 262mm (10.3 inches)
• Overall Height: 44.6mm
• Nominal Thickness: 21mm
• Minimum Thickness: 19mm
• Center Bore Diameter: 64.2mm
• Bolt Holes: 4
• Bolt Circle (PCD): 100mm
• Finish: UV Coated (Rust Resistant)
• Torque Specification: 108 Nm (80 lb-ft)
• Weight: 11.34 lbs (5.1 kg)
• Fixing Screws: Included
• JAN Code: 4580439036604
• Origin: Italy
• Warranty: Brembo Limited

Included Components

• (1) Brembo 09.9936.11 Premium UV Coated Front Brake Rotor
• Fixing Screw(s)

Product Description

The Brembo 09.9936.11 Premium UV Coated Front Brake Rotor delivers world-class braking performance as a direct OEM replacement for Honda Civic, Fit, Insight, and Civic del Sol vehicles. Manufactured from high carbon cast iron, this vented rotor provides excellent heat dissipation while minimizing noise and vibration for enhanced driving comfort. Brembo's innovative UV coating technology provides superior corrosion resistance compared to conventional coatings, protecting both the braking surfaces and the hat section from rust and deterioration. The environmentally friendly coating process uses water-based formulas without harmful solvents, and UV light curing eliminates the need for high-temperature application that could affect disc geometry. Each rotor is precision-balanced using Brembo's electronic balancer system to eliminate uneven weight distribution in the vented disc structure. The rotor arrives ready to install with no surface cleaning required, and includes fixing screws for secure mounting. With intelligent marking that displays the part number and minimum thickness specification, monitoring rotor wear is simple. Pair with Brembo NAO/Ceramic or Low-Met brake pads for optimal braking performance. Sold individually - order quantity of 2 for complete front axle replacement.
