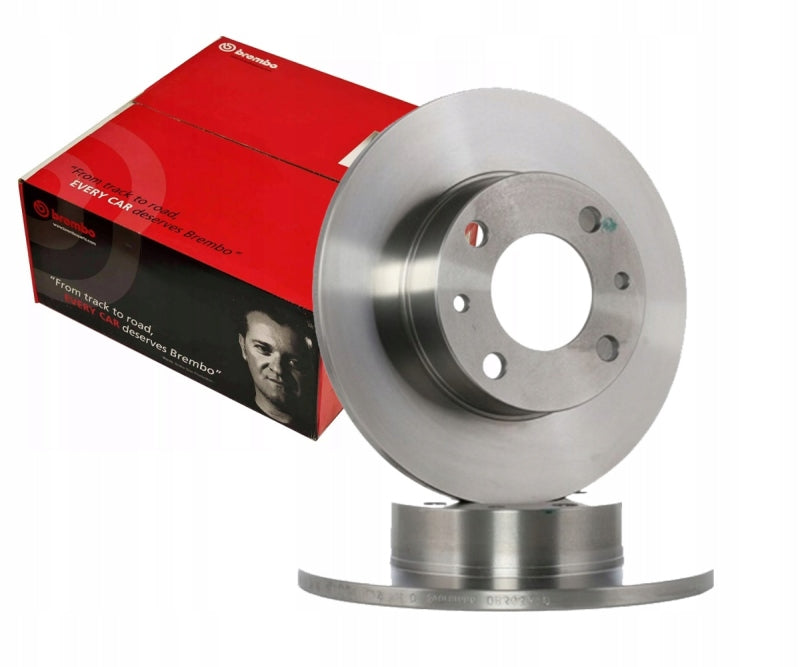

Brembo 09.A958.21 UV Coated Front Brake Rotor for Mercedes-Benz ML/GLE 4Matic

Vehicle Fitment

• 2012-2015 Mercedes-Benz ML350 (W166), 4-Matic, 3.5L V6, AWD
• 2012-2014 Mercedes-Benz ML350 BlueTec 4-Matic (W166), 3.0L V6 Diesel, AWD
• 2013-2015 Mercedes-Benz ML350 Base (W166), 3.5L V6, AWD
• 2015 Mercedes-Benz ML250 BlueTec 4-Matic (W166), 2.1L I4 Diesel, AWD
• 2015 Mercedes-Benz ML400 4-Matic (W166), 3.0L V6 Biturbo, AWD
• 2016-2018 Mercedes-Benz GLE350 (W166), 4-Matic, 3.5L V6, AWD
• 2016-2018 Mercedes-Benz GLE350 Base (W166), 3.5L V6, AWD
• 2016-2017 Mercedes-Benz GLE300d 4-Matic (W166), 2.1L I4 Diesel, AWD
• 2016-2017, 2019 Mercedes-Benz GLE400 4-Matic (W166), 3.0L V6 Biturbo, AWD
• 2017-2019 Mercedes-Benz GLE43 AMG 4-Matic (W166), 3.0L V6 Biturbo, AWD

Fitment Notes

• Fits front axle only - sold as one (1) rotor per unit; purchase two for a complete front axle replacement.
• Does not fit vehicles equipped with the Sport Brake System (Option Code U29).
• Compatible with Mercedes-Benz OE part numbers 1664210412 and 1664211012.
• Fits both W166 ML-Class and W166 GLE-Class platforms, which share the same chassis architecture.
• Verify brake system option code against your vehicle build sheet before ordering.

Features

• UV protective coating covers all rotor surfaces including internal ventilation chambers, providing superior corrosion resistance ready for installation out of the box.
• Brembo's patented Pillar Venting Technology (PVT) increases airflow through the rotor, improving resistance to thermal cracking by over 40% versus conventional vane designs.
• Cross-drilled surface enhances heat evacuation, pad bite, and water dispersal from the braking contact zone.
• High-carbon cast iron construction reduces noise and vibration for refined, confident braking on both daily drivers and performance-oriented SUVs.
• Precision-machined to tight tolerances to minimize lateral runout and deliver consistent pedal feel.
• Direct OE-equivalent fit - no modifications required for installation.
• ECE-R90 certified, meeting strict European safety and quality standards.
• Part number and minimum thickness stamped directly on the rotor for easy service identification.

Specifications

• Position: Front Axle
• Outer Diameter: 350 mm (13.78 in)
• Disc Thickness: 32 mm
• Minimum Thickness: 29.4 mm
• Height: 55 mm
• Centering Diameter: 67 mm
• Number of Bolt Holes: 5
• Disc Type: Internally Vented, Cross-Drilled
• Surface: UV Coated
• Material: High-Carbon Cast Iron
• Venting Design: Brembo PVT (Pillar Venting Technology)
• OE Part Numbers: 1664210412, 1664211012 (Mercedes-Benz)

Included Components

• 1x Brembo UV Coated Front Brake Disc (09.A958.21)
• 1x Fixing Screw Kit (all required installation hardware)

Product Description

The Brembo 09.A958.21 is a UV-coated, internally vented, cross-drilled front brake rotor designed as a direct OE replacement for the Mercedes-Benz W166 ML-Class and GLE-Class platforms. Spanning model years 2012-2019 across multiple trim levels - from the ML350 BlueTec diesel to the GLE43 AMG - this rotor covers a broad range of 4-Matic AWD configurations on a shared chassis. Built to Brembo's OE manufacturing standards, it matches factory dimensions and mounting specs exactly, with no modifications needed.

The 350 mm cross-drilled disc combined with Brembo's Pillar Venting Technology delivers superior thermal management compared to standard vented designs - a meaningful benefit given the weight and power outputs of these SUVs. Full UV coating across the entire disc, including the ventilation chambers, eliminates pre-installation rust and extends rotor service life. Note: this rotor is not compatible with vehicles equipped with the optional Sport Brake System (Code U29) - confirm your vehicle's brake configuration before purchasing.
