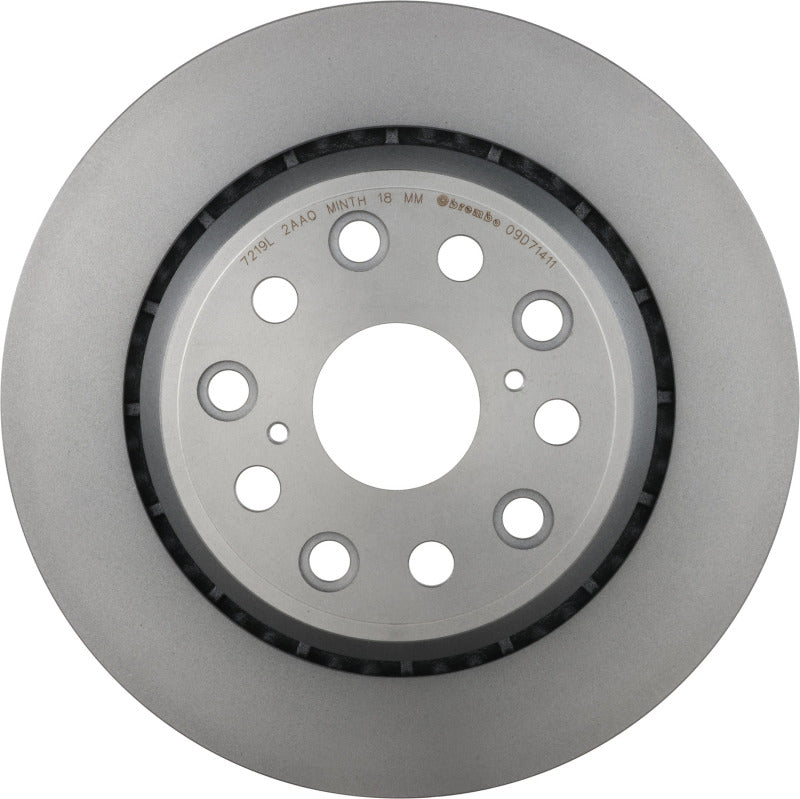

Brembo 09.D714.11 Rear Brake Rotor for 2007-2017 Lexus LS460 4.6L V8

Vehicle Fitment

• 2007-2017 Lexus LS460 (XF40/USF40, 4.6L V8, RWD, Base/L, compatible rear brake configuration)
• 2007-2017 Lexus LS460 (XF40/USF41, 4.6L V8, RWD, L, compatible rear brake configuration)
• 2013-2017 Lexus LS460 F Sport (XF40, 4.6L V8, RWD, only where equipped with the 315 mm x 20 mm rear rotor)

Fitment Notes

• Rear axle application; left and right rear positions use the same rotor.
• Requires the 315 mm x 20 mm rear brake configuration.
• LS460 models equipped with a different rear brake package or larger 335 mm rear rotor are excluded.
• Verify the original rear rotor diameter and thickness before ordering, particularly on F Sport and Sport Package vehicles.
• RWD configuration is required for the verified application.
• Not for Lexus LS460 AWD applications where the factory rear brake specification differs.
• Not for Lexus LS600h/LS600hL applications.
• Replace rear rotors in axle pairs for balanced braking performance.

Features

• Brembo Prime Line OE-equivalent replacement rear brake rotor.
• 315 mm outside diameter provides the specified braking surface.
• 20 mm nominal thickness matches the compatible factory rear brake configuration.
• 18 mm minimum thickness defines the specified service limit.
• Ventilated construction supports heat dissipation during repeated braking.
• UV-painted surface provides enhanced corrosion protection on exposed areas.
• High-quality cast-iron construction is designed for consistent street braking performance.
• 62 mm centering diameter provides the specified hub interface.
• Five-hole mounting configuration matches the compatible Lexus hub.
• Plain friction surface provides consistent pad contact.
• OE-equivalent design requires no modifications when correctly matched to the vehicle.
• ECE-R90 type-approved Brembo Prime design.

Specifications

• Brand: Brembo
• Part Number: 09.D714.11
• Product Line: Prime
• Product Type: Brake Disc Rotor
• Position: Rear
• Fitting Side: Left/Right
• Outside Diameter: 315 mm
• Nominal Thickness: 20 mm
• Minimum Thickness: 18 mm
• Overall Height: 66 mm
• Centering Diameter: 62 mm
• Mounting Holes: 5
• Brake Disc Type: Ventilated
• Surface Type: Plain
• Surface Treatment: UV Coated
• Construction: One-Piece
• Application: Rear Axle
• OE Reference: 42431-50090
• EAN: 8020584237830
• Units Per Box: 1x

Included Components

• 1x Brembo 09.D714.11 Rear Brake Rotor
• 1x Fixing Screw Kit

Product Description

The Brembo 09.D714.11 Prime Rear Brake Rotor is an OE-equivalent replacement designed for compatible 2007-2017 Lexus LS460 applications using the 315 mm rear brake configuration. Measuring 315 mm in diameter and 20 mm in nominal thickness, this ventilated rotor is engineered to restore the factory rear braking dimensions and provide consistent braking performance on compatible 4.6L V8 LS460 models.

The rotor features a 62 mm center bore, five-hole mounting pattern, 66 mm overall height, and 18 mm minimum thickness. Its UV-painted surface provides corrosion protection on the exposed hub and outer edges, while the ventilated construction assists with heat dissipation during normal and repeated braking. Brembo identifies the Prime design as OE equivalent and ECE-R90 type approved.

The 09.D714.11 is intended for the rear axle and can be used on either the left or right side when the vehicle has the specified 315 mm x 20 mm brake configuration. Fitment must be distinguished from LS460 versions using the larger rear brake package, so verify the factory rotor dimensions and OE reference 42431-50090 before installation. The rotor is supplied individually with fixing hardware.
