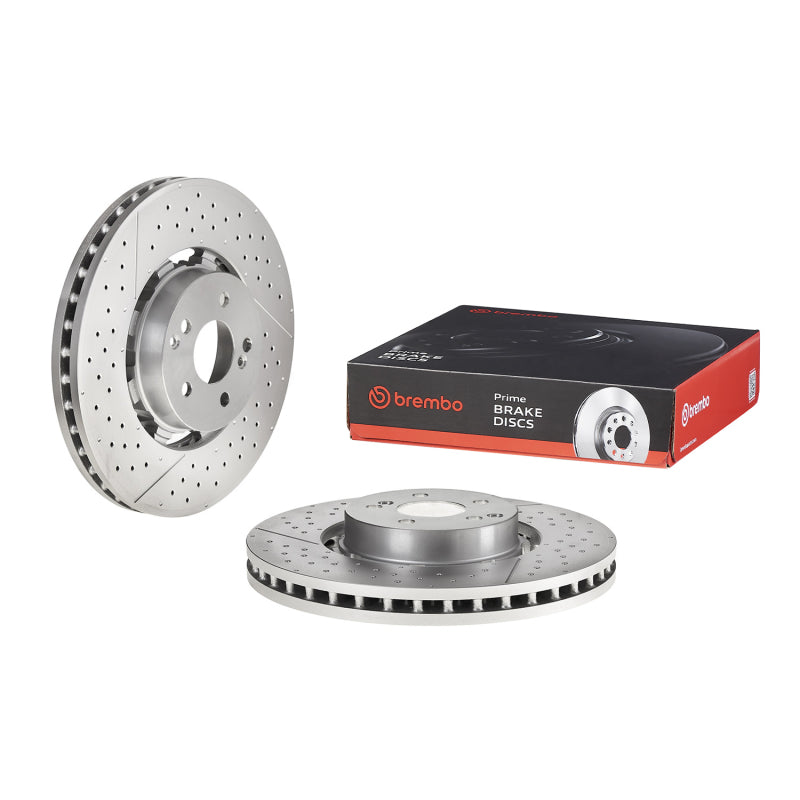

Brembo 09.A945.33 Prime Dual Cast Front Rotor for Mercedes AMG E63/CLS63/C63/GT

Vehicle Fitment

• 2012-2013 Mercedes E63 AMG Sedan (W212, Base)
• 2014-2016 Mercedes E63 AMG Sedan (W212, 4Matic)
• 2015-2016 Mercedes E63 AMG S Sedan (W212, 4Matic)
• 2012-2013 Mercedes CLS63 AMG (C218, Base)
• 2014 Mercedes CLS63 AMG (C218, 4Matic)
• 2014-2018 Mercedes CLS63 AMG S (C218, 4Matic)
• 2013-2014 Mercedes C63 AMG (W204, Base)
• 2017-2022 Mercedes-AMG GT (C190, Base / GT 43 / GT 53)

Fitment Notes

• Front position only -- sold individually (one rotor per listing; 2 required per axle)
• AMG models only -- does not fit standard E-Class, CLS, or C-Class non-AMG variants
• Replaces OE Mercedes-Benz part number A2124210512 / 2124210512
• Rotors and pads should be replaced together for optimal performance
• Professional installation required; fixing screw kit included

Features

• Brembo Prime Dual Cast series
• Cast iron braking surface with aluminum hat
• Internally ventilated design
• High carbon cast iron construction
• UV-coated surface finish
• Solvent-free environmentally friendly coating
• Reduced weight vs. full cast iron rotor
• Reduced thermal deformation
• Minimum thickness marking on disc
• ECE-R90 certified
• 2-year warranty

Specifications

• Position: Front
• Series: Brembo Prime Dual Cast
• Diameter: 360 mm (14.17 in.)
• Thickness: 36 mm (1.42 in.)
• Minimum Thickness: 33 mm
• Height: 64.5 mm
• Centering Diameter: 67 mm
• Bolt Holes: 5
• Disc Type: Ventilated
• Construction: Two-piece Dual Cast (cast iron + aluminum hat)
• Finish: UV coated
• OE Cross Reference: Mercedes A2124210512 / 2124210512
• EAN: 8020584316078
• Certification: ECE-R90

Included Components

• 1x Brembo Prime Dual Cast front brake rotor (09.A945.33)
• 1x Fixing screw kit

Product Description

The Brembo 09.A945.33 is a Prime series Dual Cast front brake rotor engineered specifically for high-output AMG applications -- covering the E63 AMG, CLS63 AMG, C63 AMG, and Mercedes-AMG GT platforms. The Dual Cast construction pairs a high carbon cast iron braking surface with a lighter aluminum hat, a configuration originally developed for OEM fitment on performance Mercedes platforms. This design reduces unsprung weight compared to a full cast iron rotor while retaining the thermal stability and noise-damping properties of high carbon iron under the sustained high-load braking demands of AMG powertrains.

The braking surface is finished with Brembo's solvent-free UV coating, protecting all non-contact surfaces from corrosion without compromising the friction interface. The rotor is internally ventilated for enhanced heat dissipation and carries ECE-R90 certification. A minimum thickness indicator is machined directly into the disc for easy service inspection. Sold individually -- two are required per vehicle for a front axle replacement. Backed by Brembo's 2-year warranty.
