Brembo 08.D759.11 UV Coated Rear Rotor for 2019-2023 Mercedes-Benz CLA250 A220

Vehicle Fitment

• 2019-2023 Mercedes-Benz CLA250 (C118, Base/4MATIC, 2.0L I4 Turbo, FWD/AWD)
• 2019-2022 Mercedes-Benz A220 (V177, Base/4MATIC, 2.0L I4 Turbo, FWD/AWD)
• 2019-2021 Mercedes-Benz A250 (V177, 4MATIC, 2.0L I4 Turbo, AWD)

Fitment Notes

• Rear axle fitment only - sold as a set of 2 rotors per box
• Fits vehicles equipped with the standard rear brake configuration (295mm solid disc); does not fit vehicles with the AMG Sport Package or upgraded brake options - verify your vehicle's brake specification before ordering
• This part covers the second-generation MFA2 A-Class (V177 sedan) and second-generation CLA (C118 coupe/shooting brake); it does not apply to the outgoing first-generation CLA (C117, 2014-2019) or first-generation GLA (X156, 2015-2020), which use a different rear rotor - see 08.B348.41 for those applications
• Mercedes-Benz OE cross-reference: A2474230212 (247423021207)

Features

• UV paint treatment on all non-friction surfaces delivers superior corrosion resistance right out of the box - no brake cleaner prep required before installation
• Water-based, solvent-free UV paint process - environmentally responsible with low energy consumption
• High-carbon cast iron construction minimizes brake noise and vibration for a refined luxury-car driving experience
• Direct OE-equivalent replacement - fully interchangeable with original equipment with no modifications required
• ECE-R90 certified - meets European safety standards for replacement brake discs
• Electronically balanced to tight tolerances, minimizing runout and pedal pulsation
• Intelligent minimum thickness marking for quick wear monitoring at service intervals
• Includes fixing screw kit with all hardware required for installation

Specifications

• Position: Rear (Left and Right)
• Disc Type: Solid (Non-Vented)
• Outside Diameter: 295 mm (11.61 in)
• Nominal Thickness: 12 mm
• Minimum Thickness: 10.5 mm (0.41 in)
• Overall Height: 44 mm (1.73 in)
• Center Bore: 67 mm
• Lug Hole Count: 5
• Surface Finish: UV Coated / Smooth Plain
• Material: High-Carbon Gray Cast Iron
• ABS Tone Ring: Not Included
• Mercedes-Benz OE Cross-Reference: A2474230212 (247423021207)
• Brembo Line: Prime (OE Replacement)

Included Components

• 2x Brembo UV Coated Solid Rear Brake Rotors
• 1x Fixing Screw Kit (all mounting hardware included)

Product Description

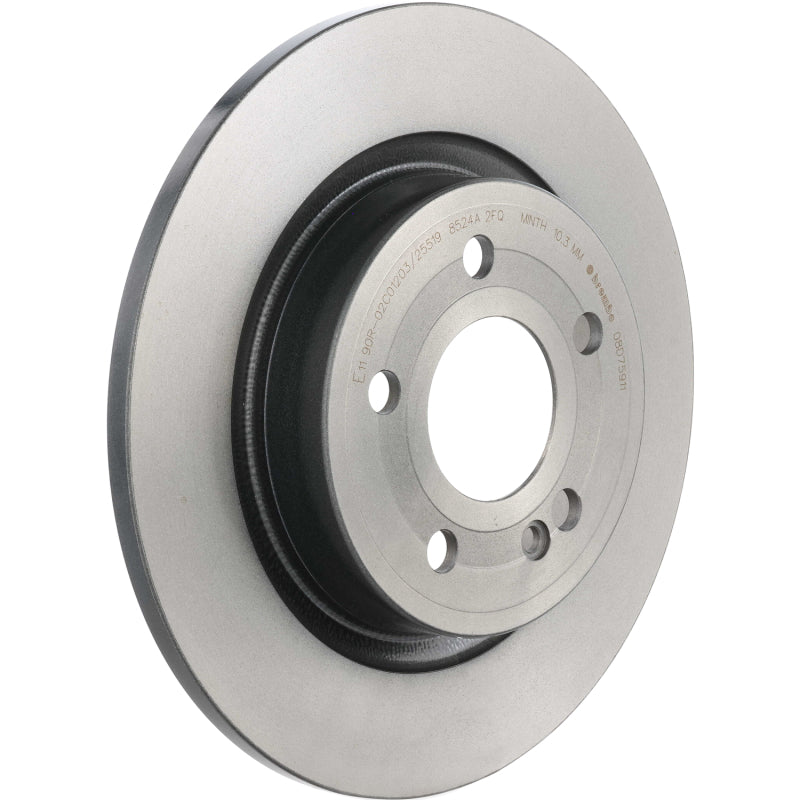

The Brembo 08.D759.11 is a UV-coated solid rear brake rotor from the Brembo Prime line, designed for the second-generation Mercedes-Benz MFA2 platform - specifically the 2019-2023 CLA250 (C118), 2019-2022 A220, and 2019-2021 A250 (V177 sedan). It cross-references Mercedes-Benz OE part number A2474230212 and installs as a direct bolt-on with no modifications required. Both rotors for the rear axle are included in the box.

Note that this part number applies specifically to the new-generation CLA (C118, from 2020 MY) and the US-market A-Class sedan (V177). It is a different application from the outgoing first-generation CLA (C117) and GLA (X156), which use the 08.B348.41. Brembo's Prime UV paint treatment protects the non-braking surfaces from corrosion, while high-carbon cast iron alloy reduces the noise and vibration common in economy-grade replacements. ECE-R90 certified and Brembo quality-controlled. Verify your vehicle's rear brake configuration before ordering - vehicles equipped with the AMG Sport Package or optional sport brake systems may use a different specification.
