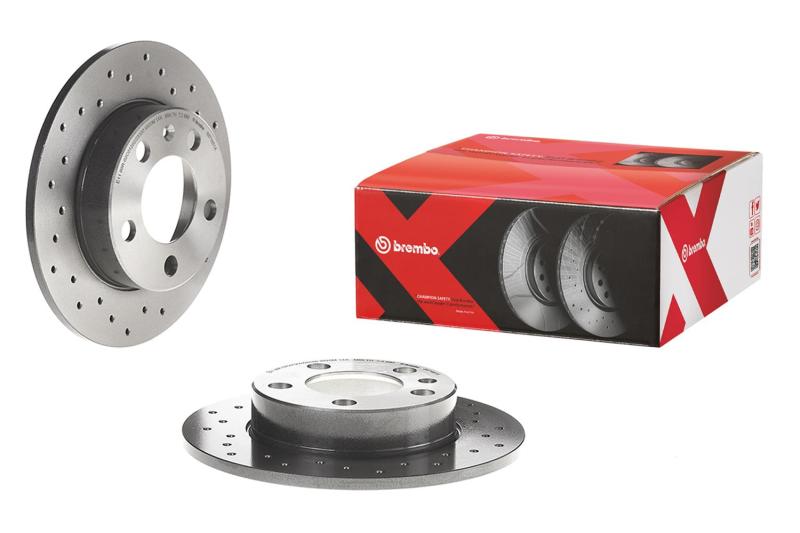

Brembo 09.A870.1X Xtra Cross-Drilled Front Rotor 316mm for 05-18 Subaru

Vehicle Fitment

• 2005-2014 Subaru Legacy (Front Brake Rotor, AWD/2WD where applicable)
• 2006-2014 Subaru Outback (Front Brake Rotor, AWD)
• 2010-2014 Subaru Legacy (3.6 L) (Front Brake Rotor)
• 2014-2018 Subaru Forester (Front Brake Rotor, AWD)

Features

• Premium Xtra Series front brake rotor - cross-drilled and vented
• UV-coated finish provides corrosion resistance on entire surface
• High-carbon cast iron for improved heat control and durability
• Drilled design enhances gas and heat evacuation under heavy braking
• Balanced for reduced vibration and smoother brake feel
• Direct replacement - no modifications required
• Includes fixing screws for straightforward installation
• Designed to restore original braking performance and feel

Specifications

• Brand: Brembo
• Part Number: 09.A870.1X
• Series: Xtra Cross-Drilled UV Coated
• Position: Front axle
• Rotor Diameter: 316 mm
• Nominal Thickness: 30 mm
• Minimum Thickness: 28.5 mm
• Height: ~57 mm
• Centering Diameter: 58 mm
• Lug Pattern: 5 holes
• Tightening Torque: 100 Nm
• Material: High-carbon cast iron

Included Components

• 1x Brembo 09.A870.1X front brake rotor (sold individually)
• 1x Fixing screw hardware kit

Product Description

The Brembo 09.A870.1X Xtra Cross-Drilled UV Coated Front Brake Rotor is built as a direct replacement for worn or OEM front rotors on select Subaru vehicles equipped with 316 mm front brakes. Its high-carbon cast-iron construction and vented design improve heat dissipation and resistance to brake fade, while the precision cross-drilled surface aids gas and dust evacuation under repeated braking. The UV coating offers strong corrosion resistance across the entire rotor surface, preserving appearance and long-term durability.

Designed to meet or exceed factory standards, this rotor installs easily with the included fixing hardware and fits driver or passenger side without modification. Ideal for drivers performing routine brake maintenance or upgrading to a premium rotor option, the 09.A870.1X delivers reliable stopping power and smooth pedal feel. For best results, replace in pairs and pair with quality brake pads designed for Subaru applications.
