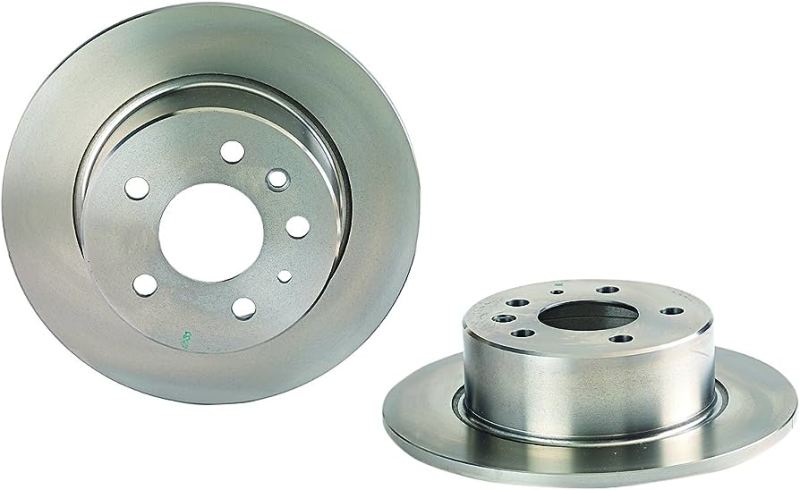

Brembo 09.B504.11 UV Coated Rear Brake Disc for 2013-2020 Land Rover Range Rover

Vehicle Fitment

• 2013-2020 Land Rover Range Rover (L405, LWB, SV Autobiography Dynamic)
• 2014-2020 Land Rover Range Rover Sport (L494)

Features

• OE-equivalent design for seamless compatibility
• UV-coated surface for superior corrosion resistance
• High-carbon cast iron construction reduces noise and vibration
• Internally vented (PVT) design enhances cooling and resists thermal cracking
• Includes fixing screw kit for easy installation
• Solvent-free UV coating process is environmentally friendly
• Intelligent marking with part number and minimum thickness indicators
• ECE R90 certified for safety and performance compliance

Specifications

• Diameter: 365 mm
• Thickness: 25 mm
• Height: 49 mm
• Number of Holes: 5
• Centering Diameter: 79 mm
• Minimum Thickness: 22 mm
• Axle: Rear
• Material: High-carbon cast iron
• Coating: UV-coated for corrosion resistance
• Brake Disc Type: Internally vented (PVT)

Included Components

• 1x Rear Brake Disc Rotor
• 1x Fixing Screw Kit

Product Description

The Brembo 09.B504.11 UV Coated Rear Brake Disc is engineered as a direct replacement for the rear axle of 2013-2020 Land Rover Range Rover and Range Rover Sport models. Designed to meet or exceed OEM specifications, this brake disc ensures optimal braking performance and safety.

Constructed from high-carbon cast iron, the disc minimizes noise and vibration, enhancing driving comfort. Its internally vented (PVT) design improves cooling efficiency, reducing the risk of thermal cracking. The UV-coated surface offers superior corrosion resistance, extending the lifespan of the disc.

Installation is straightforward, with the included fixing screw kit providing all necessary hardware. The environmentally friendly UV coating process is solvent-free, aligning with modern sustainability standards. For best performance, it is recommended to pair this rotor with Brembo's NAO/Ceramic or Low Met brake pad formulations.
