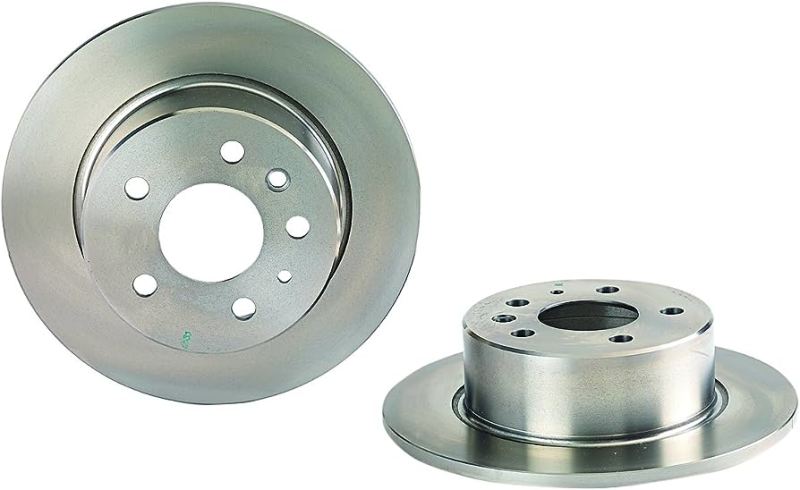

Brembo 09.N286.21 UV Coated Rear Brake Rotor for 2013-2019 Cadillac ATS

Vehicle Fitment

• 2013-2019 Cadillac ATS, RWD/AWD, 2.0L Turbo/2.5L/3.6L

Fitment Notes

• Rear axle application; confirm against vehicle build sheet, as ATS-V and Performance brake packages may use a different rotor

Features

• UV-cured paint coating on hub and outer edge for corrosion resistance
• Vented design for improved heat dissipation
• Precision-balanced for smooth, vibration-free braking
• OE-equivalent design, meets or exceeds original material specs
• ECE-R90 type-approved for road use
• Anti-corrosion treatment for long-term durability
• Includes fastening screws for installation
• Direct bolt-on fit, no modification required

Specifications

• Position: Rear
• Disc Type: Vented
• Diameter: 315mm
• New Thickness: 23mm
• Minimum Thickness: 21mm
• Bolt Holes: 5
• Centering Bore: 71mm
• Height: 48mm

Included Components

• 1x Brembo Rear Brake Rotor
• Fastening screws

Product Description

The Brembo 09.N286.21 is a UV-coated, vented rear brake rotor engineered as a direct OE-equivalent replacement for the Cadillac ATS. Its vented design helps manage heat during braking, supporting consistent stopping performance over repeated use.

The UV-cured coating protects the hub and outer edge from corrosion, helping the rotor resist rust while maintaining a clean appearance. Precision balancing and tight tolerances reduce vibration and pedal pulsation once installed.

Sold individually for the rear position, this rotor suits ATS owners replacing worn or warped factory discs who want a reliable, no-modification replacement that matches original equipment specifications.
