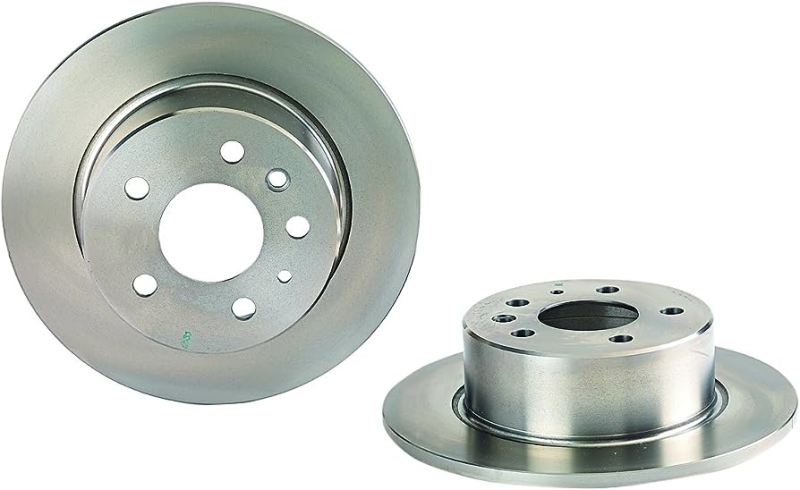

Brembo 09.C662.11 UV Coated Rear Brake Rotor forSubaru BRZ/WRX Scion FR-S Toyota

Vehicle Fitment

• 2013-2016 Scion FR-S (ZN6), all trims, 2.0L H4 BOXER, RWD - standard brake package
• 2013-2018 Subaru BRZ (ZC6), all trims, 2.0L H4 BOXER, RWD - standard brake package (without Brembo Performance Package)
• 2017-2020 Toyota 86 (ZN6), all trims, 2.0L H4 BOXER, RWD - standard brake package
• 2010-2014 Subaru Legacy (BR/BN), 2.5i / 2.5i Premium / 2.5i Limited / 2.5i Sport, 2.5L H4, AWD
• 2008-2014 Subaru WRX (GH/GE/VA), 2.5L Turbo H4, AWD - standard brake package

Fitment Notes

• Fits rear axle only - sold as one (1) rotor per unit; purchase two for a complete rear axle replacement.
• Compatible with Subaru/Toyota OE part numbers 26700AJ010 (superseded by 26700CC000) and SU00300638.
• Does NOT fit Subaru BRZ equipped with the optional Brembo Performance Package - those models use a larger-diameter rear rotor requiring a different part number.
• Does NOT fit WRX STI - the STI uses a significantly larger Brembo rear rotor. Confirm your specific trim and brake package before ordering.
• Verify your rear rotor diameter (290mm) before purchasing, as other Subaru/Toyota variants on the same platform may use different brake specifications.

Features

• Pillar Venting Technology (PVT) increases airflow through the rotor, improving resistance to thermal cracking by over 40% versus conventional vane designs - well-suited to the spirited driving character of the BRZ, FR-S, and 86 platforms.
• Full UV coating across all rotor surfaces - including internal ventilation chambers - provides superior corrosion resistance and a clean appearance, ready to install straight from the box.
• High-carbon cast iron construction minimizes noise and vibration for smooth, consistent braking in both daily driving and spirited use.
• Precision-machined to Brembo's strict dimensional tolerance values, minimizing lateral runout and delivering consistent pedal response.
• Direct OE-equivalent replacement - meets or exceeds Subaru and Toyota factory specifications with no modifications required.
• ECE-R90 certified, meeting strict European safety and quality standards for replacement brake discs.
• Part number and minimum thickness stamped directly on the rotor for quick service identification.
• All required fixing hardware included for straightforward installation.

Specifications

• Position: Rear Axle
• Outer Diameter: 290 mm (11.42 in)
• Disc Type: Internally Vented, Smooth Finish
• Venting Design: Brembo PVT (Pillar Venting Technology)
• Surface: UV Coated (PRIME Line)
• Material: High-Carbon Cast Iron
• Number of Bolt Holes: 5
• OE Part Numbers: 26700AJ010 / 26700CC000 (Subaru); SU00300638 (Toyota/Scion)

Included Components

• 1x Brembo UV Coated PVT Rear Brake Disc (09.C662.11)
• 1x Fixing Screw Kit (all required installation hardware)

Product Description

The Brembo 09.C662.11 is a UV-coated, Pillar-Vented 290mm rear brake rotor engineered as a direct OE replacement across the Toyota/Subaru 86 platform, the Subaru BRZ (standard brakes), and the Subaru WRX and Legacy. Built to Subaru OE specification 26700AJ010 (current supersession 26700CC000), this rotor installs without modification and restores full rear braking performance to factory standard. The PRIME line reflects the same engineering standards Brembo applies to its OEM supply contracts with both Subaru and Toyota.

Full UV coating across the entire disc - including the internal ventilation channels - prevents pre-installation corrosion and extends service life. Brembo's Pillar Venting Technology improves heat management over conventional vaned designs, delivering fade-resistant performance that complements the rear-wheel-drive character of the BRZ, FR-S, and 86. Always confirm your vehicle does not have the Brembo Performance Package or STI brake upgrade before ordering, as those configurations use different, larger rear rotors.
