Brembo 09.D450.11 UV Coated Front Rotor for 2013-2025 Nissan Altima 2.5L/3.5L

Vehicle Fitment

• 2013-2018 Nissan Altima (S, SV, SR, SL, Base), 2.5L I4 / 3.5L V6, FWD/AWD
• 2019-2025 Nissan Altima (S, SV, SR, SL, Platinum, SR VC-Turbo, Edition ONE), 2.5L I4 / 2.0L VC-Turbo I4, FWD/AWD

Fitment Notes

• Fits both the 5th-generation L33 Altima (2013-2018) and 6th-generation L34 Altima (2019-2025) - both share the same 296mm front rotor specification
• Sold as a single rotor (1x per box); two required per front axle
• Compatible with FWD and AWD drivetrain configurations across all applicable trims
• Always verify fitment against your VIN before ordering to confirm brake package specification

Features

• OE-equivalent design - direct replacement for Nissan OE part 402063TA0A with no modifications required
• Brembo Pillar Vented Technology (PVT) increases airflow through the rotor for over 40% greater resistance to thermal cracking versus conventional vane designs
• Full-surface UV coating protects the braking band, hat, and internal ventilation chambers from corrosion from day one
• High-carbon cast iron alloy minimizes vibration and brake noise for a refined, comfortable ride
• Electronically balanced at the factory to minimize runout right out of the box
• ECE R-90 certified, meeting international safety and performance standards
• Part number and minimum thickness engraved directly on the disc for easy service inspection
• Solvent-free UV process uses up to 98% less energy than traditional zinc or paint coatings

Specifications

• Position: Front Axle
• Disc Type: Vented
• Surface: UV Coated
• Diameter: 296mm
• Thickness: 26mm
• Minimum Thickness: 24mm
• Height (Hat): 49mm
• Centering Diameter: 68mm
• Number of Bolt Holes: 5
• Bolt Pattern: 5x114.3mm
• OE Reference: 402063TA0A (Nissan)
• EAN Code: 8020584229132

Included Components

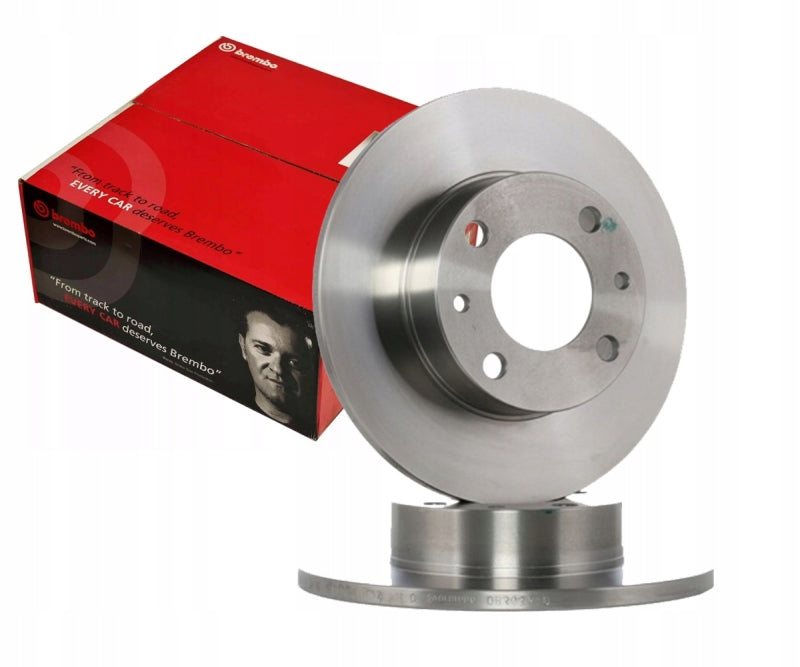

• 1x Brembo Prime UV Coated Front Brake Rotor (09.D450.11)
• 1x Fixing screw kit with all hardware required for installation

Product Description

The Brembo 09.D450.11 is a Prime Line OE-equivalent front brake rotor designed as a direct replacement for the Nissan Altima across both the 5th-generation L33 (2013-2018) and 6th-generation L34 (2019-2025) platforms. Replacing Nissan OE part 402063TA0A, this rotor is manufactured with high-carbon cast iron and finished with Brembo's solvent-free UV coating, which protects the entire rotor surface - including internal ventilation chambers - from rust and corrosion without the need for pre-installation cleaning. Brembo's patented Pillar Vented Technology (PVT) replaces traditional vanes with strategically positioned internal pillars to significantly improve heat dissipation and crack resistance under repeated braking loads.

The rotor bolts on directly without modifications and is compatible with all Altima trims and both FWD and AWD configurations. Brembo recommends replacing both front rotors as a pair and pairing with Brembo NAO/Ceramic or Low Met brake pads for optimal braking performance and wear life. Complete a proper bedding procedure after installation to seat the pads evenly and maximize braking response.
