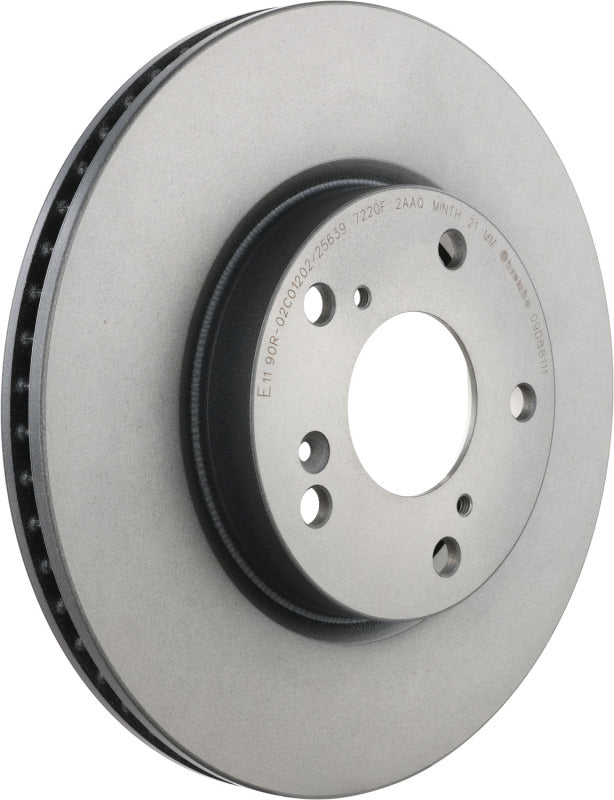

Brembo 09.D881.11 UV Coated Vented Front Brake Rotor for 2016-2025 Honda Civic

Vehicle Fitment

• 2016-2018 Honda Civic (LX, LX-P, DX, EX, EX-T, EX-L, Touring, Sport, Sport Touring, Turbo, Turbo Plus, 1.5L I4 Turbo, 2.0L I4, FWD)
• 2017-2018 Honda Civic (Sport, Sport Touring, 1.5L I4 Turbo, FWD)
• 2019-2025 Honda Civic (LX, Sport, EX, EX-L, Touring, Sport Touring, DX, Sport Plus, 1.5L I4 Turbo, 2.0L I4, FWD)

Fitment Notes

• Fits vehicles equipped with a 282mm diameter front brake rotor only - verify rotor diameter before ordering.
• Does not fit Honda Civic Si or Honda Civic Type R (FK8/FL5) - these trims use a larger front rotor diameter.

Features

• Brembo PRIME UV coating provides full-surface corrosion protection, including internal venting chambers.
• Patented Pillar Vented Technology (PVT) improves airflow and increases crack resistance by over 40% versus traditional vane designs.
• High-carbon cast iron construction minimizes noise, vibration, and harshness for a refined driving experience.
• Meets or exceeds OE specifications with ECE R-90 certification for verified safety compliance.
• Precision-machined surface promotes even brake pad contact, reducing the risk of thickness variation and pulsation.
• Electronically balanced for consistent, vibration-free braking straight out of the box.
• Replaces Honda OE part number 45251TBAA00 for a confirmed direct-fit installation.
• Supplied with all necessary fixing hardware for complete and straightforward installation.

Specifications

• Position: Front (Left or Right)
• Rotor Type: Vented / Ventilated
• Outer Diameter: 282mm
• Nominal Thickness: 23mm
• Minimum Discard Thickness: 21mm
• Hub Height: 47mm
• Center Bore (Centering): 64mm
• Lug Hole Quantity: 5
• Surface Finish: Smooth, Non-Directional
• Coating: UV Anti-Corrosion (Solvent-Free)
• ABS Tone Ring: Not Included
• Replaces Honda OE#: 45251TBAA00
• Units Per Box: 1

Included Components

• 1x Brembo PRIME UV Coated Front Brake Rotor (09.D881.11)
• 1x Fixing Screw / Hardware Kit

Product Description

The Brembo 09.D881.11 is a PRIME UV Coated, vented front brake rotor engineered as a direct OE replacement for the 10th and 11th generation Honda Civic (2016-2025). Built to match Honda OE part number 45251TBAA00, it fits all standard trims equipped with the 282mm front rotor - including LX, EX, Touring, Sport, and Sport Touring variants across both the 1.5L turbo and 2.0L naturally aspirated engines. Note that the Si and Type R trims use a larger-diameter rotor and are not compatible with this part.

What sets this rotor apart from generic replacements is Brembo's Pillar Vented Technology (PVT), which replaces conventional vanes with a patented pillar design for superior heat dissipation and resistance to thermal cracking. Combined with a high-carbon cast iron alloy and full UV coating - including internal venting channels - this rotor delivers OE-level comfort with measurably better corrosion resistance and longevity. Installation is straightforward with the included hardware, and the precision-machined surface eliminates the need for break-in machining.
