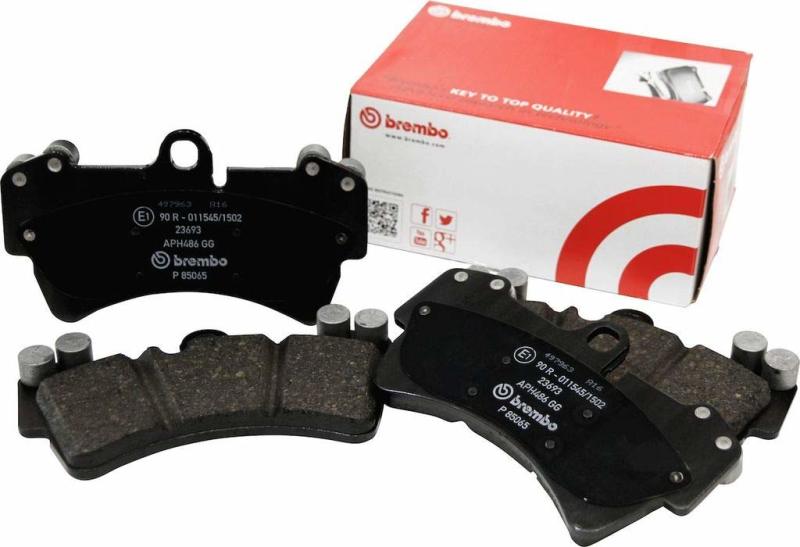

Brembo P11023N Ceramic Front Brake Pads for Chrysler 300 Dodge Charger Challenge

Vehicle Fitment

• 2005-2010 Chrysler 300 (LX, 3.5L V6 / 5.7L HEMI V8 / 6.1L SRT8 V8; RWD & AWD) - All trims (Base, Touring, C, C Touring, SRT8, Limited) with Brembo brake system - Front
• 2012-2020 Chrysler 300 (LD, 3.6L V6 / 5.7L HEMI V8; RWD & AWD) - All trims with Brembo brake system - Front
• 2006-2010 Dodge Charger (LX, 3.5L V6 / 5.7L HEMI V8 / 6.1L SRT8 V8; RWD) - All trims with Brembo brake system - Front
• 2012-2020 Dodge Charger (LD, 3.6L V6 / 5.7L HEMI V8 / 6.2L/6.4L SRT V8; RWD) - All trims with Brembo brake system - Front
• 2008-2020 Dodge Challenger (LC, 3.6L V6 / 5.7L HEMI V8 / 6.2L/6.4L SRT V8; RWD) - All trims with Brembo brake system - Front
• 2005-2008 Dodge Magnum (LX, 3.5L V6 / 5.7L HEMI V8 / 6.1L SRT8 V8; RWD & AWD) - All trims with Brembo brake system - Front
• 2007-2010 Jeep Grand Cherokee (WK, 6.1L SRT8 V8; 4WD) - SRT8 only, with Brembo 4-piston caliper - Front

Fitment Notes

• Front axle position only. Fits vehicles equipped with the Brembo 4-piston front caliper and 360mm x 26.5mm (14.17-inch) front disc only. Do not order for standard non-Brembo caliper variants of these platforms.
• On the Chrysler 300 and Dodge Charger, the Brembo front braking system was standard on SRT8 trims and available as factory equipment on select other trims. Verify your front rotor diameter (360mm) and caliper piston count before ordering.
• The Dodge Challenger shipped with Brembo front brakes across its range from 2008 onward; the front Brembo 4-piston caliper was standard across all trim levels, making P11023N a broad-coverage pad for Challenger front service.
• Jeep Grand Cherokee fitment applies to the SRT8 (WK) model years 2007-2010 only, which was the only Grand Cherokee variant with the Brembo 4-piston front caliper as factory equipment.
• Replaces OE Mopar/Chrysler/Dodge/Jeep Part Numbers: 68002193AA / 5174311AA / 5174311AB / 5174311AC / 68144213AA / 68144213AB.

Features

• Prime Ceramic (NAO) compound delivers low brake dust with the Brembo 4-piston front caliper - particularly valuable on the large alloy wheels standard across these LX/LC/WK platform vehicles.
• Chamfered pad edges and precision-slotted contact face reduce initial bite noise, improve heat evacuation, and promote consistent pad wear across the face of the Brembo 4-piston caliper's dual-pad opposing-piston design.
• Multi-layer "Brembo Red" ESE (Elastomer-Steel-Elastomer) anti-squeal shim is engineered to the Brembo 4-piston caliper's specific vibration frequency, preventing the resonant squeal that multi-piston fixed calipers can generate at cold start.
• Factory thermal scorch treatment eliminates break-in fade and shortens the bedding period - consistent friction output from the first stop after installation.
• OE Direct Moulding Pressing Process ensures dimensional accuracy to the Brembo 4-piston caliper's pad pocket, eliminating the NVH issues caused by pad-to-caliper dimensional mismatch.
• Engineered to the same OE friction specification originally developed for these platforms' Brembo-supplied front braking systems.
• Prepared for pad wear sensor - factory dashboard wear warning is fully retained without modification.
• Sold as a 2-wheel front set with all required installation hardware included.

Specifications

• Position: Front Axle
• Friction Material: Prime Ceramic (NAO)
• Pad Width: 141.5 mm
• Pad Height: 76.2 mm
• Nominal Thickness: 17.4 mm
• Braking System: Brembo 4-Piston (360mm x 26.5mm front disc)
• WVA: 24075
• FMSI: D1149 / 8259
• Prepared for Pad Wear Sensor: Yes
• UPC: 8020584083284
• OE Cross References: 68002193AA / 5174311AA / 5174311AB / 5174311AC / 68144213AA / 68144213AB

Included Components

• 1x Front Disc Brake Pad Set (both left and right pads, sold as a 2-wheel set)
• 1x Anti-squeal shim set
• 1x Installation hardware kit

Product Description

The Brembo P11023N is a Prime Ceramic Front Disc Brake Pad Set designed as a direct OE replacement for the Brembo 4-piston fixed front caliper used across the LX/LC/WK Stellantis performance platform. It covers the Chrysler 300, Dodge Charger, Dodge Challenger, Dodge Magnum, and Jeep Grand Cherokee SRT8 - all vehicles that share the same Brembo 360mm front brake architecture as factory equipment on qualifying trim levels. The pad replaces six Mopar OE part numbers and uses the same NAO ceramic friction specification that Brembo and Chrysler's engineers developed for this caliper platform in OE production.

The chamfered and slotted pad geometry works specifically with the 4-piston caliper's opposing piston design, promoting even wear across both inboard and outboard pad faces and facilitating heat dissipation under the sustained front-axle braking loads typical of these rear-wheel-drive performance vehicles. The multi-layer ESE anti-squeal shim is tuned to the Brembo 4-piston caliper's specific resonance characteristics, suppressing the cold-start squeal that multi-piston fixed calipers are prone to with improperly specified pads. Brembo's thermal scorch treatment ensures the friction material is stabilized before installation, minimizing the break-in sensitivity common in high-performance front brake service.

Fitment is restricted to the 360mm x 26.5mm front disc / Brembo 4-piston caliper configuration. On the Chrysler 300 and Dodge Charger, this system was standard on SRT variants and available on select other trims - verify your front rotor diameter before ordering. On the Dodge Challenger, the Brembo front brake system was standard across all trim levels from 2008 through 2020, making P11023N applicable to the full Challenger range. On the Jeep Grand Cherokee, only the SRT8 (2007-2010) is confirmed.
