Brembo 59.E114.22 Sport TY3 Slotted Front Rotor for 05-17 Subaru WRX STI EJ257

Vehicle Fitment

• 2005-2007 Subaru Impreza WRX STI (GD) - EJ257 2.5L Turbo Flat-4 AWD
• 2008-2014 Subaru Impreza WRX STI (GR/GV) - EJ257 2.5L Turbo Flat-4 AWD
• 2015-2017 Subaru WRX STI (VA) - EJ257 2.5L Turbo Flat-4 AWD

Fitment Notes

• Front axle only; fits vehicles with factory Brembo 4-piston front calipers
• Does NOT fit 2004 STI (different rotor specification)
• Does NOT fit 2018+ STI (upgraded to 6-piston Brembo calipers with larger rotors)
• Does NOT fit base WRX unless upgraded to STI Brembo calipers
• 05-07 STI uses 5x100 bolt pattern; 08-17 STI uses 5x114.3
• Rotor is hub-centric and fits both bolt patterns via centering bore
• Discontinued by Brembo; replaced by 09.7812.2S (Xtra Sport line)
• Matching rear TY3 rotors: 59.E114.24 (05-07) / 59.E115.74 (08-17)
• Sold individually; order quantity of 2 for a complete front pair

Features

• Brembo Sport TY3 Type-3 slotted braking surface
• Motorsport-derived slot pattern for superior initial bite and release
• Brembo logo engraved on braking surface for distinctive appearance
• Direct OE plug-and-play replacement; no modifications required
• ECE-R90 certified for road use
• OE-equivalent Brembo casting quality and dimensional accuracy

Specifications

• Position: Front
• Diameter: 326mm (12.83")
• Thickness: 30mm (nominal) / 28.5mm (minimum)
• Height: 53mm
• Centering bore: 58mm
• Mounting holes: 5
• Disc type: Vented (solid face with TY3 slots)
• Surface: Type-3 slotted with Brembo logo
• Tightening torque: 100 Nm
• UPC: 8020584604939
• Sold individually

Included Components

• Sport TY3 slotted front brake rotor (1)

Product Description

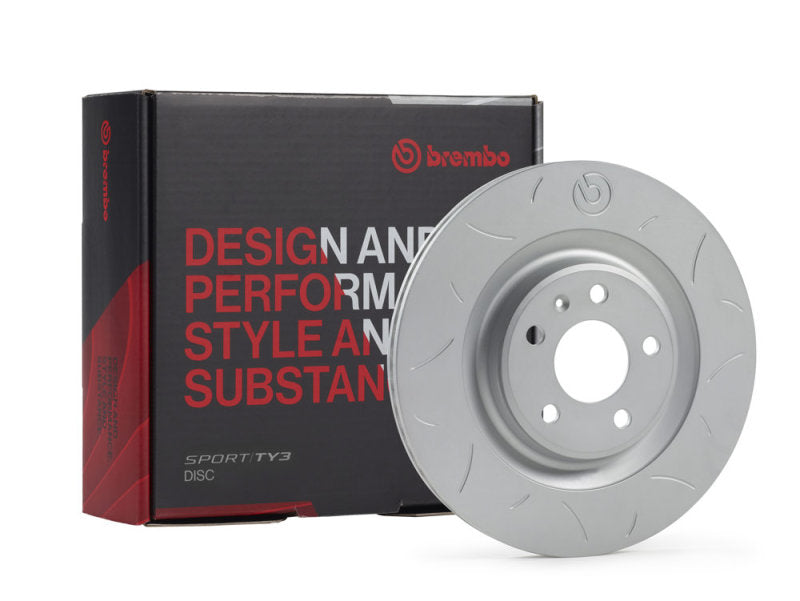

The Brembo 59.E114.22 is a Sport TY3 slotted front brake rotor sized at 326x30mm for the 2005-2017 Subaru WRX STI equipped with factory Brembo 4-piston front calipers. The Type-3 slot pattern is derived directly from Brembo's professional motorsport designs, delivering improved initial bite and consistent pad release characteristics over smooth OE rotors. The slots continuously clean the pad surface and channel gases away from the friction interface, reducing fade under repeated hard braking. As a direct plug-and-play replacement for the factory front rotor, no brackets, adapters, or modifications are needed. The Brembo logo engraved into the braking surface adds a distinctive visual touch visible through open-spoke wheels. This part has been discontinued by Brembo and replaced by the updated 09.7812.2S under the Xtra Sport line, which carries forward the same slotted design philosophy. Sold individually; two rotors are required for a complete front set.
