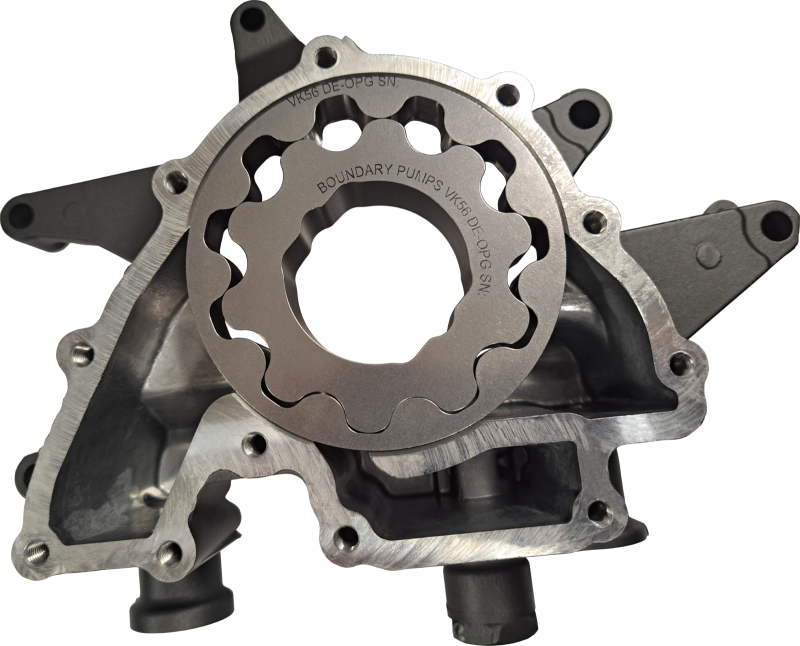

Boundary VK56-S1 Stage 1 Billet Oil Pump Assembly for Nissan VK56DE 5.6L V8

Vehicle Fitment

• 2004-2015 Nissan Titan (VK56DE, 5.6L V8)
• 2004-2015 Nissan Armada (VK56DE, 5.6L V8)
• 2004-2012 Nissan Pathfinder (VK56DE, 5.6L V8 - V8 models only)
• 2004-2010 Infiniti QX56 (VK56DE, 5.6L V8)
• 2012-2016 Nissan NV2500 HD (VK56DE, 5.6L V8)
• 2012-2016 Nissan NV3500 HD (VK56DE, 5.6L V8)
• 2012-2016 Nissan NV Passenger (VK56DE, 5.6L V8)
• 2010-2016 Nissan Patrol (VK56DE, 5.6L V8 - international market)

Fitment Notes

• Fits the Nissan VK56DE engine only - does not fit the VK56VD (direct injection / VVEL variant found in 2010+ Infiniti QX56/QX80, 2017+ Nissan Armada, and related applications)
• For the 2004-2012 Nissan Pathfinder, fitment applies to V8 5.6L models only - the V6 Pathfinder uses a different engine and oil pump
• Shim options allow oil pressure increases of +7 PSI (1 shim), +14 PSI (2 shims), or +21 PSI (3 shims) above stock - shim quantity must be specified at time of order
• Each assembly is issued with a specification sheet confirming dimensions and blueprinting details
• Backed by Boundary's lifetime warranty
• For the MartenWear-treated version with additional surface hardening, see Boundary VK56-S1-M
• Made in the USA - manufactured in Dallas, TX

Features

• Mirror-finished billet steel gear set - Boundary's industry-leading finish reduces friction and wear at the gear mesh for superior longevity and efficiency
• Flow-tested to 12,000 RPM - capable of supporting engine builds far beyond the factory power range without oil starvation
• Complete assembly process: pump is fully disassembled, all parts undergo ultrasonic cleaning, air blast, and hand inspection before rebuild
• Hand de-burred to eliminate internal rough spots that can impede oil flow or generate debris
• Stainless Torx head fasteners replace OEM fasteners for improved corrosion resistance and consistent torque retention
• All fasteners torqued to spec with Loctite applied to prevent back-out or loosening under engine vibration
• Anaerobic sealant applied to critical areas to boost pump prime speed on startup and reduce aeration in the oil system
• Assembly lubricant applied to all critical surfaces to ensure oil flow immediately on first startup - reduces dry-start risk
• Parts blueprinted and issued with a specification sheet - documented dimensional accuracy for each individual assembly
• Adjustable oil pressure via shim stack - 1, 2, or 3 shims provide +7, +14, or +21 PSI over stock pressure respectively
• 2 US Patents covering the design and manufacturing process
• Lifetime warranty

Specifications

• Engine Application: Nissan VK56DE, 5.6L V8 (DOHC, 32-valve)
• Gear Material: Billet steel, mirror-finished
• Fasteners: Stainless Torx head (replaces OEM)
• Pressure Adjustment: Shim-adjustable - +7 PSI (1 shim), +14 PSI (2 shims), +21 PSI (3 shims)
• Tested To: 12,000 RPM
• Manufacturing Location: Dallas, TX, USA
• Patents: 2 US Patents
• Warranty: Lifetime
• Quantity: 1 complete oil pump assembly

Included Components

• 1x Fully assembled Boundary VK56-S1 Stage 1 Billet Oil Pump Assembly
• Specification sheet with blueprinting documentation
• Shims (quantity per customer's selected pressure upgrade)

Product Description

The Boundary VK56-S1 is a Stage 1 billet oil pump assembly engineered for the Nissan VK56DE 5.6L V8 engine - the powerplant found in the Nissan Titan, Armada, Pathfinder V8, Infiniti QX56, and NV commercial van line. The factory oil pump in these engines uses cast gear sets with standard tolerance assembly - adequate for stock operation but increasingly limiting as power levels, RPM, and build specifications increase. High-output builds and high-mileage engines demanding reliable oil pressure under all operating conditions benefit significantly from a pump that is built to tighter tolerances, flow-tested at speed, and assembled with the same discipline applied to race engine components. That is precisely what the Boundary VK56-S1 delivers.

Every unit begins with Boundary's mirror-finished billet steel gear set - their most recognized and competitive feature in the oil pump market. Before assembly, all components are completely disassembled from the OEM housing, ultrasonically cleaned, air-blasted, and individually hand-inspected. Each piece is hand de-burred, then reassembled using stainless Torx head fasteners (replacing the OEM steel fasteners), all torqued to specification with Loctite applied to prevent back-out. Anaerobic sealant is applied to critical sealing surfaces to accelerate pump prime speed on startup and reduce aeration, and assembly lubricant is applied to all critical contact surfaces to ensure oil flow immediately at first start. The completed assembly is flow-tested to 12,000 RPM before shipment and issued with a specification sheet documenting the pump's blueprinted dimensions.

The VK56-S1 also features Boundary's shim-adjustable pressure system, allowing the builder to increase oil pressure above the factory set point in increments of +7 PSI per shim - useful for high-performance builds, forced induction applications, or engines running looser main and rod bearing clearances that demand higher oil volume and pressure at the bearings. The VK56-S1 is backed by a lifetime warranty and is protected by 2 US Patents. For builders who want additional surface hardening on the gear set, Boundary offers the VK56-S1-M with MartenWear treatment. Both are manufactured in Boundary's Dallas, TX facility.
