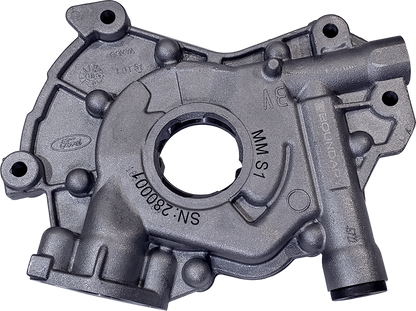

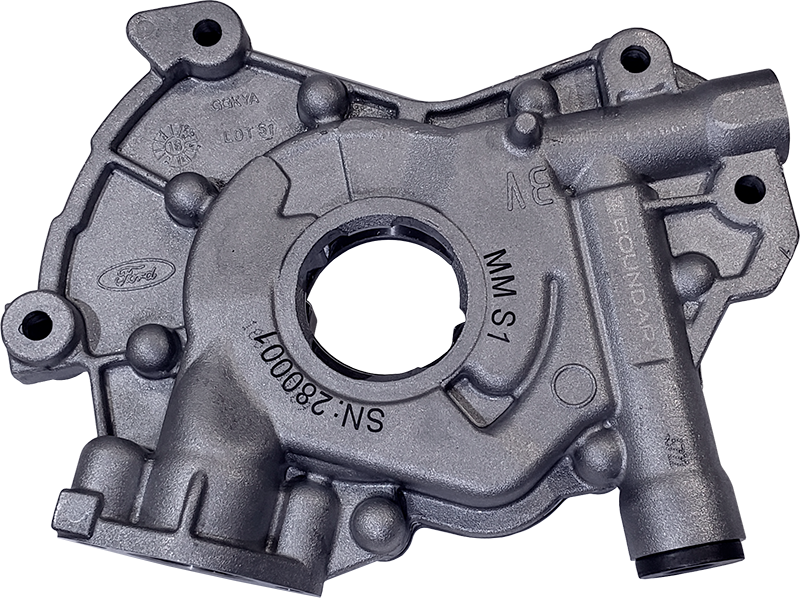

Boundary MM-S1 Stage 1 3V Billet Oil Pump Assembly for Ford 4.6L/5.4L Modular

Vehicle Fitment

• 1996-2004 Ford Mustang SVT Cobra, 4.6L V8
• 1996-2010 Ford Mustang GT, 4.6L V8
• 1997-2010 Ford F-150, 5.4L V8
• 1999-2010 Ford F-250 Super Duty, 5.4L V8
• 1999-2010 Ford F-350 Super Duty, 5.4L V8
• 2005-2014 Ford Expedition, 5.4L V8

Fitment Notes

• Fits all Ford Modular V8 4.6L/5.4L engines except 6.2L
• For vehicles using 15/16in pickup tube
• Bolt-on installation, no additional machining required

Features

• 3V housing, largest available pump gears

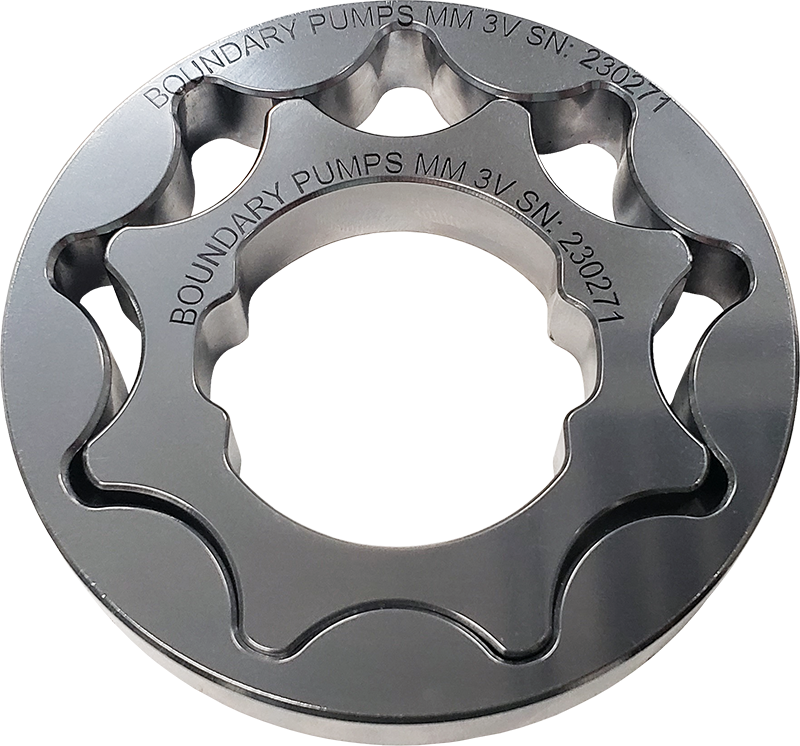

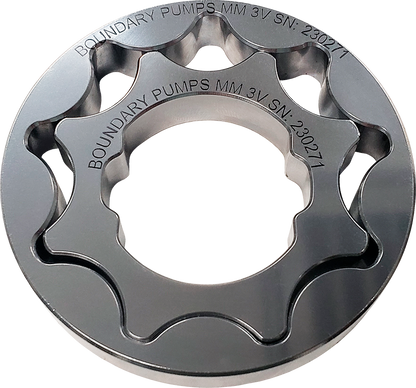

• Mirror-finished billet gear set
• Precision-machined O-ring groove on pump mounting face
• Stainless Torx head fasteners
• Fasteners torqued to spec with Loctite applied
• Anaerobic sealant on critical areas
• Assembly lubricant pre-applied
• Blueprinted with specification sheet included
• Plug-and-play, bolt-on installation
• Lifetime warranty

Specifications

• Housing type: 3V
• Gear material: Billet steel, mirror finish

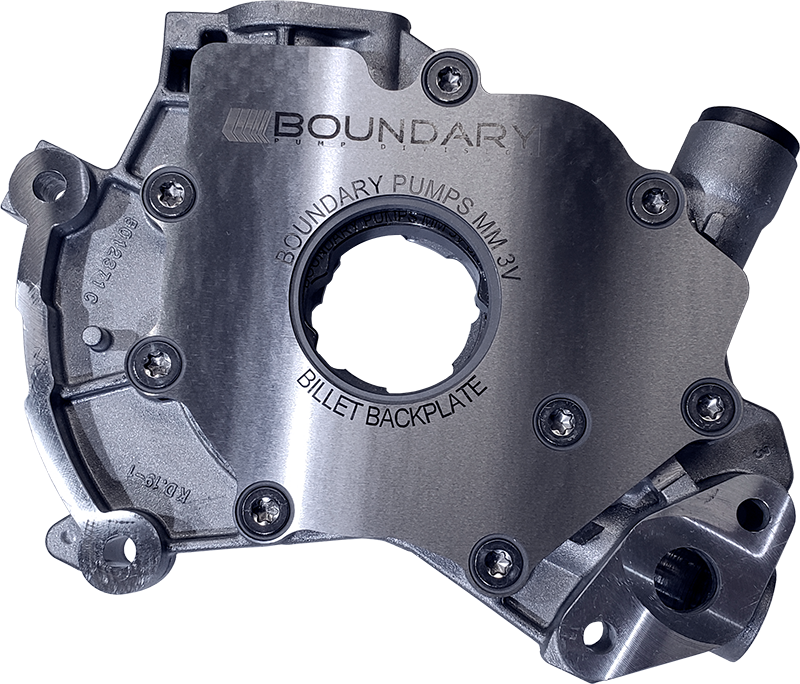

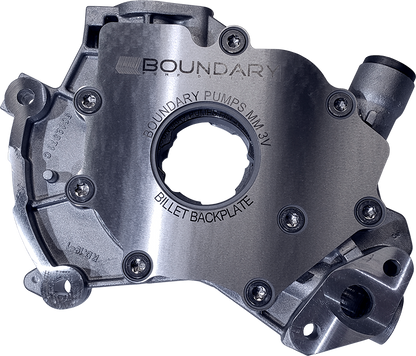

• Back plate options: OEM aluminum, billet steel, anti-cavitation
• Treatment options: No treatment, MartenWear
• Weight: 3 lbs
• Dimensions: 10in x 6in x 1in

Included Components

• 1x Assembled oil pump
• Specification sheet

Product Description

The Boundary MM-S1 is a Stage 1 assembled oil pump built on the larger-volume 3V housing for the Ford Modular V8, engineered for the 4.6L and 5.4L platforms across the Mustang GT, Mustang SVT Cobra, F-150, F-250/F-350 Super Duty, and Expedition (excluding 6.2L applications). The 3V housing includes the largest available pump gears of any Modular pump option, providing a genuine boost in mid-range and low-end engine protection along with added strength from the larger gear set.

Every pump is completely disassembled, ultrasonically cleaned, air blasted, and hand inspected before being hand de-burred and rebuilt with Boundary's industry-leading mirror-finished billet gear set. Stainless Torx head fasteners replace the stock hardware, torqued to spec with Loctite applied to prevent back-out, and anaerobic sealant is applied to critical areas to boost pump-up speed and reduce aeration. A precision-machined O-ring groove on the pump mounting face delivers a positive seal between the pump and engine block, reducing leak risk and improving sealing under higher oil pressure.

This pump is intended for Modular V8 owners running the 15/16ths pickup tube who want a genuine, machined-in-the-USA upgrade over the factory pump. It bolts on and requires no additional lubrication or modification; parts are blueprinted and shipped with a specification sheet, and the pump is backed by Boundary's lifetime warranty.
