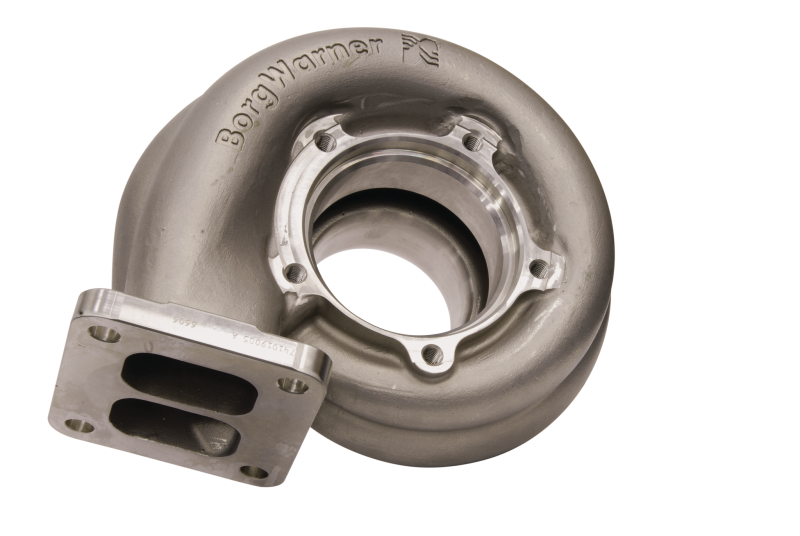

BorgWarner 12801008006 EFR 9180 B2 80mm 1.45 A/R T4 Twin Scroll H-Type Turbine

Vehicle Fitment

• Universal Fit

Features

• 80mm turbine wheel diameter for high-flow applications
• 1.45 A/R turbine housing for balanced spool and top-end power
• T4 twin-scroll inlet for improved exhaust gas energy utilization
• Non-wastegated design for custom external wastegate setups
• Constructed from durable stainless steel for enhanced heat resistance
• Compatible with BorgWarner EFR 9180 turbocharger
• Designed for high-performance and motorsport applications
• Supports up to 1000 horsepower for extreme performance builds

Specifications

• Turbine Wheel Diameter: 80mm
• Aspect Ratio: 1.45 A/R
• Inlet Flange: T4 Twin Scroll
• Wastegate: None (requires external wastegate)
• Material: Stainless Steel
• Turbo Frame Size: B2
• Maximum Horsepower: 1000 HP
• Weight: Approximately 4.9 kg

Included Components

• 1x BorgWarner 12801008006 Turbine Housing
• 1x Gasket for T4 Inlet Flange
• 1x Hardware Kit for Installation

Product Description

The BorgWarner 12801008006 EFR 9180 B2 80mm 1.45 A/R T4 Twin Scroll H-Type Turbine Housing is engineered for high-performance applications requiring substantial airflow and rapid spool characteristics. With an 80mm turbine wheel and 1.45 A/R ratio, this housing strikes a balance between quick spool and top-end power, making it ideal for builds aiming for up to 1000 horsepower.

Featuring a T4 twin-scroll inlet, the design optimizes exhaust gas energy, reducing turbo lag and enhancing overall engine responsiveness. The non-wastegated configuration allows for the integration of an external wastegate, providing tuners with flexibility in boost control strategies. Constructed from high-quality stainless steel, the housing offers superior durability and resistance to thermal stress, ensuring longevity in demanding conditions.

Compatible with the BorgWarner EFR 9180 turbocharger, this turbine housing is suitable for a wide range of custom turbocharger setups. Whether you're building a track-focused race car or a high-performance street machine, the BorgWarner 12801008006 turbine housing provides the reliability and performance needed to achieve your power goals.
