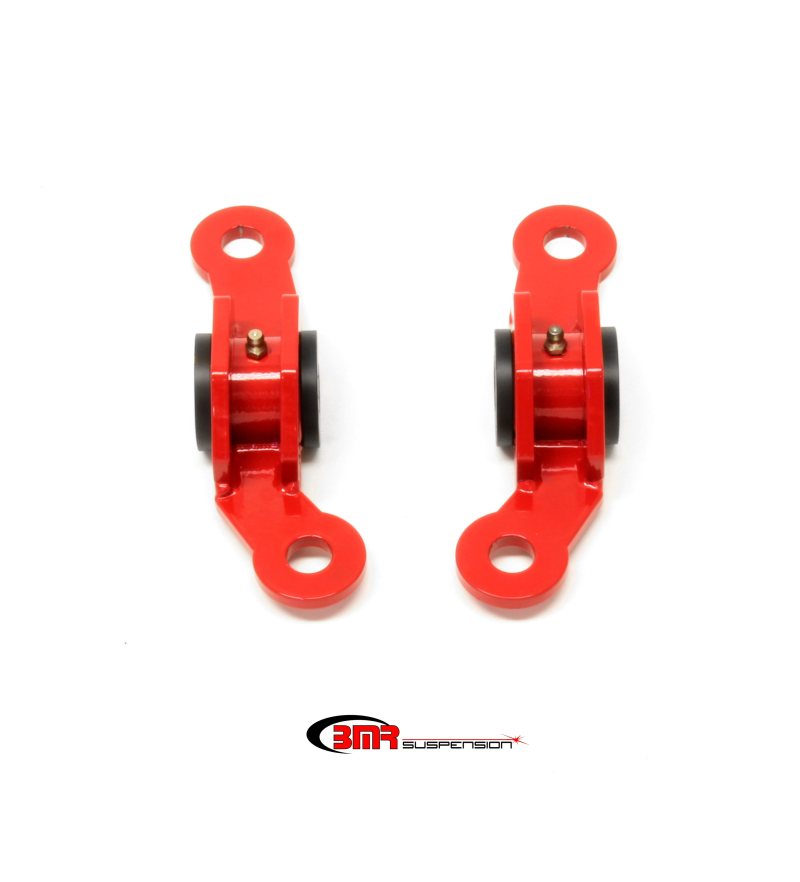

BMR BK039R Rear Upper Control Arm Delrin Bushing Kit for 10-15 Chevy Camaro/G8

Vehicle Fitment

• 2010-2015 Chevy Camaro (All Trims, V6 / V8 -- LS3, LS7, LSA, LT1)
• 2008-2009 Pontiac G8 (All Trims)

Fitment Notes

• Replaces rear upper control arm (A-arm) outer bushing and saddle only
• Does NOT replace inner upper control arm bushing -- use BMR BK017 for inner bushing
• Compatible with V6 and V8 engine configurations -- engine type does not affect fitment
• Black hammertone version: BMR BK039H
• BMR does not warranty fitment with non-OEM or non-BMR suspension components
• Installation time: approximately 2-3 hours

Features

• CNC-machined Delrin (acetal) bushings
• Eliminates factory rubber bushing deflection
• Reduces spindle movement and dynamic rear alignment changes
• Reduces wheelhop and improves traction consistency
• Internally fluted design for efficient bushing lubrication
• External grease fittings with internal grease passages
• 7075 aluminum sleeves
• Fully TIG-welded saddle assembly
• No drilling required
• Red powdercoat finish
• Made in the USA

Specifications

• Part Number: BK039R
• Position: Rear Upper Control Arm (A-arm) -- Outer Bushing and Saddle
• Bushing Material: Delrin (acetal)
• Sleeve Material: 7075 aluminum
• Saddle Construction: Fully TIG-welded
• Greasable: Yes -- external fittings with internal passages
• Finish: Red powdercoat
• Hardware: Zinc-coated
• Country of Origin: USA

Included Components

• 2x CNC-machined Delrin outer bushings
• 2x 7075 aluminum sleeves
• 1x TIG-welded saddle assembly
• Grease fittings and hardware

Product Description

The BMR BK039R is a rear upper control arm Delrin bushing kit for the 2010-2015 Chevy Camaro and 2008-2009 Pontiac G8. The factory rear upper A-arm uses a bearing at the front pivot and a large rubber bushing at the rear -- that rubber bushing is the primary source of unwanted spindle movement, which bleeds power to the tires, causes inconsistent braking behavior, and contributes to wheelhop under acceleration. BMR eliminates this entirely by replacing the factory outer bushing and its saddle assembly with CNC-machined Delrin bushings and a fully TIG-welded steel saddle, removing deflection without adding harshness or noise.

The Delrin bushings are internally fluted with grease passages fed by an external fitting, ensuring consistent lubrication across the bushing thrust surface for long service life. 7075 aluminum sleeves complete the assembly. This kit replaces the outer bushing and saddle only -- the inner upper control arm bushing is a separate component covered by BMR BK017. Available in black hammertone (BK039H). No drilling required. Installation takes approximately 2-3 hours. Proudly designed and manufactured in the USA at BMR's facility near Tampa, Florida.
