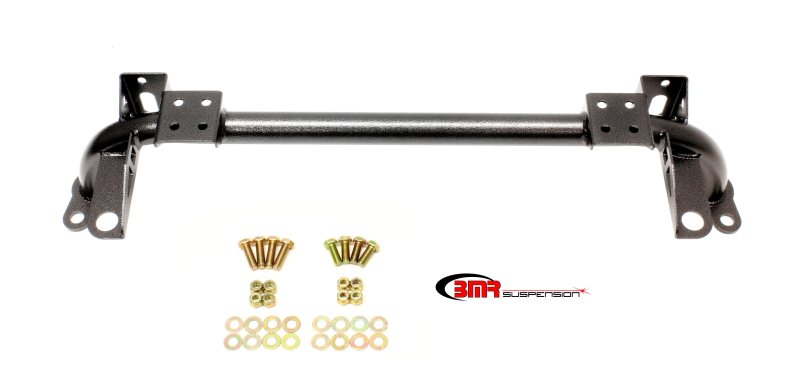

BMR RS003H Tubular Radiator Support with Sway Bar Mounts 05-14 Ford Mustang S197

Vehicle Fitment

• 2005-2014 Ford Mustang V6
• 2005-2014 Ford Mustang GT
• 2008-2009 Ford Mustang Bullitt
• 2012-2013 Ford Mustang BOSS 302
• 2007-2014 Ford Mustang Shelby GT500

Fitment Notes

• Direct replacement for factory S197 radiator support
• Retains factory front sway bar mounting provisions
• Compatible with 2011+ front chassis brace
• When used with BMR tubular K-member and CB004 chassis brace, 2005-2010 cars can be upgraded to 2011 chassis specs
• Uses factory OE mounting hardware
• Pairs with BMR CB004 chassis brace for complete front-end upgrade

Features

• Tubular steel construction replaces heavy stamped steel factory support
• Approximately 10 lbs lighter than OE radiator support
• Heavy-duty sway bar mounting provisions retain front anti-roll capability
• TIG-welded 1-5/8" diameter DOM steel tubing for superior strength
• 1/4" laser-cut steel mounting plates for OE-comparable rigidity
• Black hammertone powdercoat finish for corrosion resistance
• Improved front weight percentage for better handling and acceleration
• 100% bolt-on installation--no welding, drilling, or cutting required
• Ideal for street performance, drag racing, and road course applications

Specifications

• Part Number: RS003H
• Brand: BMR Suspension
• Product Type: Tubular Radiator Support
• Sway Bar Mounts: Included
• Chassis Brace Compatible: Yes (2011+ Style)
• Material: DOM Steel Tubing
• Tubing Diameter: 1-5/8 in
• Mounting Plate Thickness: 1/4 in
• Construction: TIG Welded
• Weight: Approx. 6 lbs
• OE Weight: Approx. 16.5 lbs
• Weight Savings: Approx. 10 lbs
• Finish: Black Hammertone Powdercoat
• Installation Type: Bolt-On
• Installation Time: 1-2 Hours
• Country of Origin: Made in U.S.A.

Included Components

• (1) BMR Tubular Radiator Support with Integrated Sway Bar Mounts
• Installation Instructions

Product Description

The BMR RS003H Tubular Radiator Support is a lightweight, high-strength replacement for the heavy factory stamped steel radiator support found on 2005-2014 Ford Mustang S197 platforms. Designed for enthusiasts who want to reduce front-end weight without sacrificing sway bar functionality, this support saves approximately 10 pounds over the factory unit while providing heavy-duty mounting provisions for the front sway bar and the 2011+ style front chassis brace. Constructed from TIG-welded 1-5/8" diameter DOM steel tubing and 1/4" laser-cut mounting plates, the RS003H delivers OE-comparable strength with race-comparable weight. The tubular design improves front weight percentage, which translates to better weight transfer during acceleration and improved overall handling dynamics. This support is ideal for street performance builds, drag racing applications, and road course setups where both weight reduction and sway bar retention are priorities. Installation is straightforward with 100% bolt-on fitment using the factory mounting hardware--no welding, drilling, or cutting required. When combined with BMR's tubular K-member and CB004 chassis brace, 2005-2010 Mustangs can be upgraded to 2011 chassis specifications for enhanced structural rigidity. Finished in durable black hammertone powdercoat for long-lasting corrosion protection and aggressive styling. Proudly designed and manufactured in the U.S.A.
