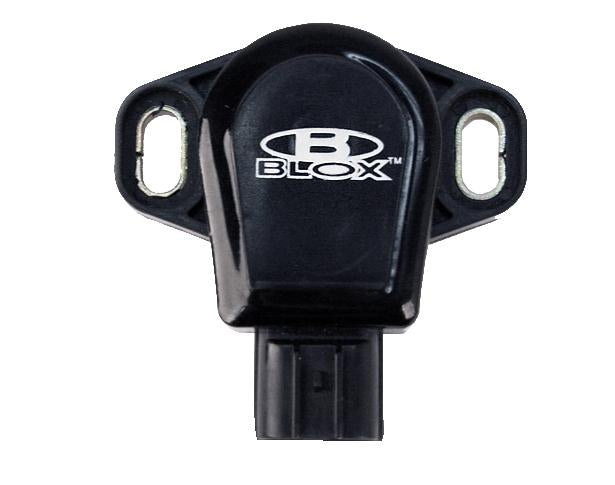

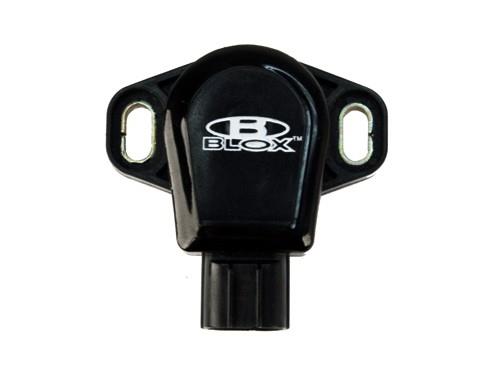

BLOX Racing BXIM-10401 TPS 2002-2006 Acura RSX Type-S Honda Civic Si EP3 K-Serie

Vehicle Fitment

• 2002-2006 Acura RSX Type-S (DC5 - K20A2, K20Z1)
• 2002-2005 Honda Civic Si (EP3 - K20A3)

Fitment Notes

• Fits the K-series throttle body used on the RSX Type-S and EP3 Civic Si. Not compatible with RSX Base (K20A3 non-Si) or other Honda/Acura models using different throttle body configurations.
• The TPS is internally clocked differently for each vehicle application. Confirm your exact vehicle (RSX Type-S vs. Civic Si) and model year before ordering to ensure the correct clocking orientation is supplied. Installing a TPS with incorrect clocking will cause drivability and ECU issues.
• Compatible with both the OEM K-series throttle body and BLOX Racing 70mm and 72mm billet throttle bodies.
• Not available for Honda models with single-point ignition systems.
• A gasket is included - the gasket between the TPS and throttle body should be replaced any time the TPS is removed.
• A Version 2 (BXIM-10401-V2) is also available, adding a billet aluminum protective casing over the TPS body for additional protection from engine grime, debris, and vibration.

Features

• BLOX Racing throttle position sensor (TPS) for the 2002-2006 Acura RSX Type-S and 2002-2005 Honda Civic Si - a brand-new replacement TPS for the K-series throttle body. The TPS is a potentiometer that signals the ECU with a variable voltage output corresponding to throttle plate angle; a failing or failed TPS causes erratic idle, poor throttle response, hesitation, and incorrect fuel trims. BLOX Racing's TPS provides an economical new-unit alternative to purchasing a complete OEM throttle body assembly or sourcing a used unit.
• Brand new unit - not remanufactured or rebuilt. Provides a known-good baseline at installation without the uncertainty of a used sensor's condition or mileage.
• Gasket included - the TPS-to-throttle-body sealing gasket is included, eliminating the need to source it separately.
• Compatible with BLOX Racing 70mm and 72mm billet throttle bodies in addition to the OEM K-series unit - useful for builds where the OEM throttle body has been replaced with a BLOX Racing upgrade.
• Manufactured to ISO 9001 certified standards.

Specifications

• Part Number: BXIM-10401
• Product Type: Throttle Position Sensor (TPS)
• Sensor Type: Potentiometer (variable resistance)
• Engine Compatibility: Honda K20A2, K20Z1, K20A3 (K-series throttle body)
• Throttle Body Compatibility: OEM K-series, BLOX Racing 70mm Billet, BLOX Racing 72mm Billet
• Condition: Brand New
• Gasket Included: Yes

Included Components

• 1x BLOX Racing Throttle Position Sensor (TPS) - BXIM-10401
• 1x TPS Sealing Gasket

Product Description

The BLOX Racing BXIM-10401 is a brand-new replacement throttle position sensor (TPS) for the 2002-2006 Acura RSX Type-S and 2002-2005 Honda Civic Si (EP3), both using Honda's K-series engine family. The TPS is a potentiometer mounted to the throttle body that communicates throttle plate position to the ECU via variable voltage output. Failure or degradation of the TPS results in drivability symptoms including erratic idle, hesitation, throttle response issues, and improper fuel trims.

BLOX Racing's TPS offers a brand-new replacement at a lower cost than purchasing a complete OEM throttle body assembly, without the unknown condition of a junkyard unit. A replacement gasket is included. The sensor is compatible with the OEM K-series throttle body as well as BLOX Racing's 70mm and 72mm billet throttle body upgrades. Important: the TPS is internally clocked differently for the RSX Type-S and Civic Si applications - confirm your exact vehicle before ordering. A Version 2 (BXIM-10401-V2) is also available with a billet aluminum protective casing for additional sensor protection in high-vibration or dirty engine bay environments.
