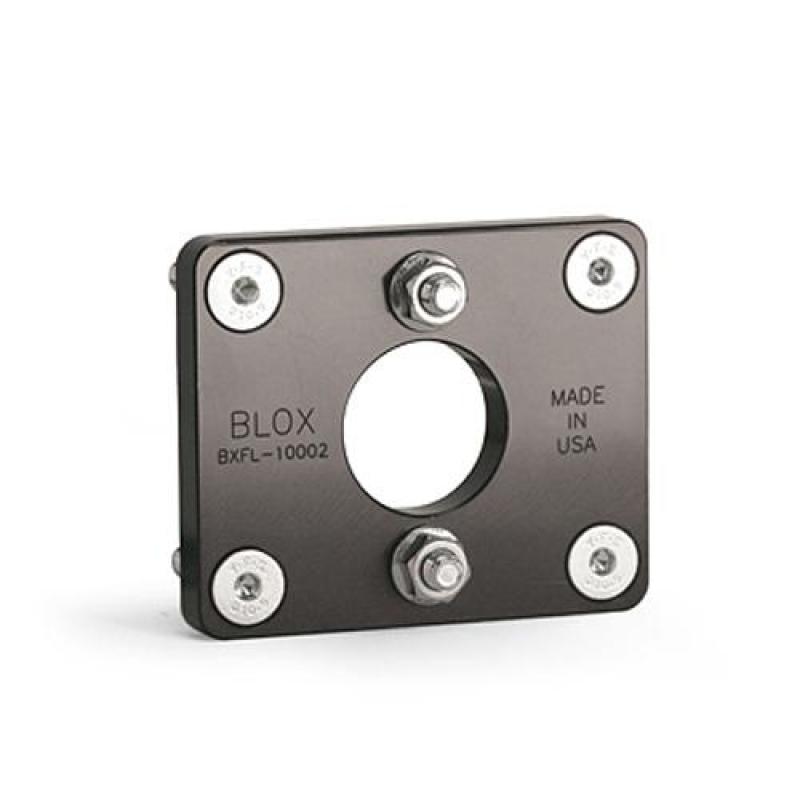

BLOX Racing BXFL-10002-BK Brake Booster Elimi-Plate Black Honda Civic Integra

Vehicle Fitment

• 1988-2000 Honda Civic (EF, EG, EK)
• 1990-1997 Honda Del Sol
• 1994-2001 Acura Integra (DC, non Type-R)

Fitment Notes

• Replaces the OEM brake booster and master cylinder mounting location on the firewall. Allows fitment of a compact aftermarket brake master cylinder directly to the firewall without a brake booster.
• Compatible with the BLOX Racing brake master cylinder (BXFL-10012), as well as compact aftermarket units such as Wilwood and Tilton. Master cylinder is not included - sold separately.
• Intended for race, track, and engine-bay build applications where the OEM brake booster is being removed. Eliminating the brake booster removes vacuum-assisted braking - pedal effort will increase significantly. Installation by a qualified brake system specialist is strongly recommended.
• Stainless steel mounting hardware is included. No additional hardware required for plate installation.
• Made in the USA.

Features

• BLOX Racing Brake Booster Elimi-Plate - a billet AL6061 aluminum firewall plate that fills the brake booster mounting location after the OEM brake booster and master cylinder are removed, enabling a clean engine bay presentation as part of a brake line tuck build and allowing the installation of a compact aftermarket master cylinder directly to the firewall.
• Billet AL6061 aluminum construction - lightweight and rigid, anodized black for corrosion resistance and a clean finished appearance in the engine bay.
• Flush-mounted bolt holes - hardware sits flush with the plate surface, eliminating protruding fastener heads for a cleaner finished look.
• Stainless steel mounting hardware included - no sourcing of additional fasteners required.
• Serves dual purposes: engine bay aesthetics (brake line tuck builds) and performance weight reduction (elimination of the brake booster and associated vacuum lines and hardware).
• Manufactured in the USA to ISO 9001 certified standards.

Specifications

• Part Number: BXFL-10002-BK
• Color/Finish: Black Anodized
• Material: Billet AL6061 Aluminum
• Overall Dimensions: 4.0" L x 3.25" H x 0.47" W
• Bolt Holes: Flush Mounted
• Hardware: Stainless Steel (included)
• Master Cylinder Included: No
• Compatible Master Cylinder: BLOX BXFL-10012, Wilwood, Tilton (compact units)
• Country of Origin: USA

Included Components

• 1x BLOX Racing Brake Booster Elimi-Plate (Black Anodized)
• Stainless Steel Mounting Hardware

Product Description

The BLOX Racing BXFL-10002-BK is a black anodized billet AL6061 aluminum brake booster eliminator plate for the 1988-2000 Honda Civic, 1990-1997 Honda Del Sol, and 1994-2001 Acura Integra. It mounts to the firewall in place of the OEM brake booster and master cylinder assembly, filling the opening cleanly while providing a mounting surface for a compact aftermarket master cylinder such as the BLOX Racing BXFL-10012, Wilwood, or Tilton unit.

The Elimi-Plate is used in two primary contexts: engine bay build aesthetics, where removing the brake booster and tucking the brake lines behind the firewall creates a cleaner underhood appearance; and race or track builds, where eliminating the brake booster and associated components reduces weight and simplifies the brake system. Flush-mounted bolt holes keep the surface profile clean, and stainless steel hardware is included. Removing the brake booster eliminates vacuum-assisted braking and substantially increases pedal effort - installation should be performed by a qualified brake system professional. Master cylinder is not included.
