BLOX BXSS-20603 Subframe Hard Collar Kit Honda Civic/Acura RSX/Fit EP3 DC5 02-11

Vehicle Fitment

• 2002-2005 Honda Civic Si Hatchback (EP3, K20A3 2.0L DOHC i-VTEC, FWD)
• 2006-2011 Honda Civic Coupe (FG1/FG2, All Trims - DX, LX, EX, Si, All Engines, FWD)
• 2006-2011 Honda Civic Sedan (FD, All Trims - DX, LX, LX-S, EX, EX-L, GX, Hybrid, All Engines, FWD)
• 2002-2006 Acura RSX (DC5, Base and Type-S, 2.0L K20A2/K20Z1, FWD)
• 2007-2008 Honda Fit (GD3, All Trims, FWD)

Fitment Notes

• Designed as a direct fit for the front subframe mounting points on all listed chassis - no drilling or cutting required
• Installation instructions are available on BLOX Racing's website; instructions are not included in the kit
• An alignment is recommended after installation
• Collar orientation varies by chassis - verify FD1-FD4 placement per the installation guide for your specific vehicle

Features

• Eliminates play between the chassis and front subframe for immediate improvements in suspension precision and vehicle stability
• CNC-machined billet aluminum construction for precise fitment and superior strength over factory rubber subframe bushings
• Reduces subframe movement under hard cornering, braking, and engine/suspension loads
• Improves alignment consistency and steering feel by fixing the subframe in a precise, repeatable position
• Easy bolt-on installation - subframe must be dropped for access but no modifications are required
• Manufactured to ISO 9001 quality standards

Specifications

• Part Number: BXSS-20603
• Material: CNC-Machined Billet Aluminum
• Position: Front Subframe Mounting Points
• Drivetrain: FWD
• Kit Contents: 4x Hard Collars (FD1, FD2, FD3, FD4) sized per chassis application

Included Components

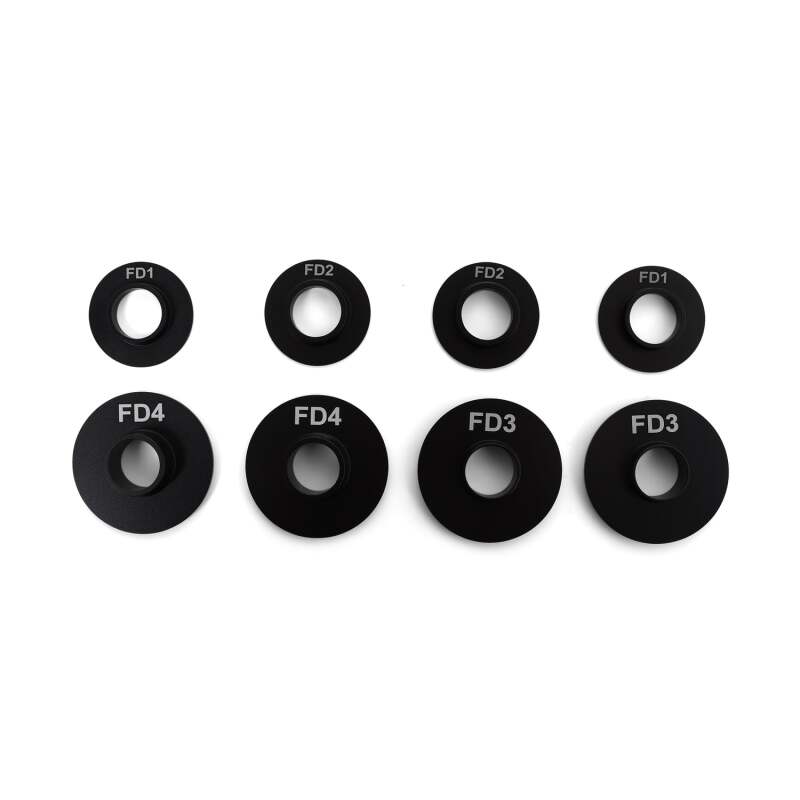

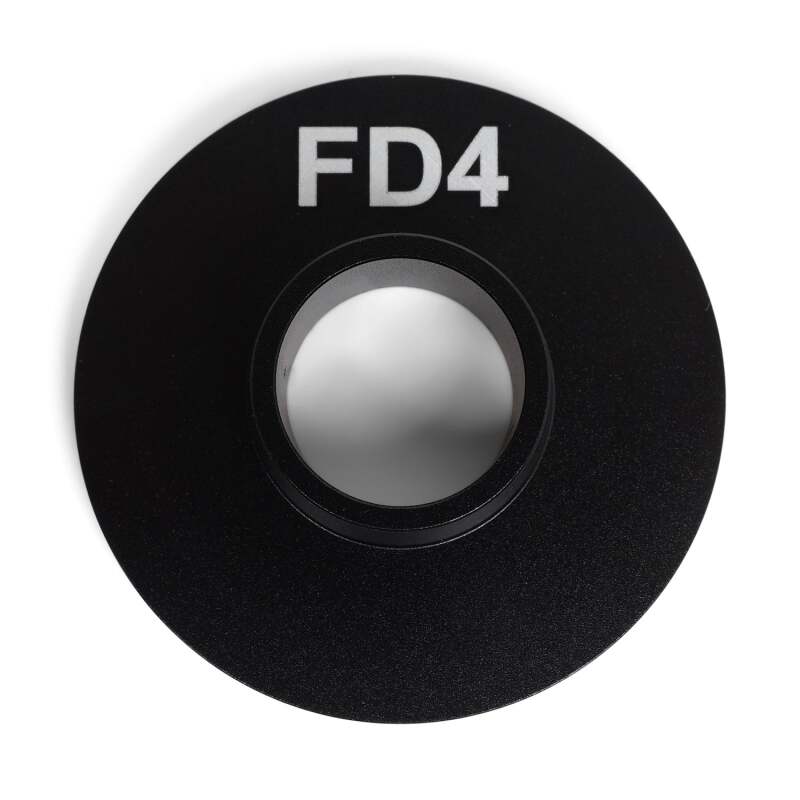

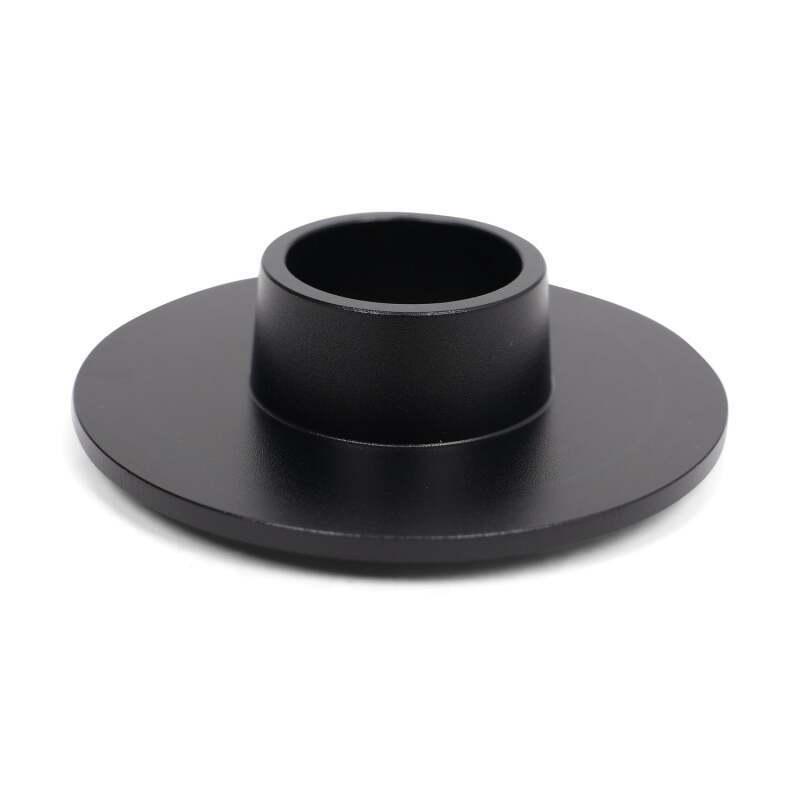

• 4x CNC-Machined Billet Aluminum Subframe Hard Collars (FD1, FD2, FD3, FD4)

Product Description

The BLOX Racing BXSS-20603 is a front subframe hard collar kit for 2002-2011 Honda Civic (EP3/FD/FG), 2002-2006 Acura RSX (DC5), and 2007-2008 Honda Fit. The factory subframe uses rubber bushings at the mounting points, which allow the subframe to shift slightly under load - negatively affecting suspension geometry, alignment consistency, and steering feel. These CNC-machined billet aluminum hard collars replace the factory compliance and lock the subframe in a fixed, precise position, eliminating unwanted movement and providing an immediate improvement in chassis rigidity and suspension response.

Installation requires dropping the front subframe for access, but no permanent modifications to the chassis are necessary. The collars drop into the existing mounting points as a direct fit. Four collars are included (FD1-FD4) and placement varies slightly by chassis - refer to the BLOX Racing installation guide on their website for the correct orientation for your specific vehicle. An alignment is recommended after installation.
