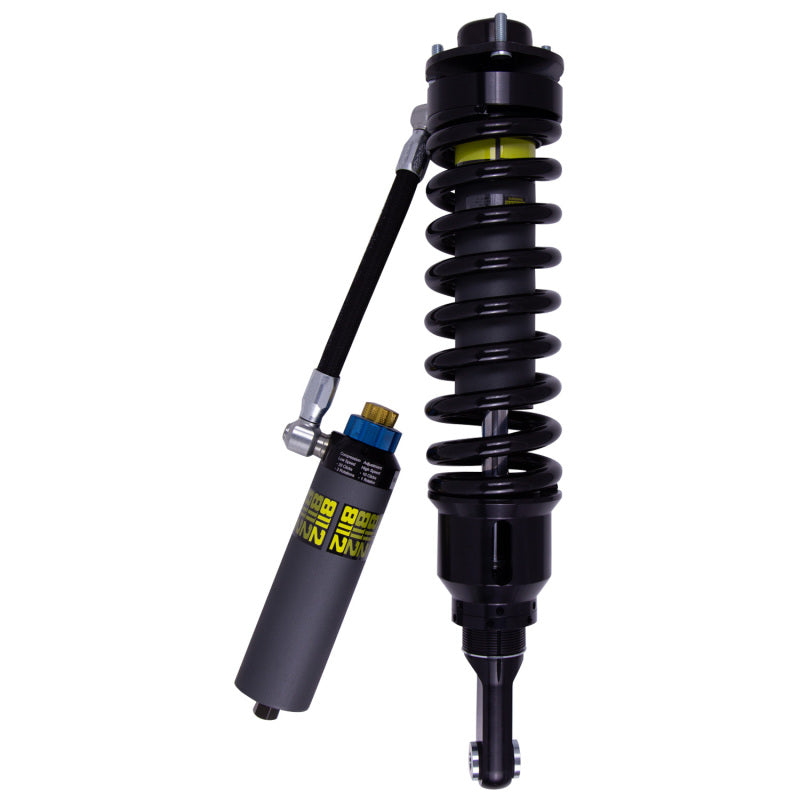

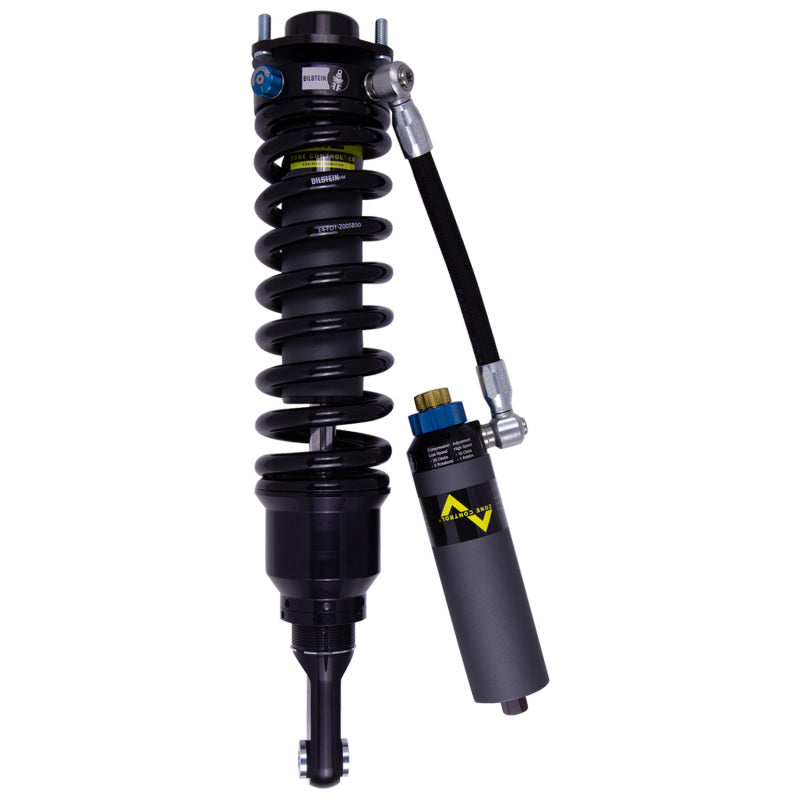

Bilstein 41-319581 B8 8112 ZoneControl Coilover for 2005-2023 Toyota Tacoma 4WD

Vehicle Fitment

• 2005-2015 Toyota Tacoma (SR, SR5, PreRunner, TRD Sport, TRD Off-Road, TRD Pro - 4WD; 2.7L I4, 4.0L V6)
• 2016-2023 Toyota Tacoma (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, TRD Pro - 4WD; 2.7L I4, 3.5L V6)

Fitment Notes

• Fits 4WD models only. Not compatible with 2WD or PreRunner (2WD) configurations.
• This is the Front Right (passenger side) coilover assembly only.
• Aftermarket upper control arms are required when lifting above factory geometry limits; Bilstein B8 Control Arm Kit #51-304683 is recommended.
• Provides 0.4-2.6" of front lift depending on spring seat adjustment.
• Does not fit 2024+ Tacoma (fourth generation - different platform and suspension architecture).

Features

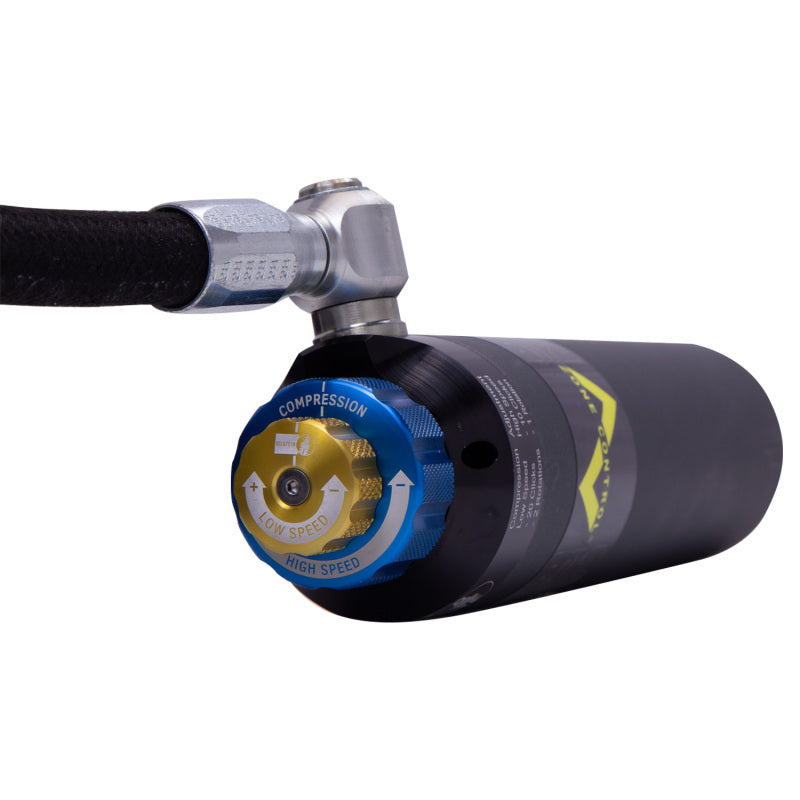

• ZoneControl CR DSA+ technology delivers position-sensitive damping with user-adjustable Dual Speed Adjustability for both low and high speed compression.
• Triple piston design provides 3 stages of compression valving and 2 stages of rebound valving for precise tuning across terrain types.
• Threaded spring seat allows ride height adjustability from 0.4" to 2.6" of front lift without additional hardware.

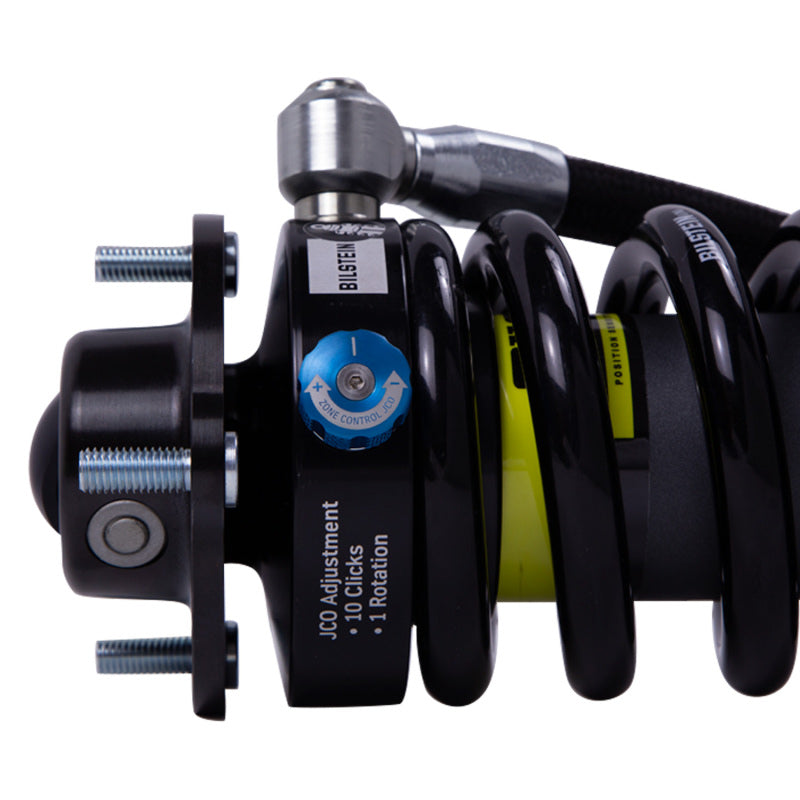

• Adjustable JCO (internal hydraulic bump stop) protects against harsh bottom-outs during aggressive off-road use.
• Remote reservoir with bolt-on anodized chassis mount provides increased fluid capacity and cooling for extended off-road runs.
• 60mm body diameter and direct-fit design ensures no drilling or modification required for installation.
• Backed by Bilstein's Limited Lifetime Warranty against defects in materials and workmanship.

Specifications

• Series: Bilstein B8 8112 ZoneControl CR DSA+
• Body Diameter: 60mm
• Position: Front Right (Passenger Side)
• Lift Range: 0.4"-2.6" (application-dependent)
• Collapsed Length: 17.42 in.
• Extended Length: 22.39 in.
• Adjustability: 3-way (low speed compression, high speed compression, rebound)
• Compatible Drivetrains: 4WD only
• Compatible Engines: 2.7L I4, 4.0L V6 (2005-2015); 2.7L I4, 3.5L V6 (2016-2023)

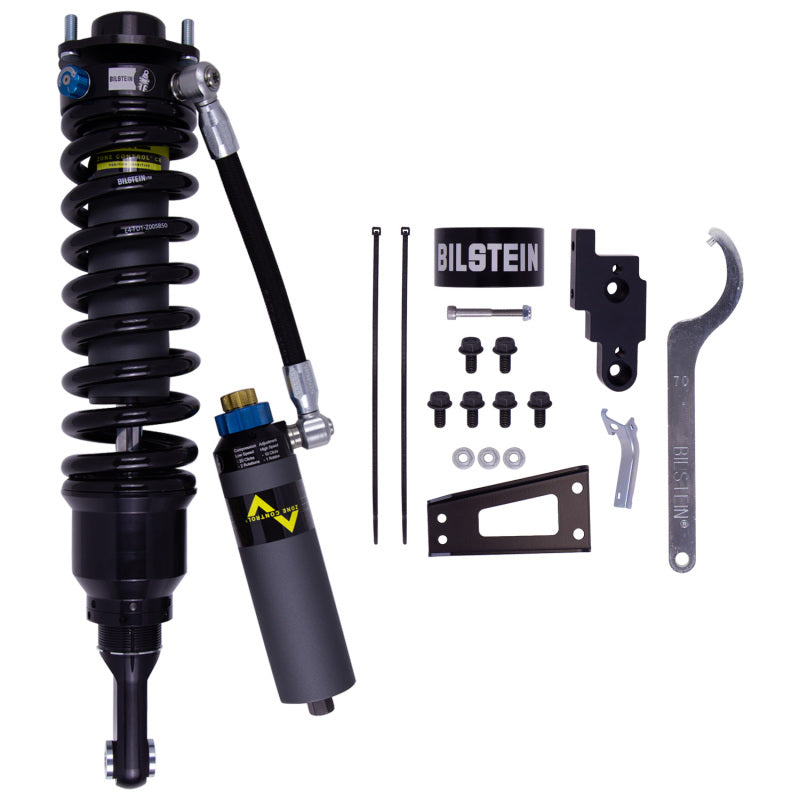

Included Components

• 1x Front Right B8 8112 ZoneControl CR DSA+ Coilover Assembly (41-319581)
• 1x Remote reservoir with bolt-on anodized reservoir chassis mount
• 1x Pre-loaded coil spring

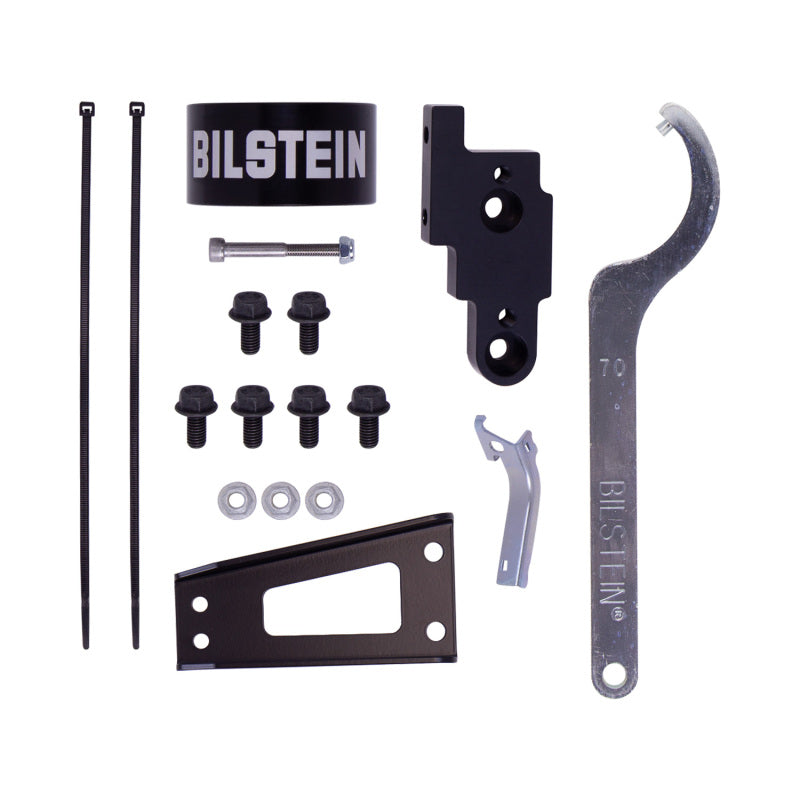

• 1x All necessary hardware and click adjuster knobs for installation

Product Description

The Bilstein 41-319581 is a B8 8112 ZoneControl CR DSA+ front right coilover assembly engineered for the 2005-2023 Toyota Tacoma 4WD. Featuring Bilstein's proprietary ZoneControl technology, this unit delivers position-sensitive damping that automatically adapts through the shock's stroke - offering a compliant, comfortable ride in normal driving while stiffening progressively as suspension inputs increase during off-road use. The user-adjustable Dual Speed Adjustability (DSA) system gives drivers click-knob control over both low and high speed compression, along with an adjustable internal hydraulic bump stop, making this coilover a versatile choice from daily commuting to aggressive trail use.

Ride height is adjustable from 0.4" to 2.6" of front lift via the threaded spring seat, and the included remote reservoir ensures consistent damping performance even during extended off-road runs by managing heat and fluid aeration. Aftermarket upper control arms - such as the Bilstein B8 UCA Kit #51-304683 - are required when running toward the upper end of the lift range to maintain proper geometry and caster angles. This coilover is a direct fit for all 4WD Tacoma trims across both the second and third generations and comes backed by Bilstein's Limited Lifetime Warranty.
