Bilstein 41-326329 B8 8112 Front Left Coilover for 2003-2009 4Runner/GX470/FJ

Vehicle Fitment

• 2003-2009 Toyota 4Runner, 4WD (without X-REAS or KDSS), Front Left
• 2003-2009 Lexus GX470, Front Left
• 2007-2009 Toyota FJ Cruiser, Front Left

Fitment Notes

• For 1.3-4" front lifted applications
• Not compatible with vehicles equipped with X-REAS or KDSS electronically controlled suspension
• Front left position only - right side sold separately
• Sold as a complete shock and coil spring corner module, not a bare shock

Features

• Position-sensitive ZoneControl CR damping with triple-piston design
• 3 stages of compression valving and 2 stages of rebound valving
• Internal compression and rebound stops eliminate need for external bump stops or limit straps
• Threaded spring seat allows additional ride height adjustment
• 60mm remote reservoir increases oil capacity and cooling
• Vehicle-specific coil spring preloaded to factory specification

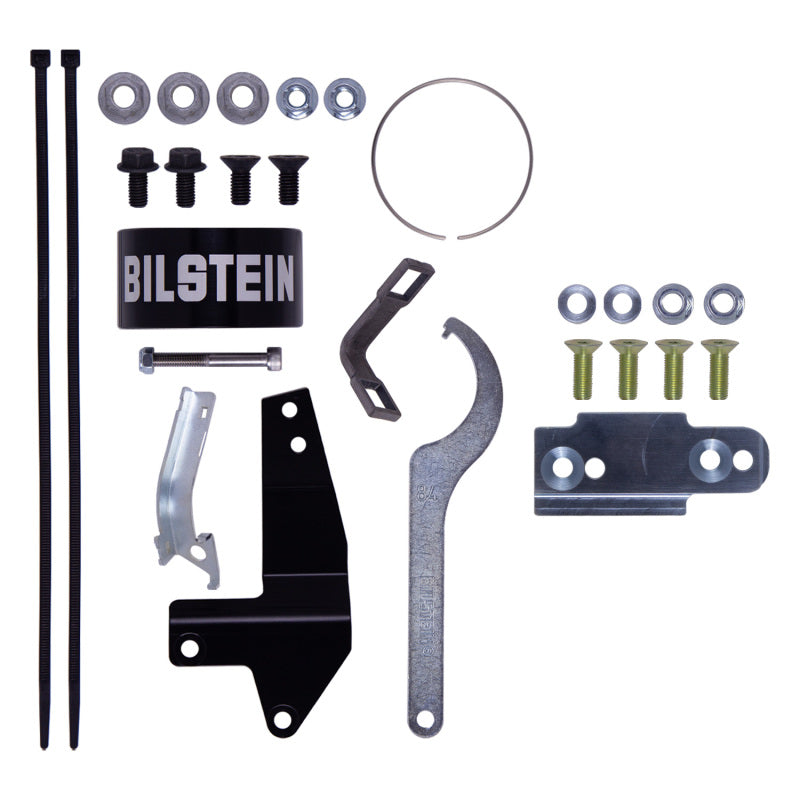

• Frame-mounted anodized aluminum reservoir bracket included
• Backed by Bilstein's 2-year warranty

Specifications

• Position: Front, Left
• Internal design: ZoneControl CR, triple-piston monotube
• Collapsed / extended length: 17.99 in / 22.80 in
• Lower mount type: Eye, 14.1mm
• Ride height adjustment: 0-3.8" (application dependent)

Included Components

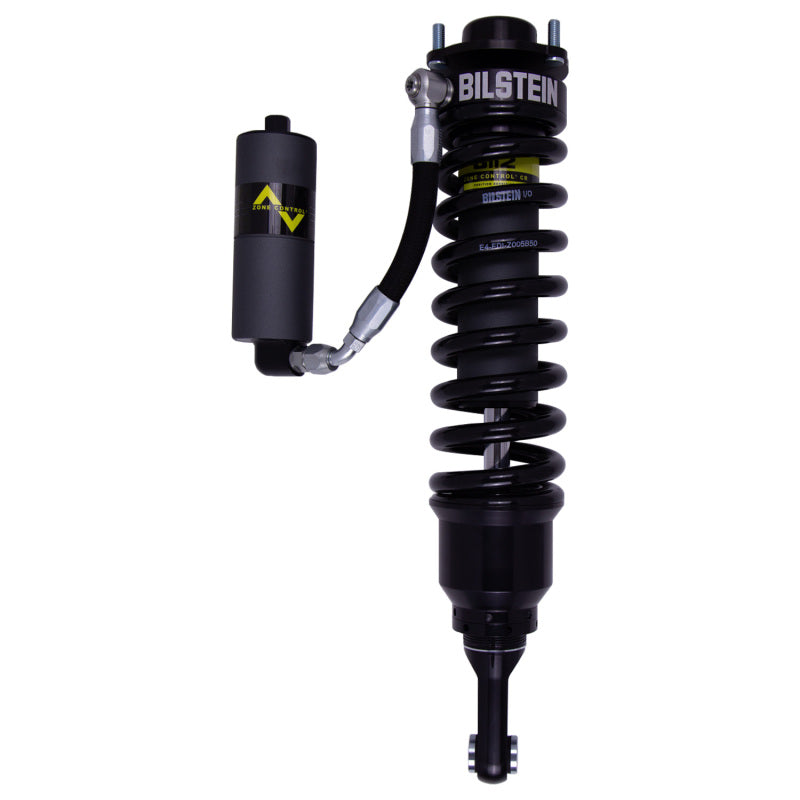

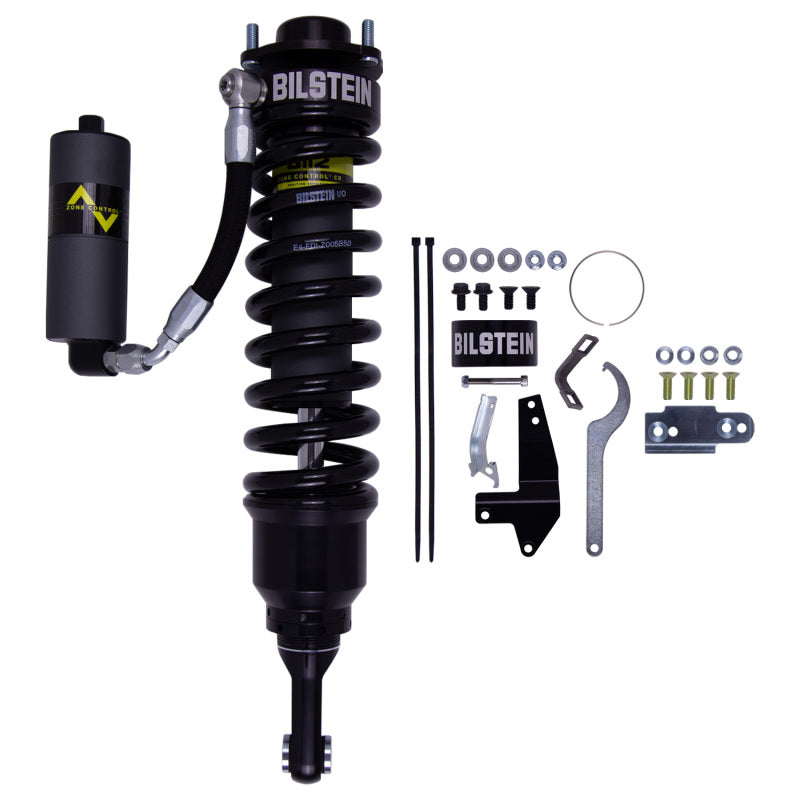

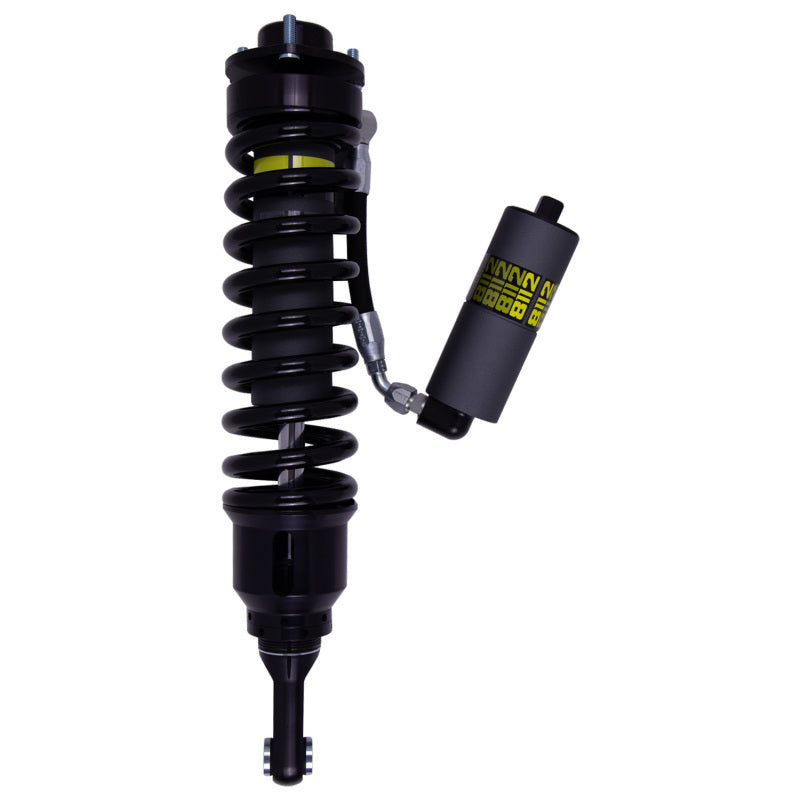

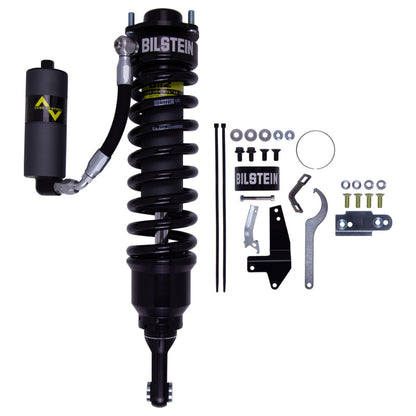

• 1x Bilstein B8 8112 ZoneControl CR Front Left Coilover (shock, coil spring, and remote reservoir mount included)

Product Description

The Bilstein 41-326329 is a B8 8112 ZoneControl CR front left coilover built for lifted 2003-2009 4Runner, GX470, and FJ Cruiser models. Its position-sensitive triple-piston design delivers three stages of compression and two of rebound valving, giving it comfortable everyday ride quality while still handling large suspension inputs with precise control off-road.

It comes as a complete corner module - coil spring, shock, and a 60mm remote reservoir with frame-mounted bracket included - for 1.3-4" of front lift. It's not compatible with X-REAS or KDSS-equipped vehicles, and this is the front left side only, with the right sold separately. Bilstein backs it with a 2-year warranty against manufacturing defects.
