Bilstein 25-320442 B8 8100 Rear Left Shock for 2005-23 Toyota Tacoma 4WD

Vehicle Fitment

• 2005-2023 Toyota Tacoma (4WD; Rear Left; Fits 0-1.5" Rear Lift)
• 2024-2025 Tacoma fitment unconfirmed at time of listing

Features

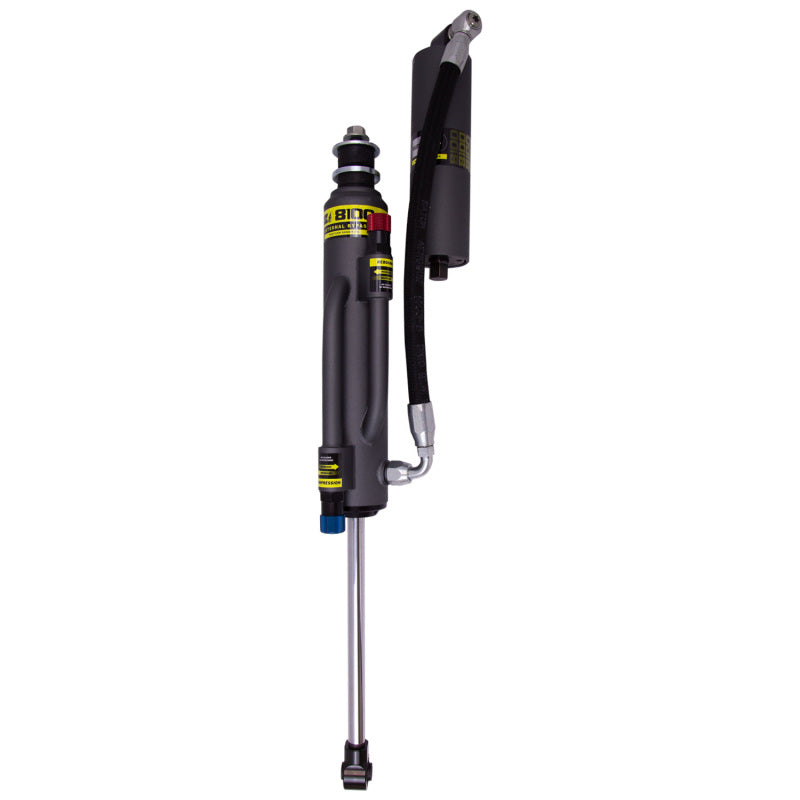

• Bilstein B8 8100 Series bypass remote reservoir rear shock absorber
• 60 mm large-bore monotube body for superior damping and heat control
• Dual-tube externally adjustable bypass design with independent rebound/compression knobs
• Remote reservoir with bottom hose exit for added oil capacity and bottom-out control
• Incremental flow bypass adjusters allow precise tuning from soft to firm
• Zinc-plated corrosion-resistant finish for long service life
• 360° swivel banjo hose fitting for clean installation routing
• Direct-fit rear left replacement - no drilling or modification required

Specifications

• Brand: Bilstein
• Part Number: 25-320442
• Series: B8 8100 (Bypass)
• Position: Rear Left
• Internal Design: Monotube gas-pressurized with external bypass tubes
• Body Diameter: 60 mm (large bore)

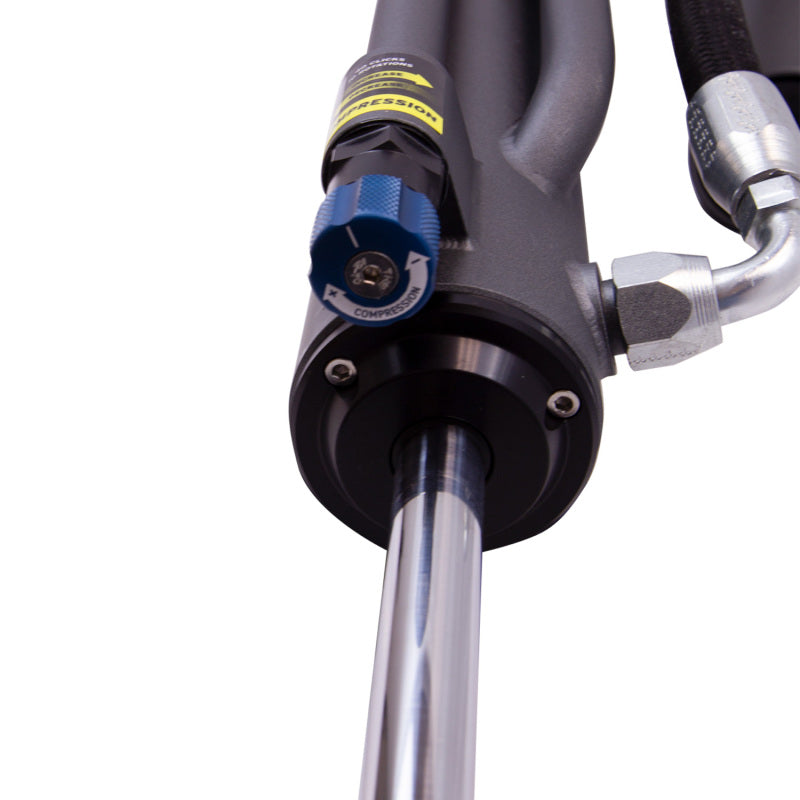

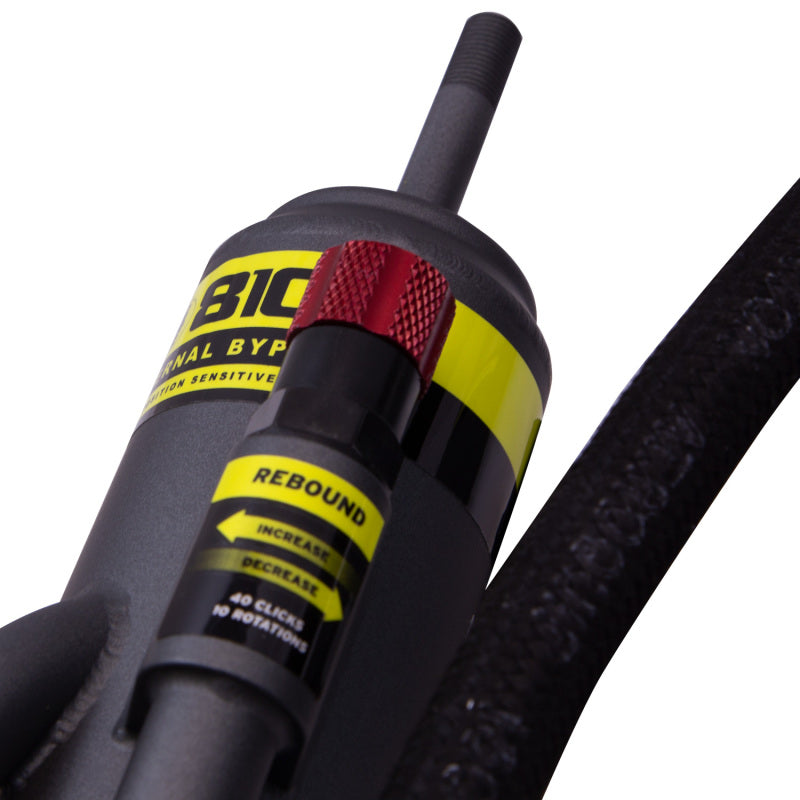

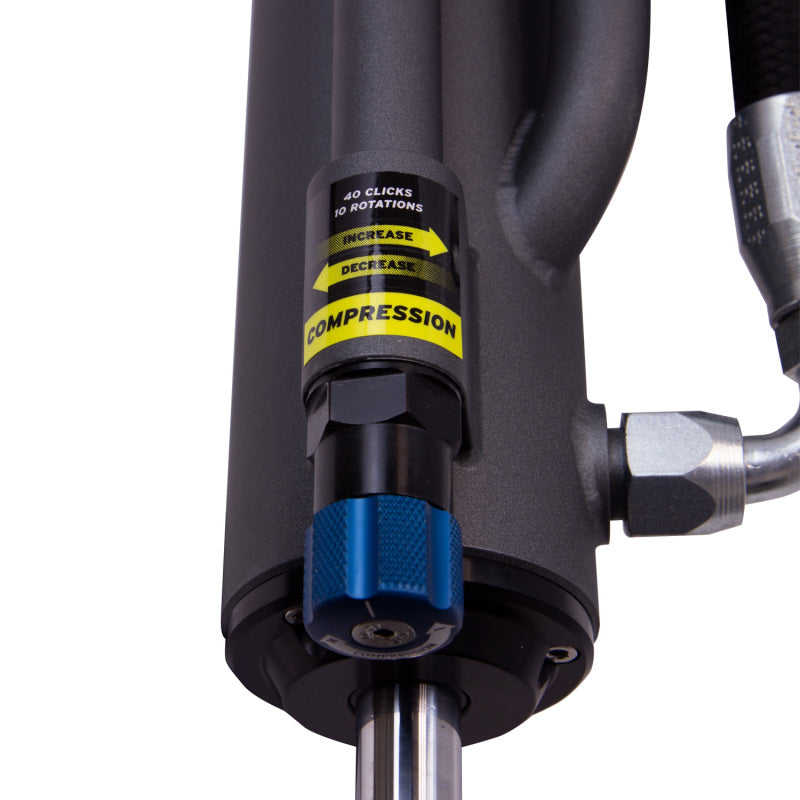

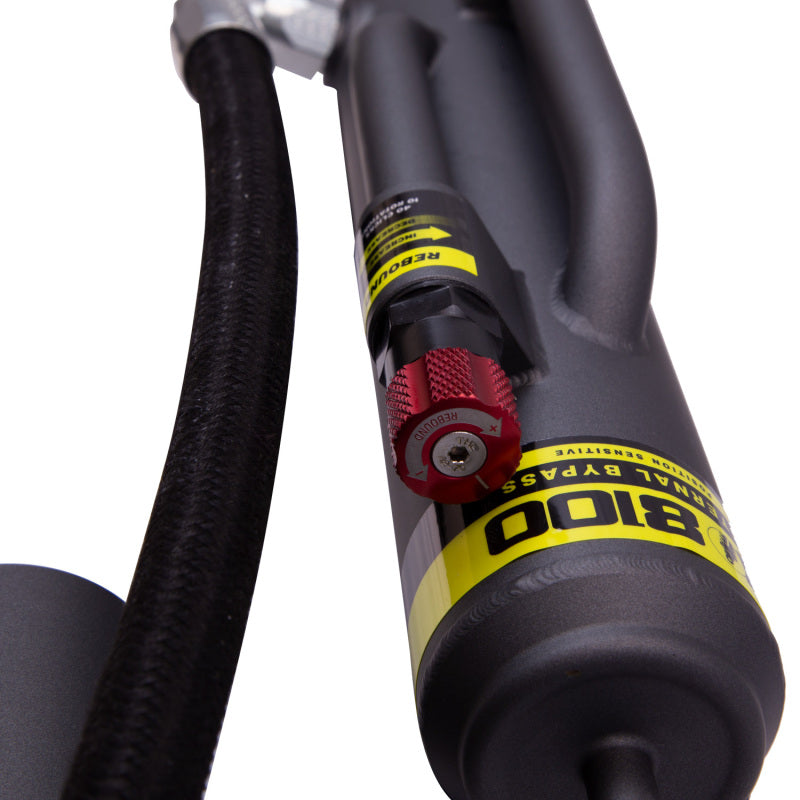

• Adjustability: Independent rebound and compression bypass knobs
• Remote Reservoir: Yes (included with chassis mount)
• Collapsed Length: ~14.25 in (362 mm)
• Extended Length: ~23.94 in (608 mm)
• Upper Mount Type: Stem
• Lower Mount Type: Eye (12 mm)
• Boot Included: No
• Recommended Lift Range: 0-1.5" Rear
• Finish: Zinc-plated/EVO grey

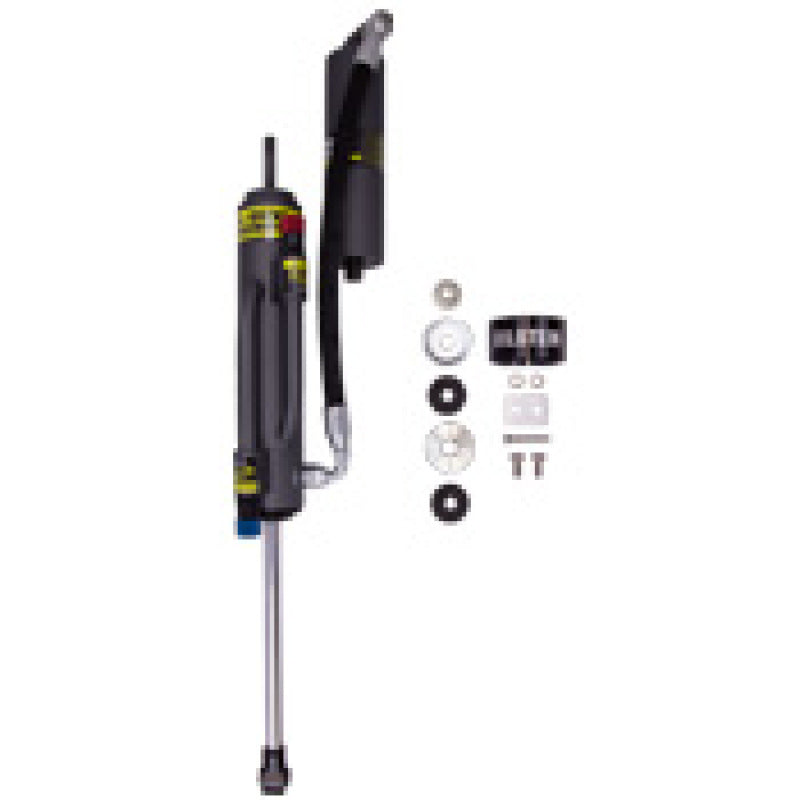

Included Components

• 1x Bilstein B8 8100 Bypass Rear Left Shock Absorber (25-320442)

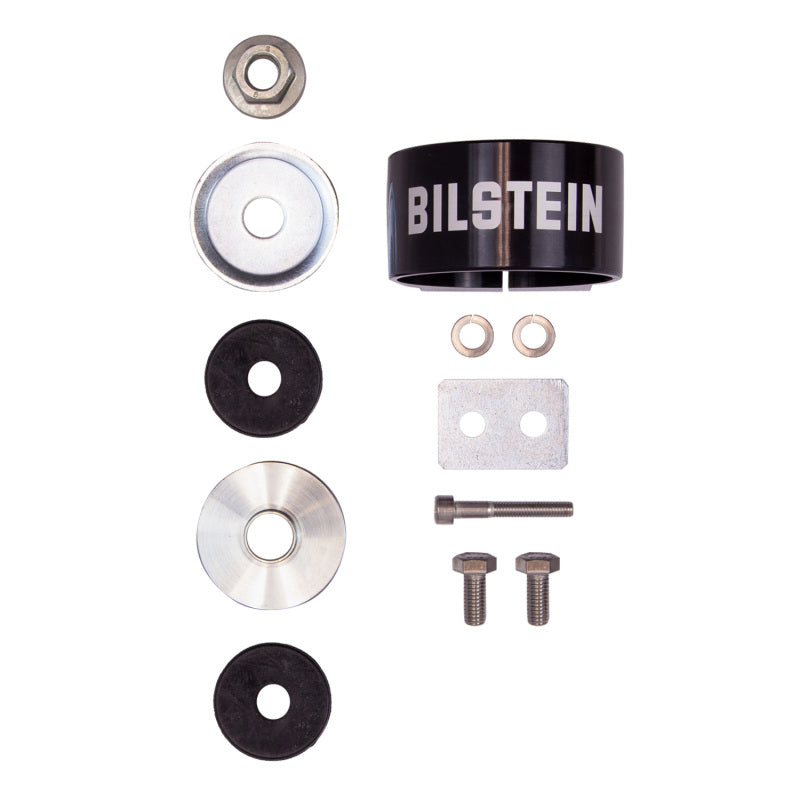

• 1x Remote reservoir with mounting bracket and hardware

Product Description

The Bilstein 25-320442 B8 8100 Series Rear Left Shock Absorber is a high-end suspension upgrade engineered for 2005-2023 Toyota Tacoma 4WD models, designed to work with stock suspension or trucks with modest rear lifts up to approximately 1.5". Featuring a large 60 mm monotube body with a remote reservoir and a dual-tube externally adjustable bypass design, this shock delivers exceptional damping control, heat management, and ride comfort both on and off the trail.

With independent rebound and compression bypass adjusters, the 25-320442 allows for precise tuning of suspension response from soft to firm, giving drivers the flexibility to optimize ride quality and control for their specific driving conditions. The remote reservoir increases oil capacity and enhances bottom-out resistance, while the direct-fit design and included hardware make installation straightforward with OE mounting locations. Note that 2024-2025 Tacoma fitment was unconfirmed at the time of listing, though many parts that fit 2023 continue into newer model years.
