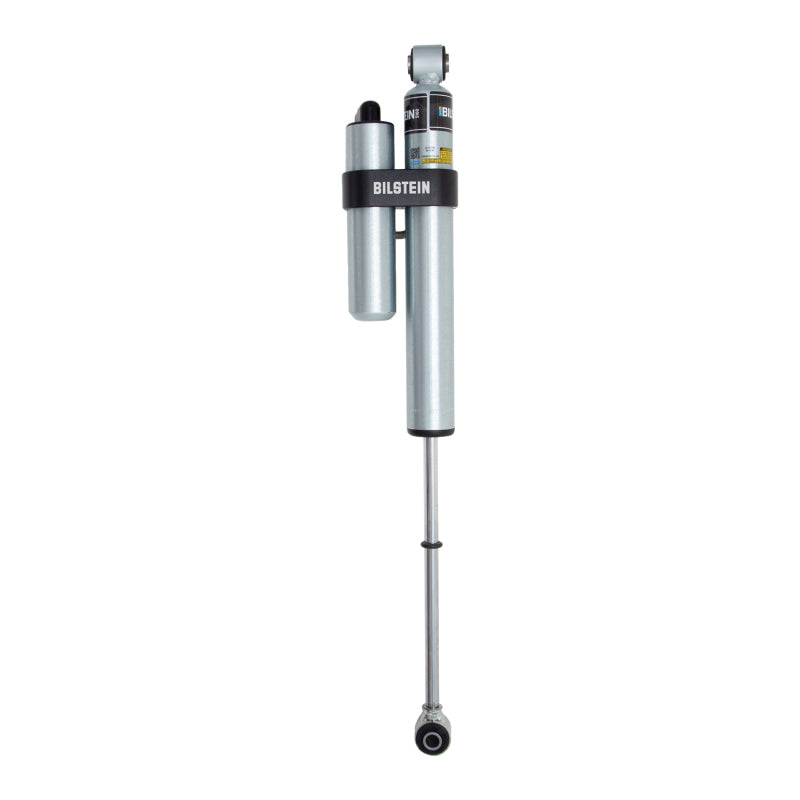

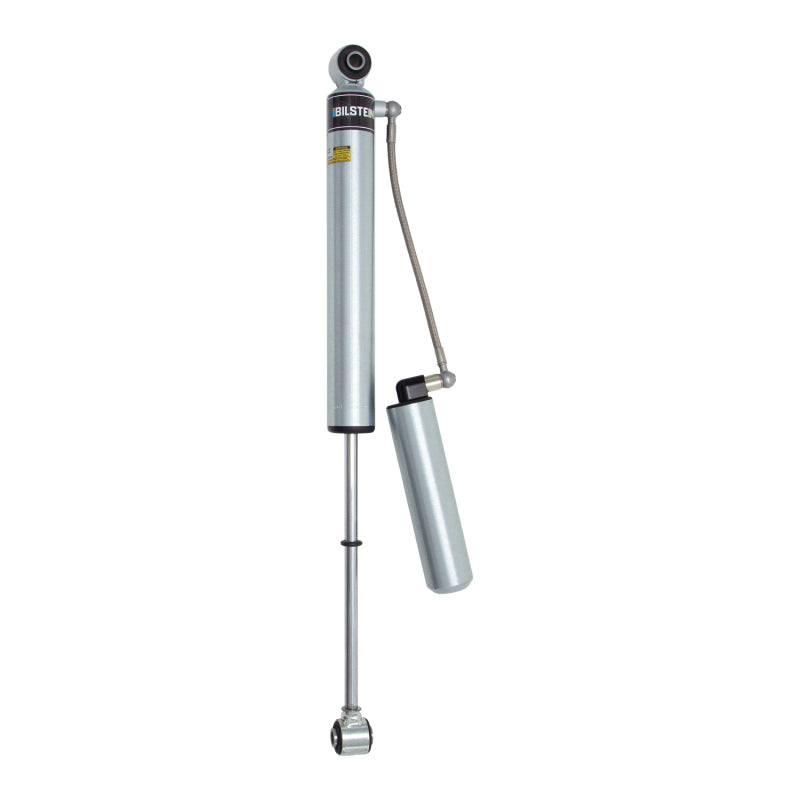

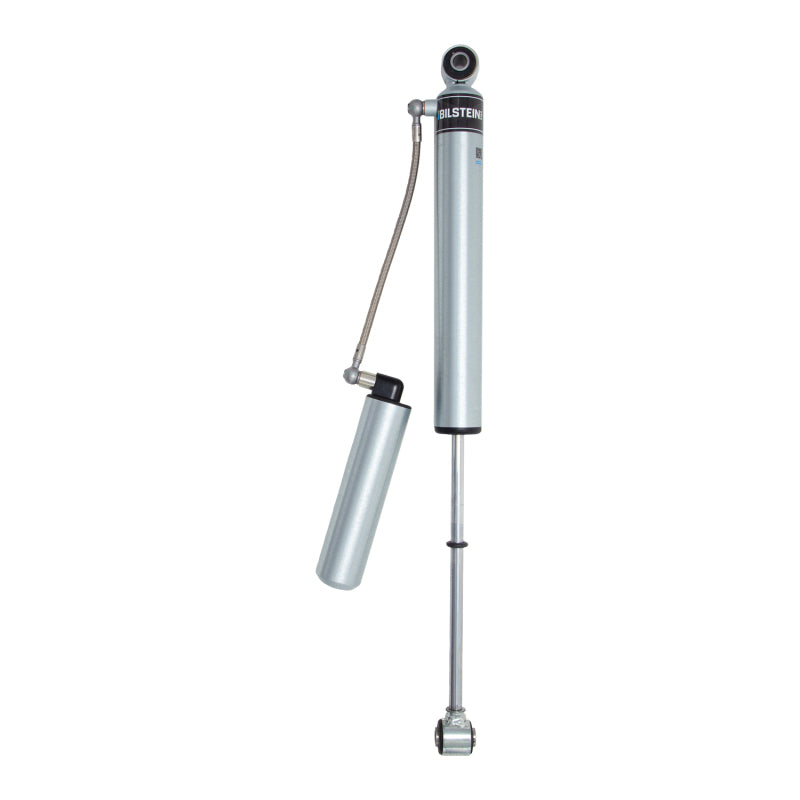

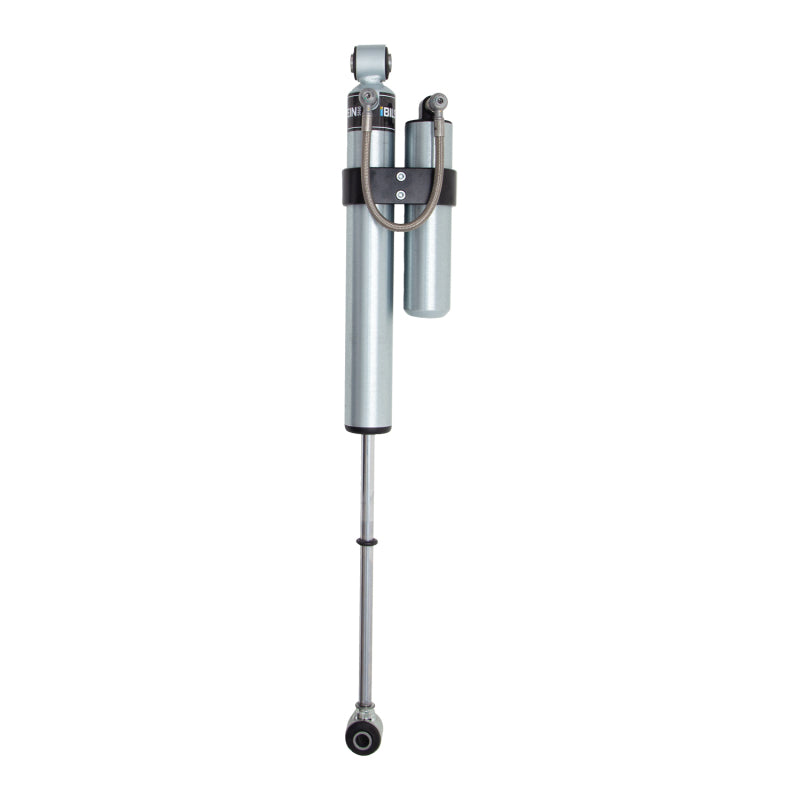

Bilstein 25-311761 B8 5160 Rear Shock Chevy/GMC 1500 SUV/Dodge Ram 4WD 0-5" Lift

Vehicle Fitment

• 2002-2006 Chevrolet Avalanche 1500 (4WD, 5.3L V8 / 8.1L V8, 0-5" Rear Lift)
• 2000-2006 Chevrolet Suburban 1500 (4WD, 5.3L V8 / 6.0L V8, 0-5" Rear Lift)
• 2000-2006 Chevrolet Tahoe (4WD, 4.8L V8 / 5.3L V8, 0-5" Rear Lift)
• 2000-2006 GMC Yukon (4WD, 4.8L V8 / 5.3L V8, 0-5" Rear Lift)
• 2000-2006 GMC Yukon XL 1500 (4WD, 5.3L V8 / 6.0L V8, 0-5" Rear Lift)
• 2006-2008 Dodge Ram 1500 (4WD, 3.7L V6 / 4.7L V8 / 5.7L HEMI V8, 0-5" Rear Lift)
• 1994-2013 Dodge Ram 2500 (4WD, All Engines incl. 5.9L / 6.7L Cummins Diesel, 0-5" Rear Lift)
• 1994-2012 Dodge Ram 3500 (4WD, All Engines incl. 5.9L / 6.7L Cummins Diesel, 0-5" Rear Lift)

Fitment Notes

• Position: Rear - sold individually. This shock is not side-specific; one unit fits either the driver or passenger side. Two units are required for a complete rear axle installation.
• Designed for vehicles with 0-5" of rear lift - covers a wide range from factory ride height through heavily lifted builds.
• 4WD fitment only for all listed vehicles. Does not fit 2WD/RWD variants.
• For GM SUV applications, excludes Z55 AutoRide (electronic) suspension. Verify your build code does not include AutoRide before ordering.
• An optional billet aluminum reservoir clamp (Bilstein #11-176015) is available separately for a cleaner, more compact reservoir installation.
• Installation hardware and reservoir mounting bracket are included.

Features

• Bilstein B8 5160 series - remote reservoir monotube shock engineered as a direct-fit solution for seriously lifted trucks and SUVs, covering a broad 0-5" rear lift range in a single application-tuned package.
• 46mm monotube gas-pressure design keeps nitrogen gas completely separated from hydraulic fluid at all times, delivering consistent, fade-free damping performance through the full shock travel.
• Velocity-sensitive digressive valve settings are tuned specifically for each vehicle application, reacting instantly to road surface changes for maximum control and composure at any speed.
• Remote reservoir dramatically increases oil volume and heat dissipation capacity beyond what a standard monotube can manage - critical for sustained off-road performance where heat buildup causes conventional shocks to fade and lose effectiveness.
• Floating dividing piston in the remote reservoir increases available wheel travel and shock shaft movement compared to a traditional non-reservoir monotube.
• 360-degree swivel banjo reservoir hose fitting allows full rotation for clean, flexible routing in tight chassis environments.
• Zinc-plated steel body with Bilstein's exclusive Triple-C Technology finish for lasting corrosion resistance and aesthetics in harsh off-road conditions.
• Direct bolt-on installation using OEM mounting locations - no modification, welding, or custom brackets required.
• Made in the USA.

Specifications

• Series: B8 5160
• Position: Rear (Non-Side-Specific)
• Rear Lift Compatibility: 0-5"
• Drivetrain: 4WD only
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Collapsed Length: 16.56 in. (420.5 mm)
• Extended Length: 28.13 in. (714.7 mm)
• Reservoir: Yes (Remote, with 360° Swivel Banjo Hose Fitting)
• Optional Billet Reservoir Clamp: Bilstein #11-176015 (sold separately)
• Finish: Zinc Plated
• Boot Included: No
• Spring Seat Included: No
• Origin: Made in USA
• Quantity Sold: Individually (1x per listing)
• Warranty: 90-Day Limited Bilstein Warranty

Included Components

• 1x Bilstein B8 5160 Rear Shock Absorber (25-311761)
• 1x Remote Reservoir with Mounting Bracket and Hardware
• 1x 360° Swivel Banjo Hose Fitting

Product Description

The Bilstein 25-311761 is a B8 5160 rear shock absorber designed to span one of the broadest lift ranges in the Bilstein truck lineup - covering 0" to 5" of rear lift in a single direct-fit application-tuned package. It fits a wide range of full-size 4WD platforms: the GMT800-generation Chevrolet Tahoe, Suburban 1500, and Avalanche 1500, GMC Yukon and Yukon XL 1500 (2000-2006), plus Dodge Ram 1500 (2006-2008), Ram 2500 (1994-2013), and Ram 3500 (1994-2012) - all in 4WD configuration. The 46mm monotube design provides the permanent gas-to-fluid separation needed for consistent, fade-free performance, while the remote reservoir takes thermal management well beyond what a traditional monotube shock can handle, sustaining full damping output on long, demanding off-road runs where conventional shocks overheat and fade. A floating dividing piston in the reservoir also delivers increased wheel travel and shaft movement versus a standard monotube.

Velocity-sensitive digressive valving is tuned specifically for these vehicle applications, instantly adapting to changing road conditions for precise control whether you're running a loaded bed on washboard roads, navigating rocky trails, or towing at the edge of rated capacity. The 360-degree swivel banjo fitting keeps reservoir hose routing clean, and the included mounting hardware allows a direct bolt-on installation at OEM locations. An optional billet aluminum reservoir clamp (Bilstein #11-176015) is available separately for a more refined reservoir mounting. Sold individually - two units are required for a complete rear axle installation. This shock is non-side-specific and fits either the driver or passenger side. Made in the USA, backed by Bilstein's 90-Day Limited Warranty.
