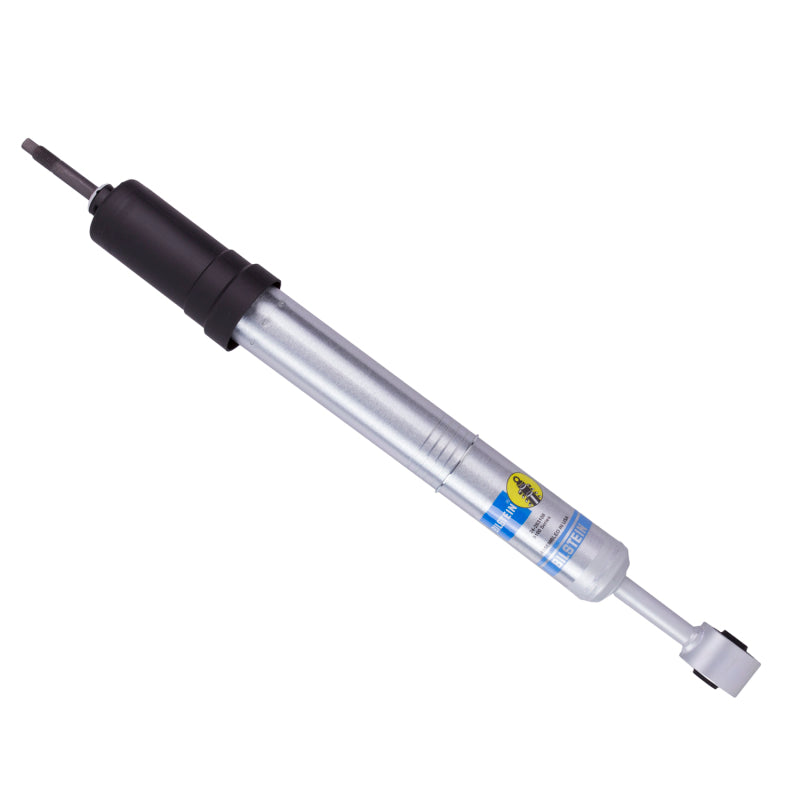

Bilstein 24-263108 B8 5100 Front Strut Adjustable 0-2" for 16-23 Toyota Tacoma

Vehicle F

Vehicle Fitment

• 2005-2023 Toyota Tacoma (All trims; 2WD/4WD; front axle)

Fitment Notes

• Sold individually--order two for full front replacement
• Ride-height adjustable shock--0-2" lift using OEM coil springs
• Not compatible with TRD Pro models or models with factory Electronic Variable Suspension
• Uses factory upper stem and lower eyelet mounts; no modifications needed

Features

• B8 5100 monotube design with 46 mm digressive piston for superior handling
• Five circlip grooves offer up to 2" adjustable lift using stock springs
• High-pressure nitrogen gas charge prevents fade under load
• Velocity-sensitive valving ensures smooth street and off-road performance
• Zinc-plated body with clear-coat resists corrosion
• Direct-fit with factory mounting hardware included
• Backed by Bilstein's limited lifetime warranty
• Manufactured under ISO-certified processes in USA/Germany

Specifications

• Part Number: 24-263108
• Series: B8 5100 Ride-Height Adjustable Shock--Front
• Body Diameter: 46 mm monotube
• Collapsed Length: 17.58" • Extended: 22.22" • Travel: 4.64"
• Mounts: Upper stem; Lower 14 mm eyelet
• Finish: Zinc-plated body, black bellows boot
• Weight: Common front assembly weight • sold per unit
• Warranty: Limited lifetime coverage

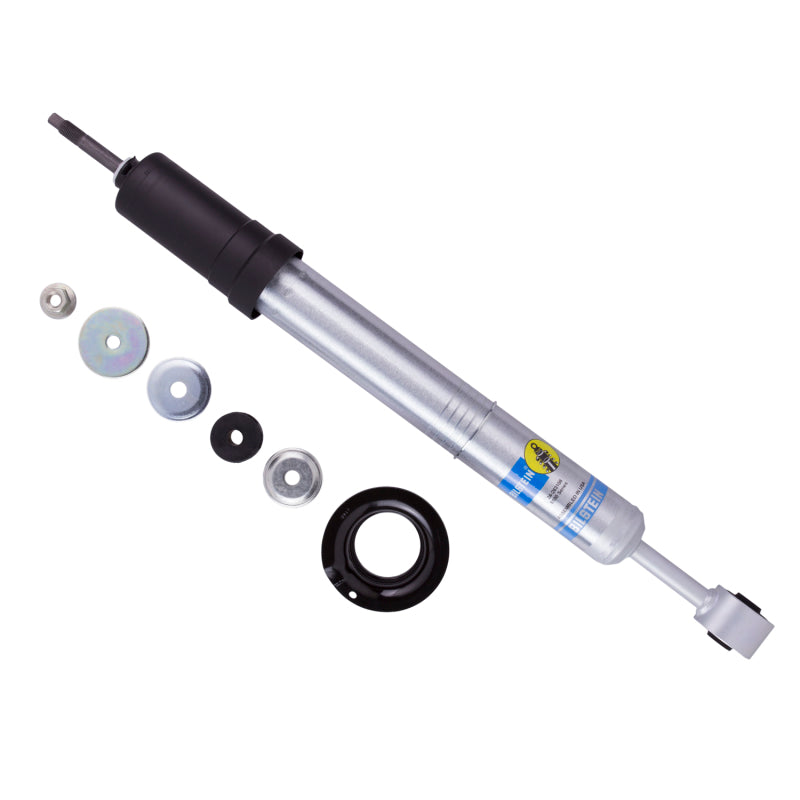

Included Components

• 1x B8 5100 front adjustable shock absorber
• 1x Black protective bellows boot
• Bracket collar with circlip for ride-height adjustment
• Factory-style washer, bushing, and nut
• Installation instructions and warranty documentation

Product Description

The Bilstein 24-263108 B8 5100 front shock is a ride-height adjustable upgrade for 2005-2023 Toyota Tacoma models. Featuring a robust 46 mm digressive piston and monotube design, this shock delivers improved handling, reduced body roll, and greater on- and off-road control. Its five circlip grooves allow adjustment from stock height up to 2" lift using factory springs--no spacers required.

Durability comes standard with a zinc-plated body, nitrogen pressure charge to prevent foaming, and velocity-sensitive valving. Direct-fit installation uses OEM mounts and included hardware, making it a hassle-free upgrade. Built under ISO standards in the USA and Germany and backed by Bilstein's lifetime warranty, the 24-263108 is ideal for Tacoma owners aiming for enhanced performance and adjustable lift capability.
