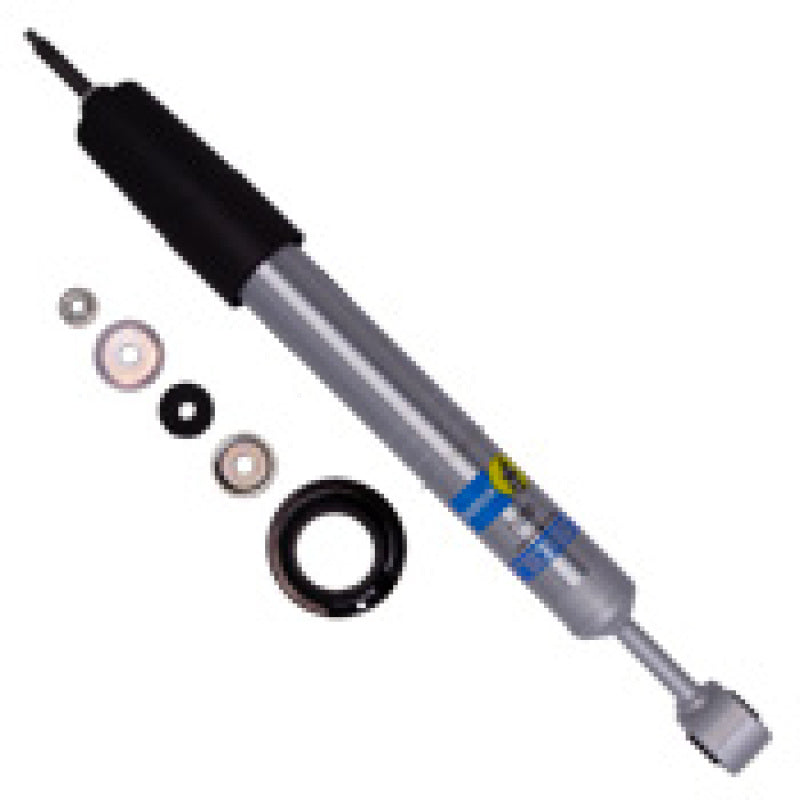

Bilstein 24-328258 Front Adjustable Shock 2010-23 4Runner/GX460/FJ Cruiser

Vehicle Fitment

• 2010-2023 Toyota 4Runner (All trims, Front)
• 2010-2023 Lexus GX460 (All trims, Front)
• 2010-2014 Toyota FJ Cruiser (All trims, Front)

Features

• Monotube B8 5100 series shock design
• Ride-height adjustable 0-2.5" via coil-over collar
• 46 mm digressive piston for responsive damping
• Zinc-plated corrosion-resistant body
• Velocity-sensitive, self-adjusting valving
• Direct bolt-on installation using OEM coil springs
• Fade-free performance in varied conditions
• Limited lifetime warranty from Bilstein

Specifications

• Position: Front (sold individually)
• Fitment Years: 2010-2023 4Runner/GX460; 2010-2014 FJ Cruiser
• Drivetrain: 2WD & 4WD
• Lift Range: 0-2.5" (spring collar positions)
• Collapsed Length: 17.50"
• Extended Length: 22.31"
• Travel: ~4.81"
• Body Diameter: 46 mm
• Mounts: Stem upper; 14.2 mm eye lower
• Finish: Zinc-plated body with multilayer coating

Included Components

• 1x Bilstein B8 5100 front ride-height adjustable shock (24-328258)

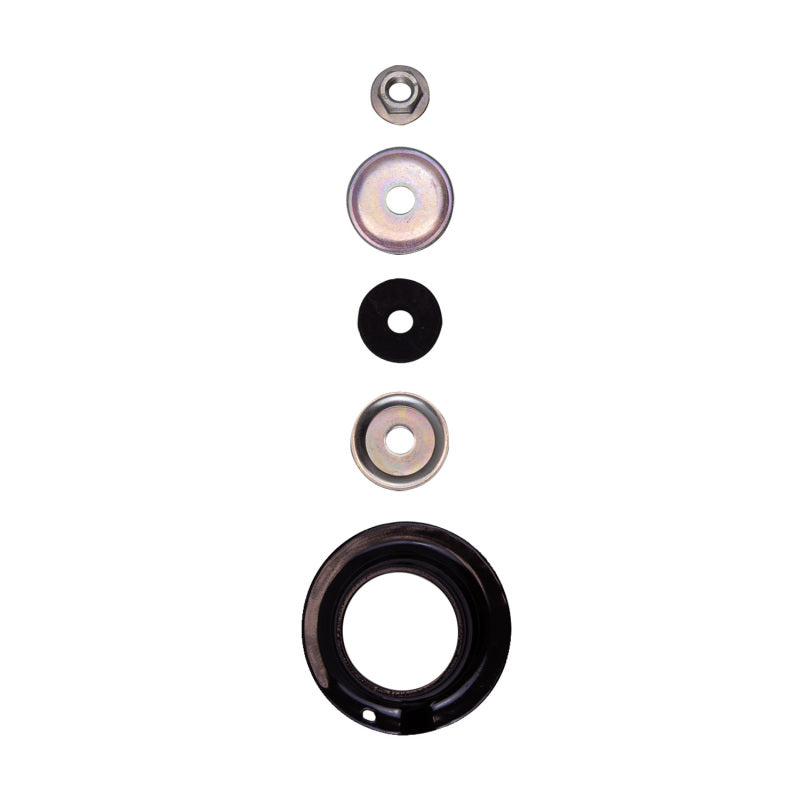

• Installation hardware: washers, bushings, nuts

Product Description

The Bilstein 24-328258 is a front monotube shock from the B8 5100 series, designed for 2010-2023 Toyota 4Runner, Lexus GX460, and 2010-2014 FJ Cruiser models. It offers ride-height adjustability (0-2.5") and performs with superior fade-free damping thanks to its 46 mm digressive piston and self-adjusting valving. Ideal for leveling or mild lift setups, it reuses OEM coil springs and mounts directly for a bolt-on upgrade.

Crafted with a zinc-plated steel body and OE-style mounting (stem/piston and eye lower), this shock provides excellent corrosion resistance and long-term durability. Lengths span from 17.5" collapsed to 22.31" extended, preserving suspension geometry while enhancing stability, road feel, and control. Backed by Bilstein's limited lifetime warranty, it's perfect for drivers looking to improve ride quality, handling, and stance on and off the road.
