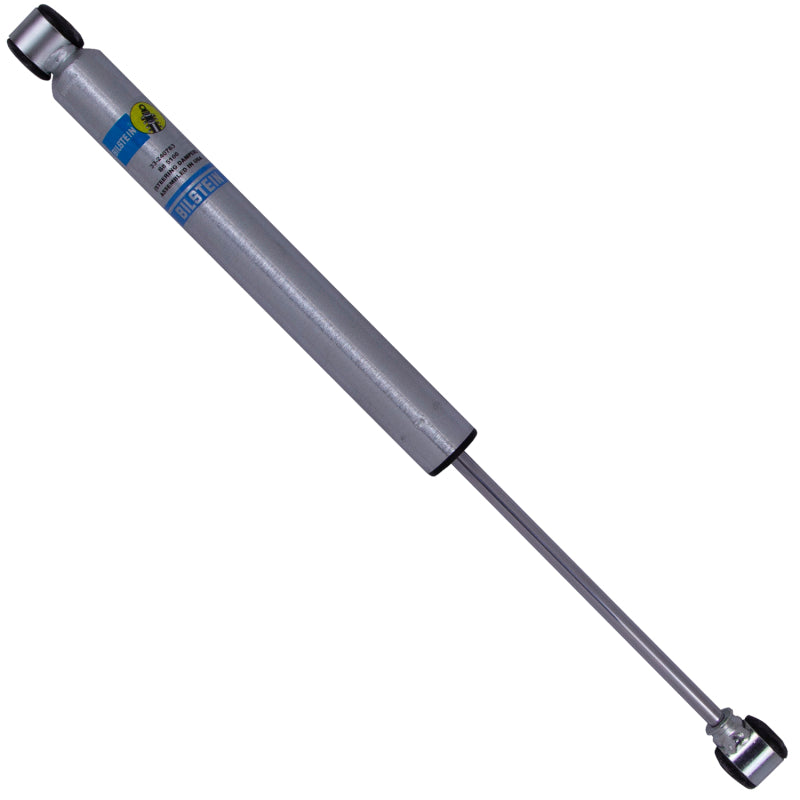

Bilstein 33-240763 B8 5100 Steering Damper for 53-264817 Kit Ram 2500 3500 4WD

Vehicle Fitment

• 2014-2026 Ram 2500 (4WD - All Trims) - Replacement steering damper for Bilstein 53-264817 Dual Steering Damper Kit
• 2013-2026 Ram 3500 (4WD - All Trims) - Replacement steering damper for Bilstein 53-264817 Dual Steering Damper Kit

Fitment Notes

• This part (33-240763) is a service/replacement damper only. It is sold individually as a direct replacement for one of the two steering dampers included in the Bilstein 53-264817 B8 5100 Dual Steering Damper Kit. It is not designed for standalone installation and does not include the mounting bracket, hardware, or second damper needed for a complete installation.
• If you need a complete dual steering damper kit - including both dampers and all mounting hardware - order Bilstein 53-264817 instead.
• 4WD models only. Compatible with stock and leveled (up to approximately 2.3") Ram 2500/3500 suspension.
• Not compatible with aftermarket steering linkage kits. May interfere with larger aftermarket differential covers (e.g. Mag Hytec).
• The 53-264817 kit uses 2 of these dampers - order 2 if replacing both units in the kit.

Features

• Bilstein B8 5100 Steering Damper - the same monotube damper unit used in the 53-264817 Dual Steering Damper Kit, allowing owners to replace individual worn or damaged dampers without purchasing a complete new kit.
• 36mm monotube gas pressure design with application-specific valve settings reduces steering vibration, shimmy, and wandering - the primary handling issues experienced on lifted or worn 4th-generation Ram 2500/3500 solid-axle front suspension.
• Smooth, zinc-plated 2.0" OD body with 11mm shaft. Upper Eye 12.7mm / Lower Eye 12mm mounts compatible with the 53-264817 kit's mounting hardware.
• Made in the USA. Limited Lifetime Warranty.

Specifications

• Part Number: 33-240763
• Series: Bilstein B8 5100 (Steering Damper - Replacement)
• Application: Replacement damper for Bilstein 53-264817 Dual Steering Damper Kit
• Internal Design: Monotube Gas Pressure
• Piston Diameter: 36mm
• Body Outer Diameter: 2.0"
• Shaft Diameter: 11mm
• Upper Mount Type: Eye 12.7mm
• Lower Mount Type: Eye 12mm
• Extended Length: 23.87" (606.4mm)
• Collapsed Length: 14.72" (374.0mm)
• Stroke / Travel: 9.15"
• Body Design: Smooth Body (Non-Coilover)
• Finish: Zinc Plated
• Boot Included: No
• Reservoir: No
• Quantity per Vehicle (Kit): 2
• Country of Origin: USA
• UPC: 651860786865
• Warranty: Limited Lifetime (against manufacturer defects)

Included Components

• 1x Bilstein B8 5100 Replacement Steering Damper (33-240763)
• Note: No mounting hardware included - this damper installs using the existing hardware from the 53-264817 kit

Product Description

The Bilstein 33-240763 is the individual replacement steering damper for the Bilstein 53-264817 B8 5100 Dual Steering Damper Kit, designed for the 2014-2026 Ram 2500 and 2013-2026 Ram 3500 in 4WD configuration. This is a service part - sold as a single damper for owners who need to replace one or both worn dampers in an already-installed 53-264817 kit, without purchasing a complete new kit with mounting hardware.

The 36mm monotube gas pressure design delivers the same steering vibration damping, shimmy reduction, and on-center steering feel as the original kit dampers. If you do not already own the 53-264817 kit and need a complete dual steering damper installation - including both dampers, mounting bracket, and all hardware - order the 53-264817 kit instead. For a replacement of both dampers in an existing kit, order quantity 2. Backed by Bilstein's Limited Lifetime Warranty against manufacturer defects.
