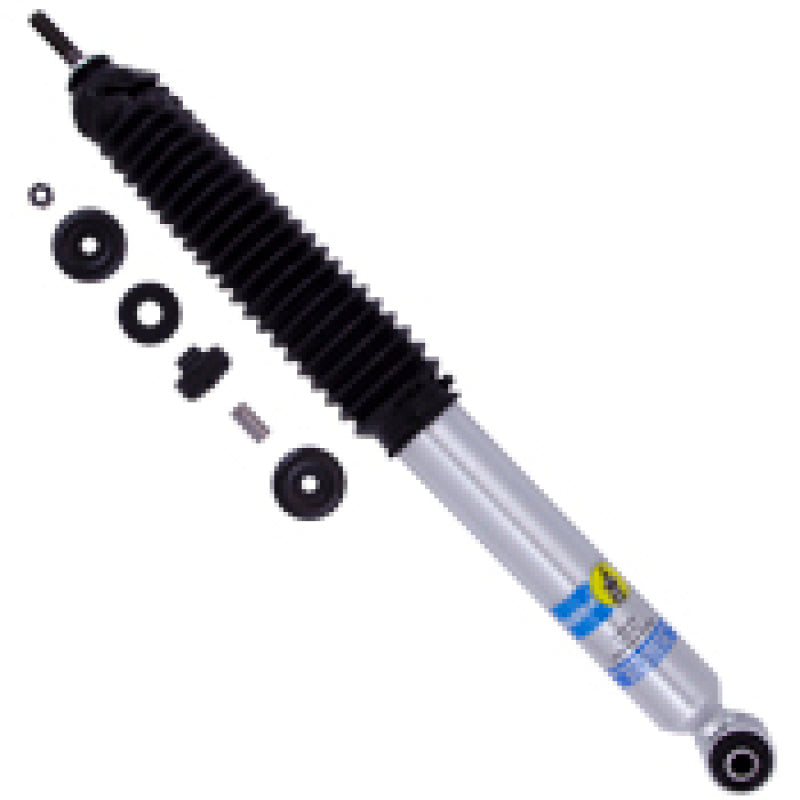

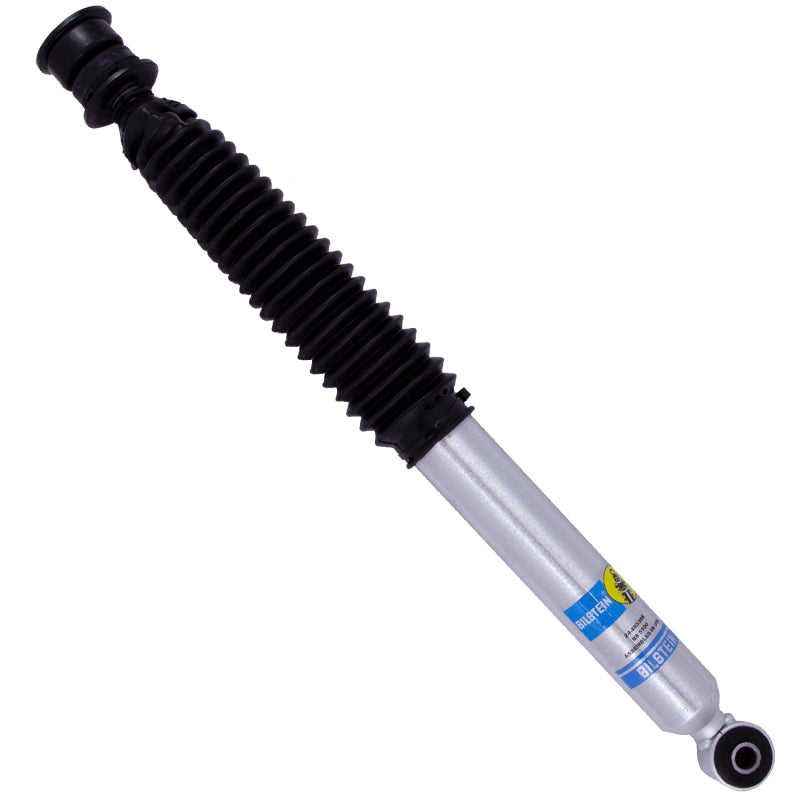

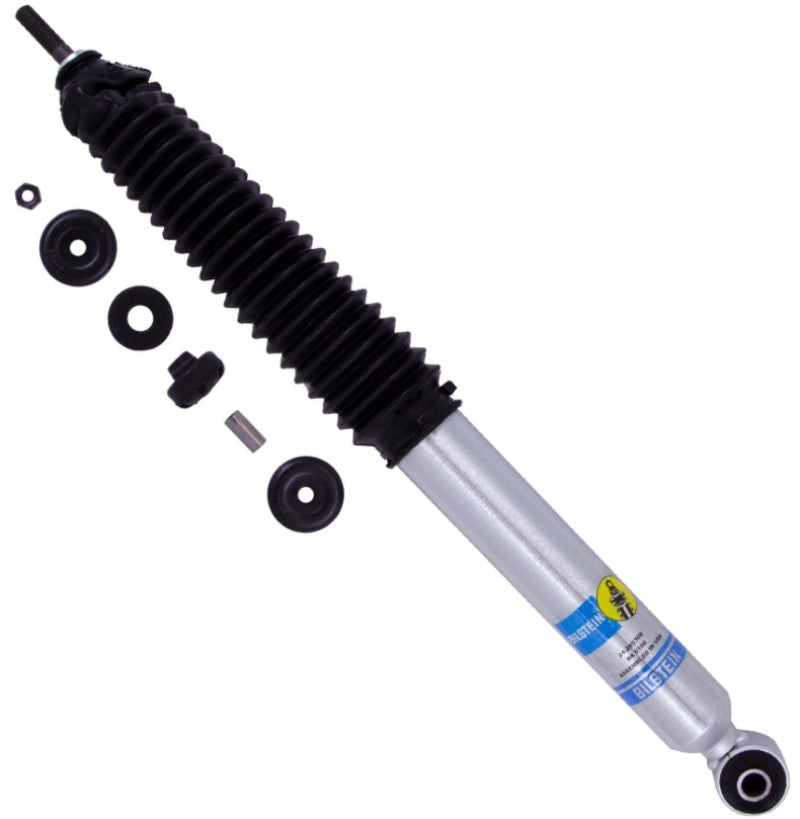

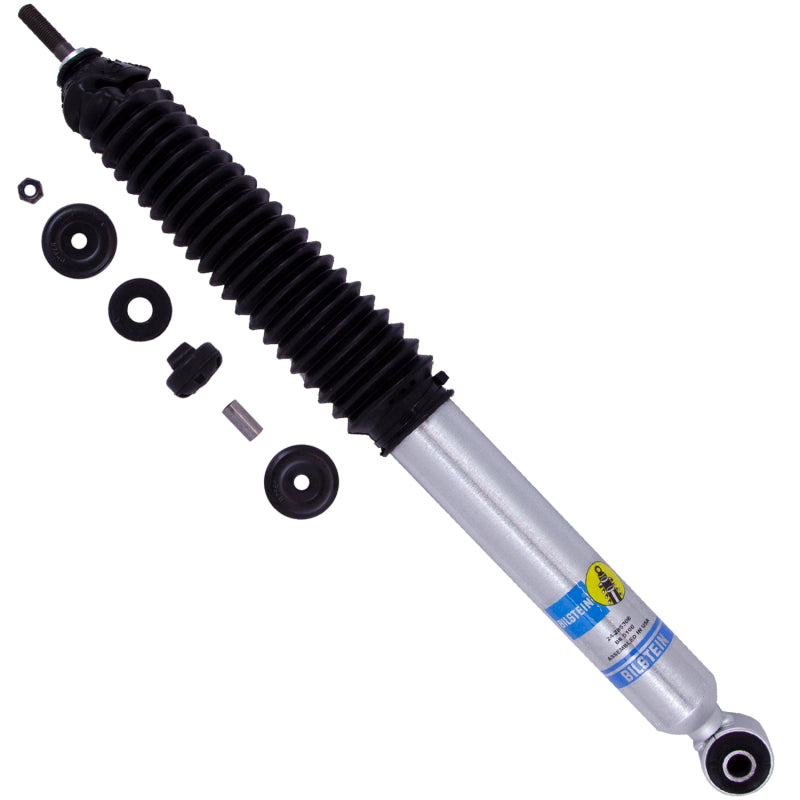

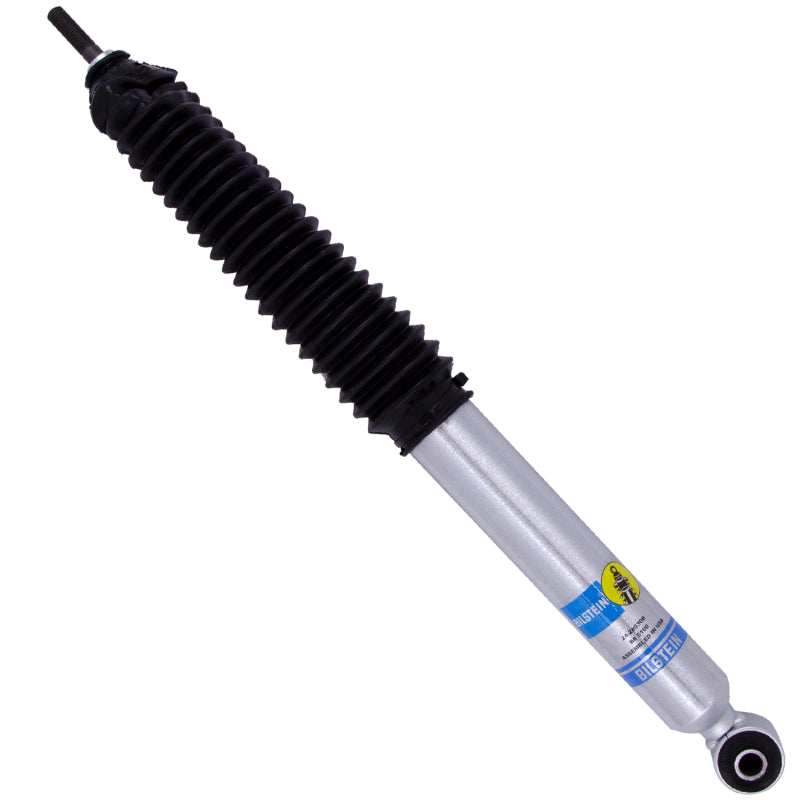

Bilstein 24-285308 B8 5100 Front Shock for 2017-2025 Ford F-250/F-350 4WD

Vehicle Fitment

• 2017-2025 Ford F-250 Super Duty (All Trims, 4WD, Front, 4-6" Lift)
• 2017-2025 Ford F-350 Super Duty (All Trims, 4WD, Front, 4-6" Lift)

Features

• Bilstein B8 5100 Series monotube gas-pressurized shock absorber
• Tuned for lifted front suspension (approximately 4-6" lift)
• Velocity-sensitive digressive piston for dynamic damping performance
• Monotube design improves heat dissipation and reduces fade
• Durable zinc-plated finish to resist corrosion
• Smooth body design with 46 mm piston
• Boot supplied for added shaft protection
• Direct bolt-on installation - no modifications required

Specifications

• Part Number: 24-285308
• Series: Bilstein B8 5100
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: 46 mm
• Collapsed Length: 17.17"
• Extended Length: 25.82"
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet
• Boot Included: Yes (black bellows)
• Requires lifted front suspension (not for stock height)

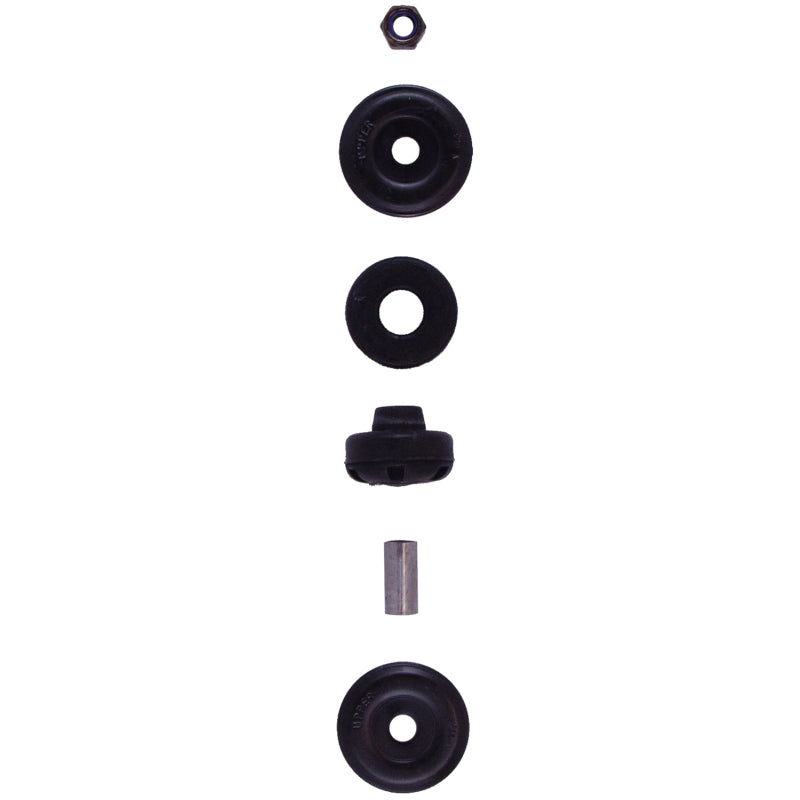

Included Components

• 1x Bilstein B8 5100 Front Shock Absorber (24-285308)
• 1x Protective boot installed

Product Description

The Bilstein 24-285308 B8 5100 Front Shock is engineered as a performance monotube gas-pressurized shock absorber designed for lifted Ford Super Duty trucks. Specifically tuned for front suspensions with about 4-6" of lift, this shock delivers enhanced handling, ride control, and stability over standard factory shocks. The 46 mm piston and velocity-sensitive digressive valving work together to react quickly to changes in terrain, providing smoother performance both on and off the road.

Installation is straightforward with direct OE-style mounts and no trimming or modification required. The durable zinc-plated finish and protective boot contribute to long service life in demanding conditions. Sold individually, it's recommended to install a matching shock on both sides of the axle for balanced suspension performance.
