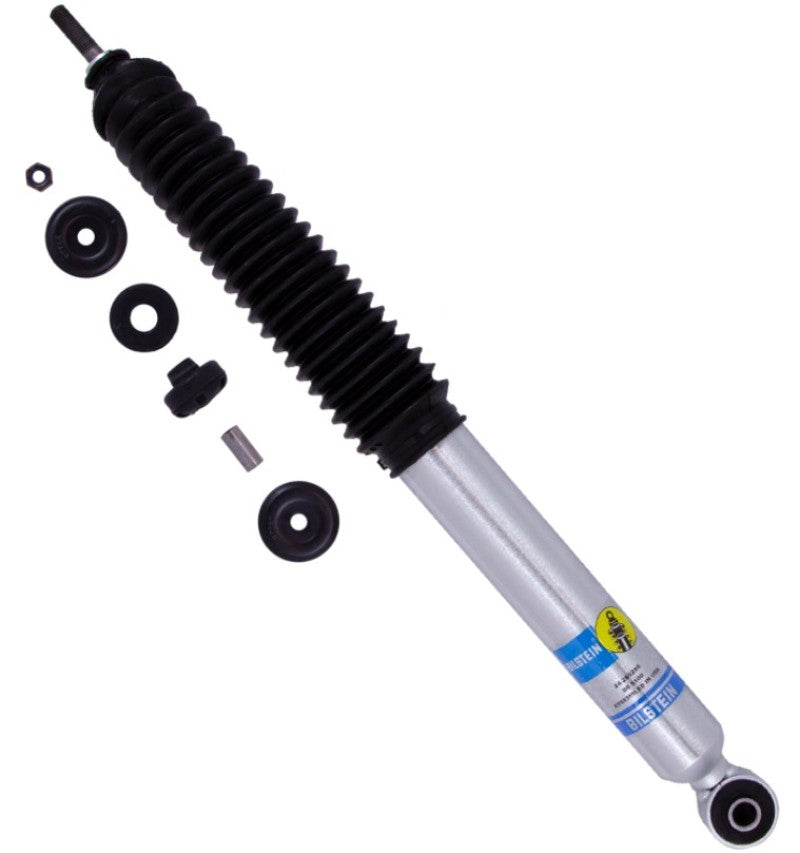

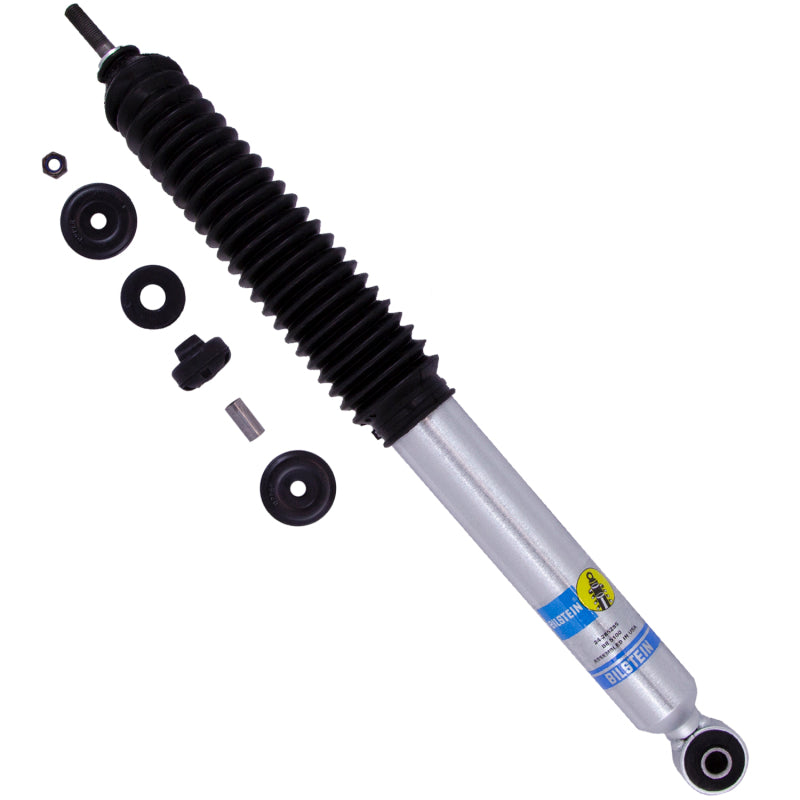

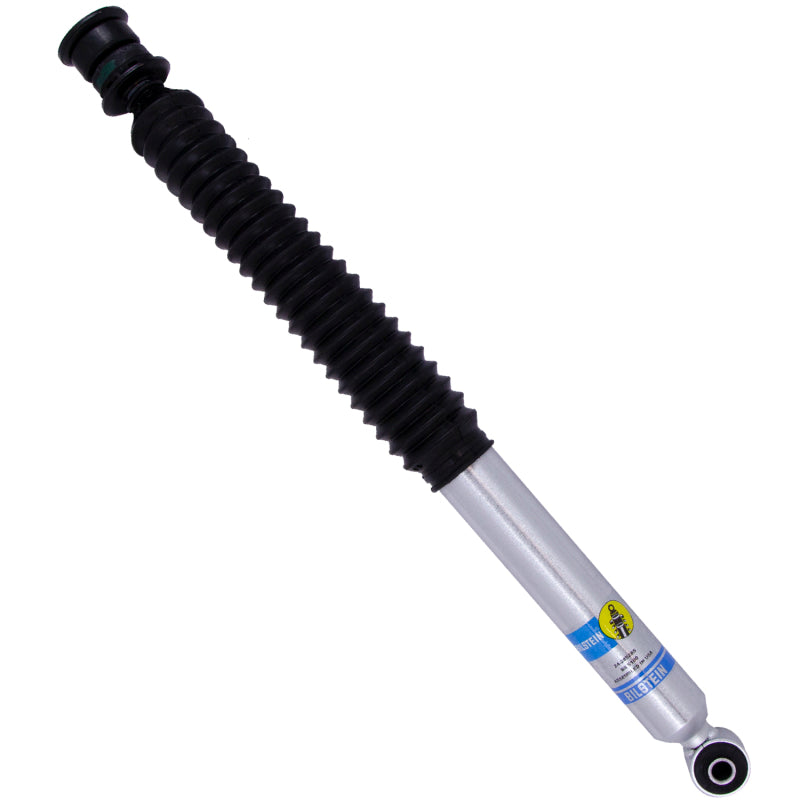

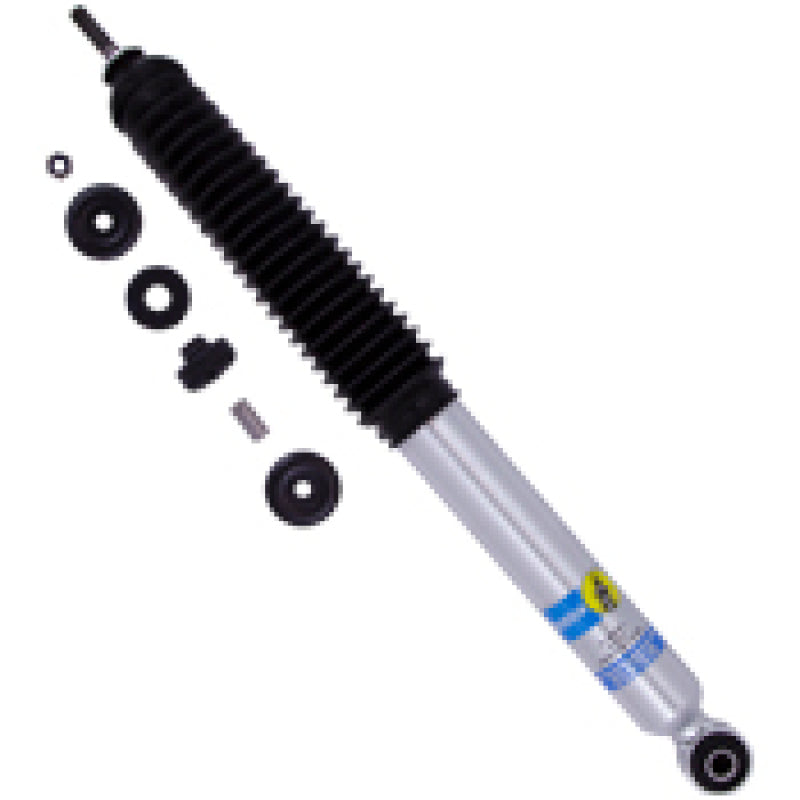

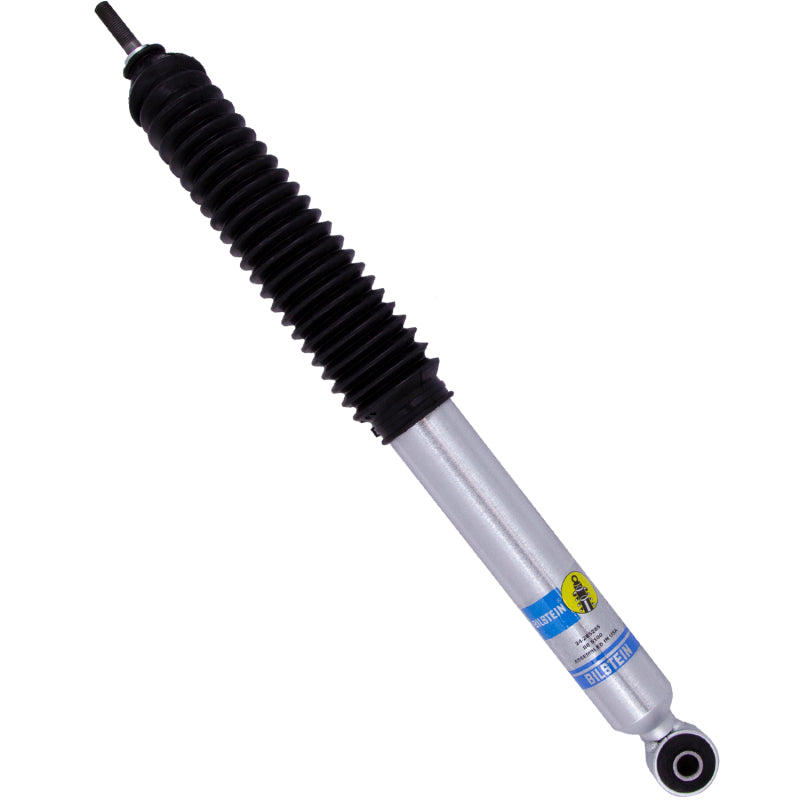

Bilstein 24-285285 B8 5100 Front Shock for 2017-26 Ford F-250/F-350 4WD 4" Lift

Vehicle Fitment

• 2017-2026 Ford F-250 Super Duty (All Trims, 4WD, Front, 4" Lift)
• 2017-2026 Ford F-350 Super Duty (All Trims, 4WD, Front, 4" Lift)

Features

• Bilstein B8 5100 Series monotube gas-pressurized shock absorber
• Specifically tuned for lifted trucks with approximately 4" front lift
• 46 mm piston design for improved handling and damping response
• Velocity sensitive digressive piston technology for consistent control
• Durable zinc-plated finish to resist corrosion and wear
• Direct bolt-on replacement - no trimming or modification required
• Enhanced ride comfort on off-road and uneven surfaces
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-285285
• Series: B8 5100
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: 46 mm
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet
• Extended Length: ~25.75"
• Collapsed Length: ~16.85"
• Boot Included: Yes (Black Bellows)
• Designed for ~4" front lift applications

Included Components

• 1x Bilstein B8 5100 Front Shock Absorber (24-285285)
• Protective boot installed

Product Description

The Bilstein 24-285285 B8 5100 Front Shock is engineered as a performance monotube gas-pressurized replacement shock for lifted Ford Super Duty trucks. Designed for use on the front suspension of 4WD Ford F-250 and F-350 Super Duty models with approximately a 4" front lift, this shock provides enhanced damping control and stability compared to stock units. The 46 mm piston and velocity sensitive digressive valving work together to respond to changing terrain, delivering improved ride quality and handling without sacrificing durability.

This B8 5100 shock installs directly into the OE front mounting locations, making it a straightforward upgrade for lifted trucks without the need for custom modifications. The zinc-plated finish and protective boot help resist corrosion and extend service life. Sold individually, it's recommended to install matching shocks on both sides of the axle for balanced performance and smoother suspension response.
