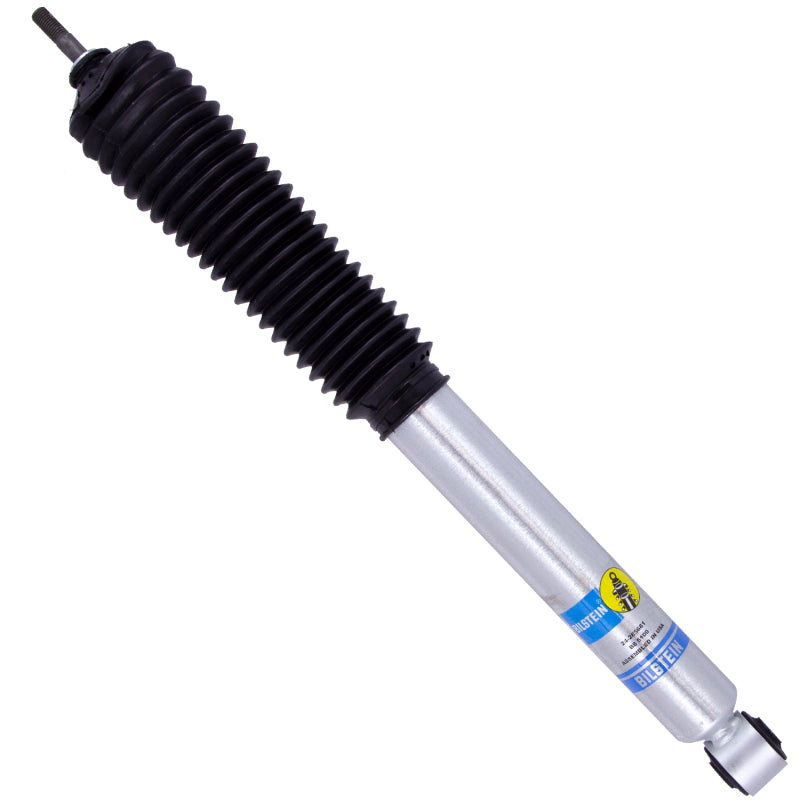

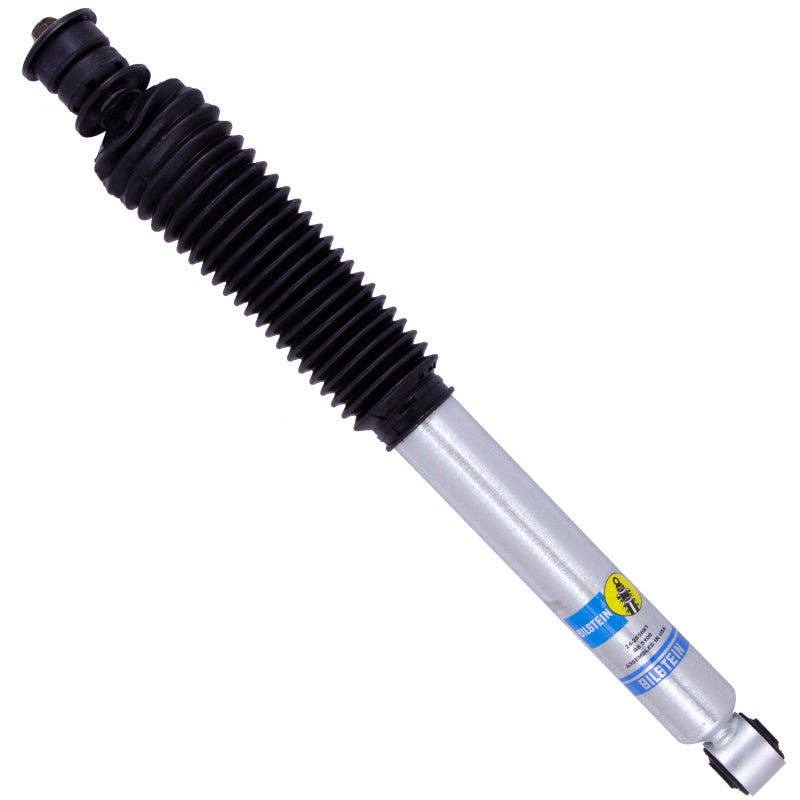

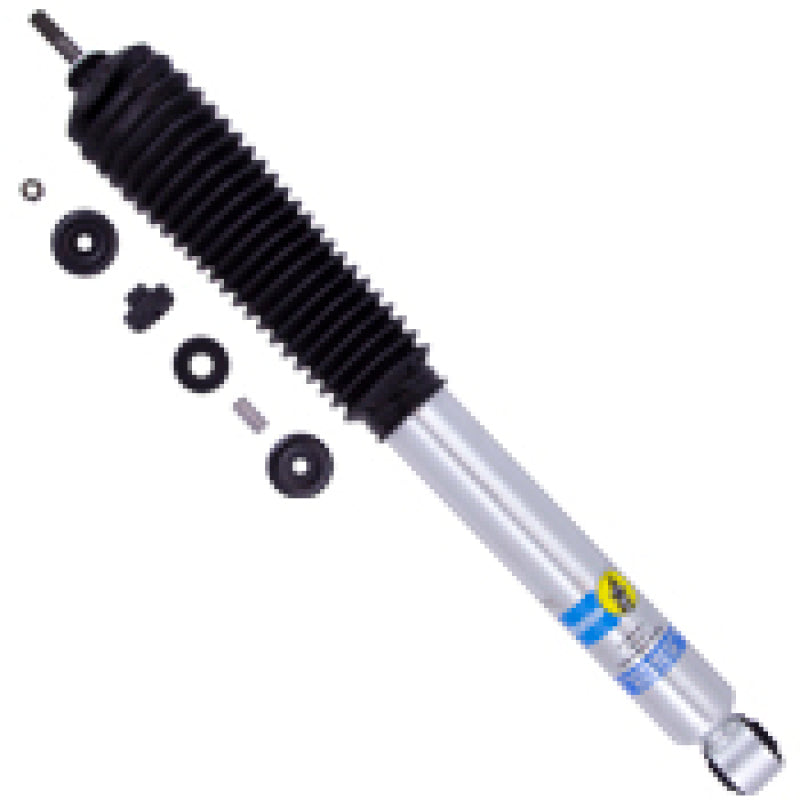

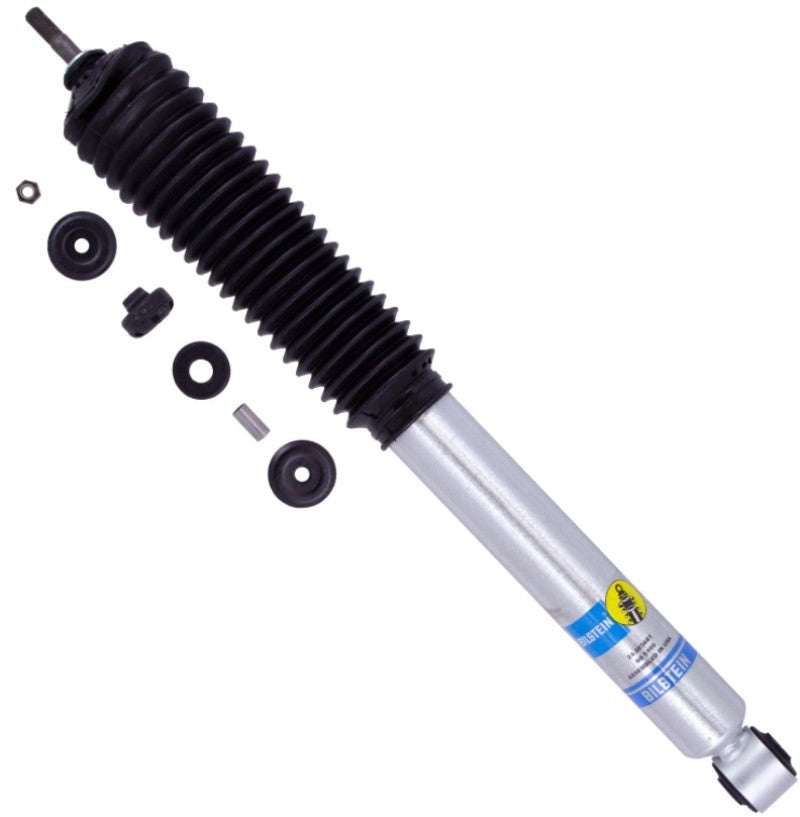

Bilstein 24-285681 B8 5100 Rear Shock for 2014-2025 Ram 2500 4WD 2" Lift

Vehicle Fitment

• 2014-2025 Ram 2500 (All Trims, 4WD, Rear, ~2" Rear Lift)

Features

• Bilstein B8 5100 Series monotube gas-pressurized shock absorber
• Designed for lifted rear suspension (~2") on 4WD Ram 2500 trucks
• Velocity-sensitive digressive piston for consistent damping
• Improved ride quality and handling over stock rear shocks
• Smooth body design with corrosion-resistant zinc finish
• Direct bolt-on replacement with OE-style mounts
• Black bellows protective boot included
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-285681
• Series: B8 5100
• Position: Rear (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: 46 mm
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet (≈14.4 mm)
• Collapsed Length: 16.75" (425.5 mm)
• Extended Length: 26.71" (678.5 mm)
• Boot Included: Yes (black bellows)
• Designed specifically for lifted rear ride height (~2")

Included Components

• 1x Bilstein B8 5100 Rear Shock Absorber (24-285681)
• 1x Protective boot installed

Product Description

The Bilstein 24-285681 B8 5100 Rear Shock Absorber is engineered as a performance monotube gas-pressurized shock specifically tuned for the rear suspension of lifted Ram 2500 4WD trucks. Built with a velocity-sensitive digressive piston and smooth body design, this shock improves damping response and ride quality on vehicles with approximately a 2" rear lift compared to stock shocks.

This rear shock installs directly into the OE mounting locations using existing hardware and does not require modifications. The corrosion-resistant zinc finish and included protective boot help extend service life. Sold individually, it's recommended to install matching shocks on both sides for balanced suspension performance. This unit is not intended for air leveling suspension systems and is designed for lifted applications to maintain proper travel and control.
