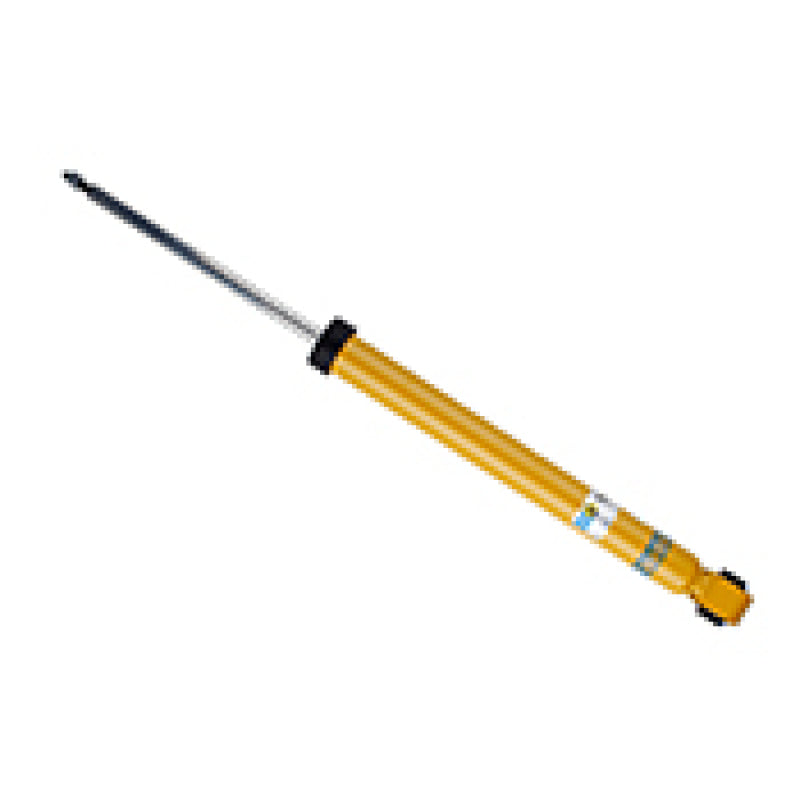

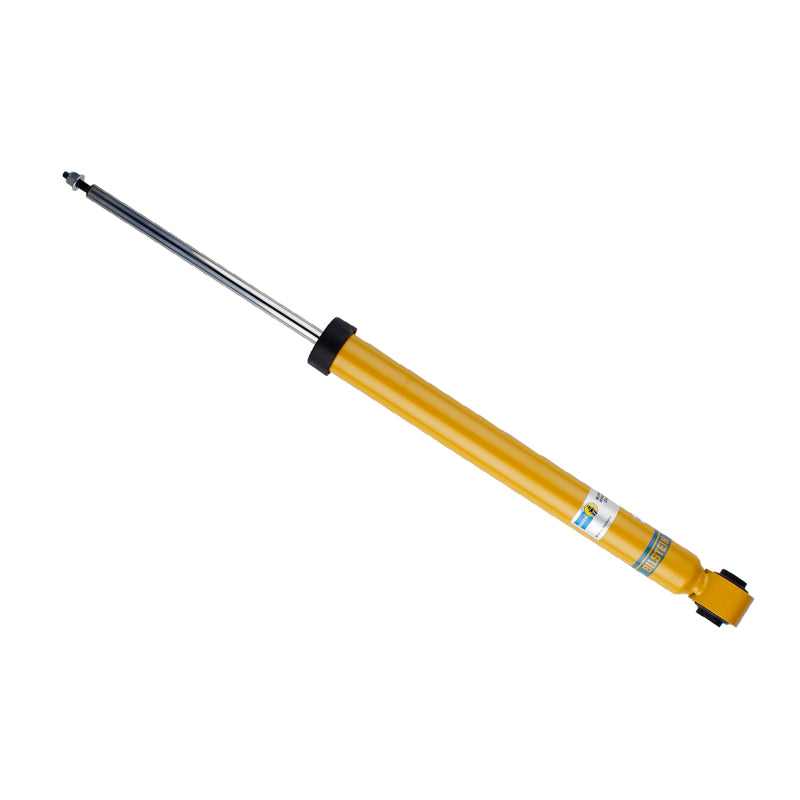

Bilstein 24-291231 B6 Rear Shock for 2017-2024 Mazda CX-5 AWD/FWD

Vehicle Fitment

• 2017-2024 Mazda CX-5 (All Trims, FWD/AWD, Rear)

Features

• Bilstein B6 Series gas-pressurized monotube shock absorber
• Velocity-sensitive digressive piston for improved damping performance
• Direct replacement for OEM rear shocks
• Improved ride quality and handling compared to factory shocks
• Durable yellow corrosion-resistant finish
• Engineered for stock ride height and daily driving conditions
• Consistent performance over varied road conditions
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-291231
• Series: Bilstein B6
• Position: Rear (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet (~14.1 mm)
• Extended Length: 26.21" (665.5 mm)
• Collapsed Length: 16.47" (418.5 mm)
• Boot Included: No

Included Components

• 1x Bilstein B6 Rear Shock Absorber (24-291231)

Product Description

The Bilstein 24-291231 B6 Rear Shock Absorber is engineered as a direct replacement shock for the rear suspension of Mazda CX-5 models built from 2017 through 2024. Featuring Bilstein's gas-pressurized monotube design and velocity-sensitive digressive piston, this shock delivers improved ride quality, damping control, and handling responsiveness over standard factory units. This makes it a strong choice for daily driving, highway cruising, and light load conditions.

Installation is straightforward with a direct bolt-on replacement to the factory rear shock mounts, requiring no modifications. The corrosion-resistant yellow finish helps prolong service life, and the B6 Series tuning ensures consistent performance across varied road surfaces. Sold individually, it's recommended to replace both rear shocks to maintain balanced suspension performance.
