Bilstein 24-186612 B6 Rear Shock Absorber for 2004-2014 Monaco Diplomat/Endeavor

Vehicle Fitment

• 2004-2014 Monaco Diplomat (Class A Motorhome, Roadmaster RR8R Chassis -- Rear)
• 2004-2014 Monaco Endeavor (Class A Motorhome, Roadmaster RR8R Chassis -- Rear)

Fitment Notes

• Rear axle only -- sold individually
• Roadmaster RR8R chassis only -- verify chassis before ordering
• Factory hardware reused -- washers, bushings, and nuts included
• Mounting plates sold separately
• Order 2 per vehicle for complete rear axle replacement

Features

• Bilstein B6 Heavy Duty -- 46mm monotube, application-tuned for RV use
• Comfitrac Working Piston -- instant high-frequency road harshness response
• Velocity-sensitive digressive piston -- reacts to changing road conditions
• Gas pressure monotube -- consistent, fade-free damping
• Eliminates excessive sway and bouncing
• Improves overall vehicle stability and control
• Limited lifetime warranty

Specifications

• Series: B6 Heavy Duty
• Design: 46mm monotube, gas pressure
• Position: Rear
• Overall length: 26.8"
• Width: 2.95"
• Weight: 7.0 lbs.
• Sold as: Single shock
• Warranty: Limited lifetime

Included Components

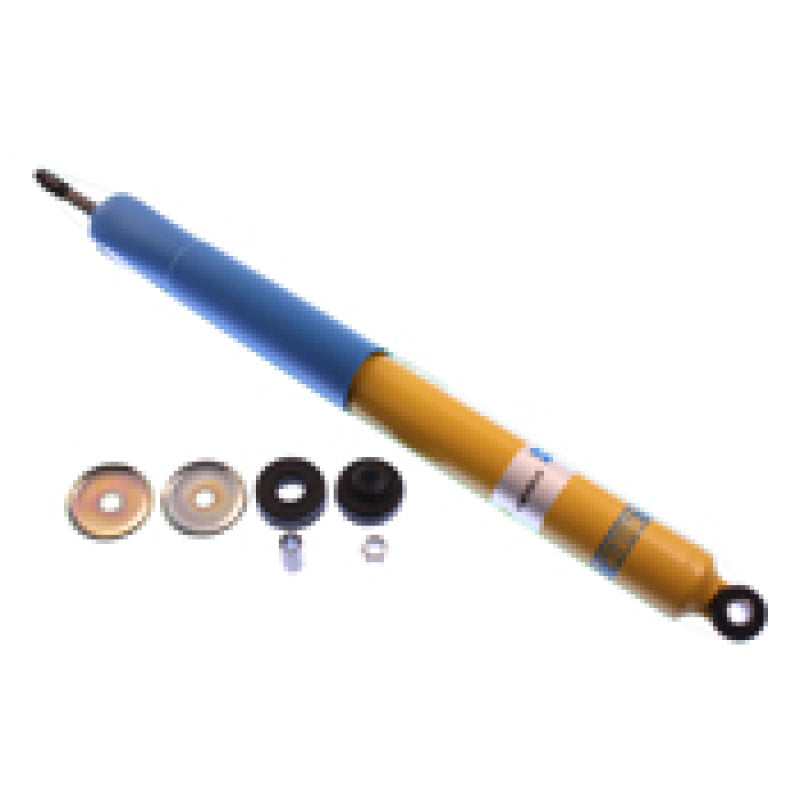

• 1x Bilstein B6 rear shock absorber
• Washers, bushings, and nuts

Product Description

The Bilstein 24-186612 is a B6 Heavy Duty rear shock absorber for the 2004-2014 Monaco Diplomat and Monaco Endeavor Class A motorhomes built on the Roadmaster RR8R chassis. Bilstein engineers each RV shock specifically for the chassis and axle load it will carry -- the 24-186612 is tuned for the RR8R rear suspension geometry and weight characteristics, providing the handling stability and road compliance required for a large Class A platform that generic heavy-duty shocks calibrated for trucks cannot deliver.

The Comfitrac Working Piston instantly reacts to high-frequency road impacts such as expansion joints and potholes -- absorbing the harshness before it transfers to the coach. The 46mm monotube gas pressure design provides consistent, fade-free damping without the thermal fade common in twin-tube designs under sustained use. Roadmaster RR8R chassis only -- verify chassis designation before ordering. Sold individually; order two for complete rear axle replacement. Limited lifetime warranty.
