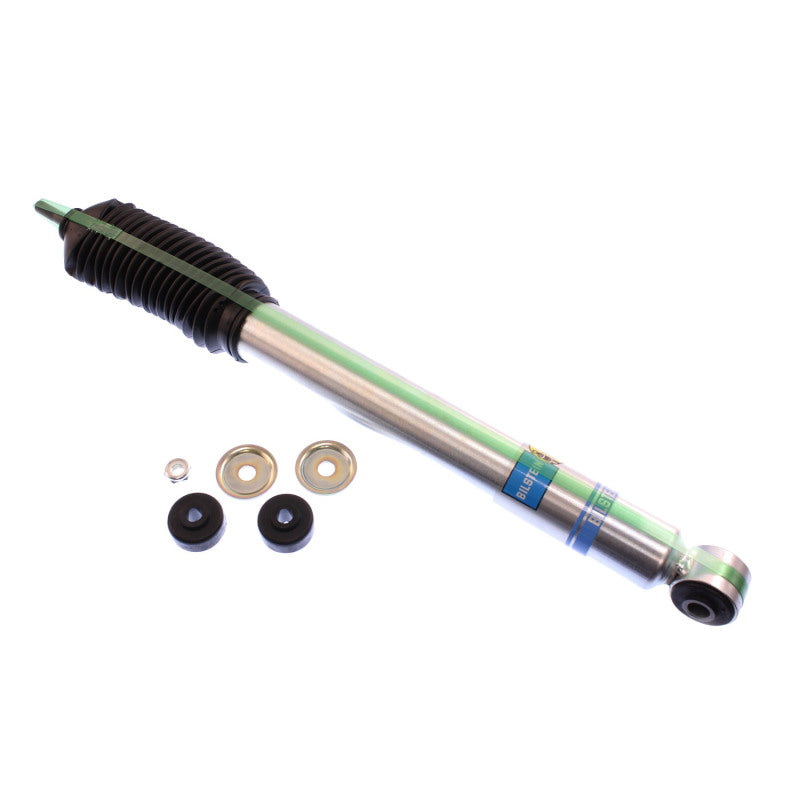

Bilstein 24-186681 B8 5100 Front Shock for 2005-2016 Ford F-250/350 4WD

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty 4WD - Front (with 6" lift)
• 2005-2016 Ford F-350 Super Duty 4WD - Front (with 6" lift)

Features

• Bilstein B8 5100 Series monotube shock absorber
• Velocity-sensitive digressive piston for responsive dampening
• High-pressure gas charge ensures consistent performance under load
• Designed for lifted 4WD truck front suspension applications
• 46 mm monotube body for improved heat dissipation and durability
• Zinc-plated corrosion-resistant finish for long service life
• Direct replacement for compatible lifted Ford Super Duty models
• Improves ride quality, handling, and control on lifted trucks

Specifications

• Part Number: 24-186681
• Series: Bilstein B8 5100
• Position: Front
• Internal Design: Gas-pressurized monotube
• Body Diameter: 46 mm
• Collapsed Length: 16.33 in (414.8 mm)
• Extended Length: 26.61 in (676 mm)
• Upper Mount Type: Stem
• Lower Mount Type: Eye (~14.4 mm)
• Boot Included: Black bellows protective boot
• Spring Seat Included: No
• Quantity Sold: Each (2 recommended per vehicle)

Included Components

• 1x Bilstein B8 5100 Front Shock Absorber (24-186681)
• 1x Protective black bellows boot

Product Description

The Bilstein 24-186681 B8 5100 Front Shock Absorber is engineered specifically for lifted Ford Super Duty trucks. Designed for use with approximately 6" of front suspension lift on 2005-2016 Ford F-250 and F-350 4WD models, this shock delivers consistent, fade-free performance under demanding conditions. Its high-pressure gas-charged monotube construction and velocity-sensitive digressive piston provide responsive damping and superior control on both highway and off-road surfaces.

With a robust 46 mm monotube body and corrosion-resistant zinc-plated finish, this Bilstein shock is built for durability and long-term reliability. The protective black bellows boot guards against debris, while direct replacement fitment ensures a straightforward installation with no modifications required on compatible lifted trucks. When installed as a pair, these shocks help improve ride quality, handling, and overall suspension performance on lifted F-250 and F-350 4WD Super Duty pickups.
