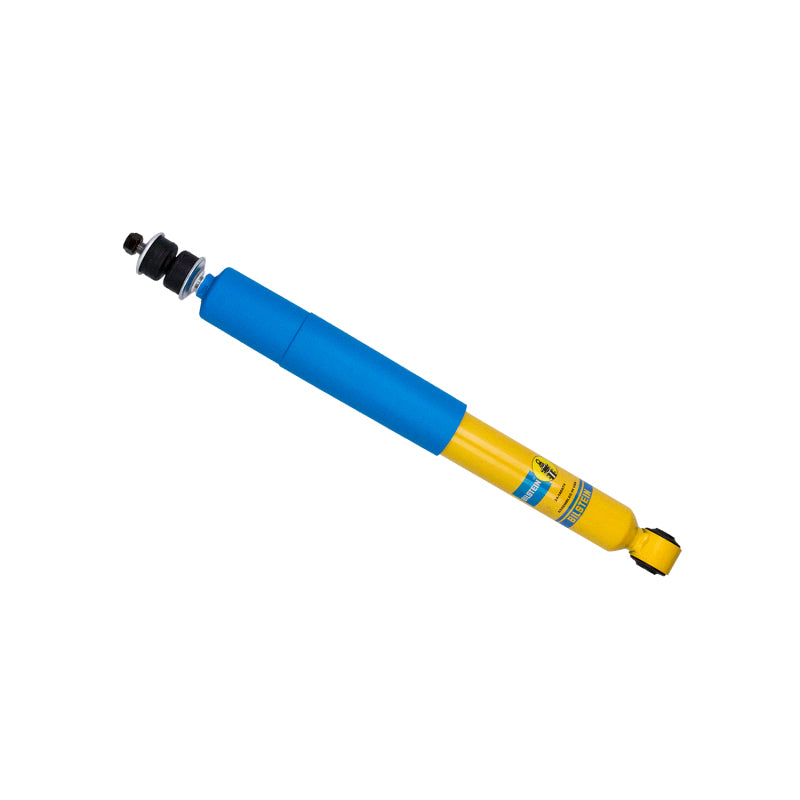

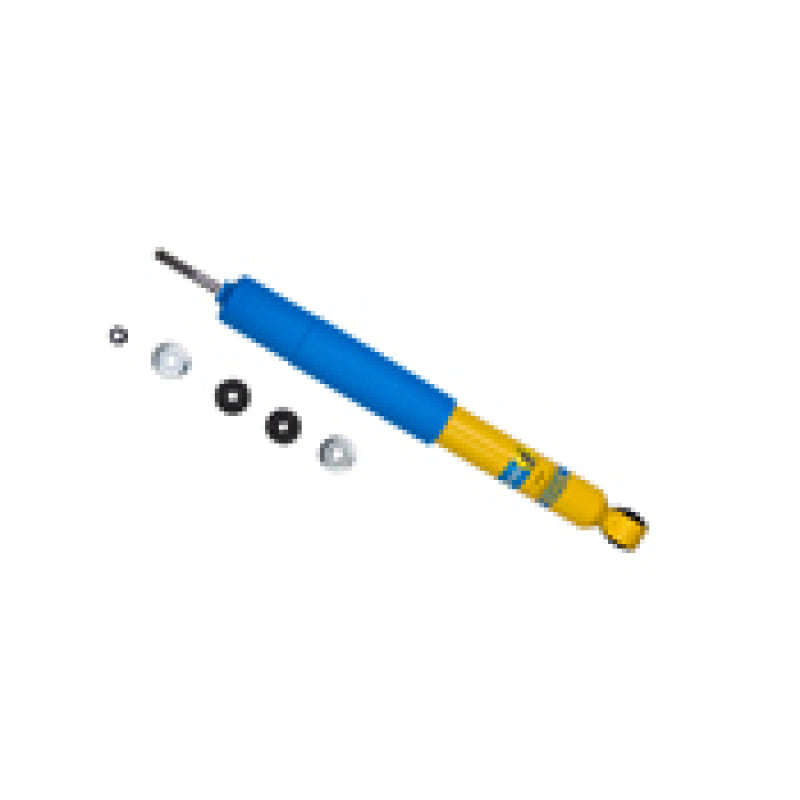

Bilstein 24-186674 B6 4600 Front Shock Absorber for 05-16 Ford F250/F350/F450

Vehicle Fitment

• 2005-2016 Ford F-250 Super Duty - 4WD
• 2005-2016 Ford F-350 Super Duty - 4WD
• 2005-2014 Ford F-450 Super Duty - 4WD
• 2005-2012 Ford F-550 Super Duty - 4WD

Fitment Notes

• Front axle position only
• 4WD models only
• Stock ride height (0" lift) applications only
• Does NOT fit cab & chassis vehicles
• Companion rear shock: Bilstein 24-185981
• OE cross-references: 5C3Z18124FA, 5C3Z18124NA, 5C3Z18124RA, 5C3Z18124TA, 5C3Z18124VA, 6C3Z18124PBA, 7C3Z18124PDA, 7C3Z18124PGA, BC3Z18124H, BC3Z18124N, BC3Z18124R, BC3Z18124Z

Features

• B6 4600 Series -- direct-fit OE upgrade shock absorber
• 46mm monotube design for fade-free damping performance
• High-pressure nitrogen gas charge prevents oil foaming
• Velocity-sensitive digressive piston adjusts to road conditions
• Application-specific valving tuned for Ford Super Duty
• Durable steel body with yellow corrosion-resistant coating
• Blue straight dust boot protects chrome piston shaft
• Direct bolt-on installation to factory mounting points

Specifications

• Part number: Bilstein 24-186674
• Series: B6 4600
• Type: Monotube shock absorber
• Position: Front
• Piston diameter: 46mm
• Upper mount: Stem
• Lower mount: Eye (14.4mm)
• Adjustable damping: No
• Reservoir: No
• Finish: Yellow paint
• Boot: Blue straight
• Weight: 4.8 lbs
• UPC: 651860492964
• Warranty: Limited lifetime (original purchaser)
• Sold individually

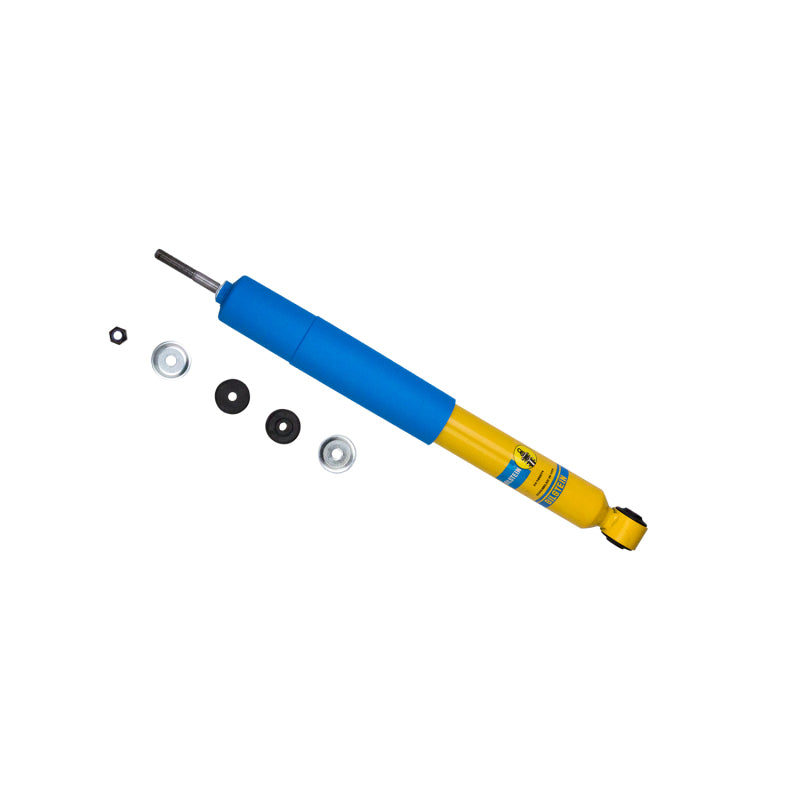

Included Components

• (1) Bilstein B6 4600 front shock absorber
• Lower spring mount
• Dust boot (pre-installed)

Product Description

The Bilstein 24-186674 is a B6 4600 Series front shock absorber designed as a direct-fit OE upgrade for 2005-2016 Ford F-250 and F-350 Super Duty 4WD trucks. It also fits the F-450 Super Duty through 2014 and the F-550 Super Duty through 2012, all in 4WD configuration. Built around Bilstein's proven 46mm monotube design, this shock uses a high-pressure nitrogen gas charge to prevent oil foaming and maintain consistent damping performance under heavy loads and sustained use. The velocity-sensitive digressive piston automatically adjusts damping force based on road conditions, delivering firm control over large inputs while allowing compliance over smaller bumps for a comfortable ride. Each unit is individually tuned and valved specifically for the Ford Super Duty platform to optimize ride quality, handling, and stability at stock ride height. The durable steel body features Bilstein's signature yellow corrosion-resistant coating, and a blue straight dust boot protects the chrome piston shaft from debris and pitting. Installation is a direct bolt-on to factory front mounting points with no modifications required. Backed by Bilstein's limited lifetime warranty for the original purchaser, the 24-186674 is sold individually and pairs with the 24-185981 rear shock for a complete B6 4600 upgrade.
