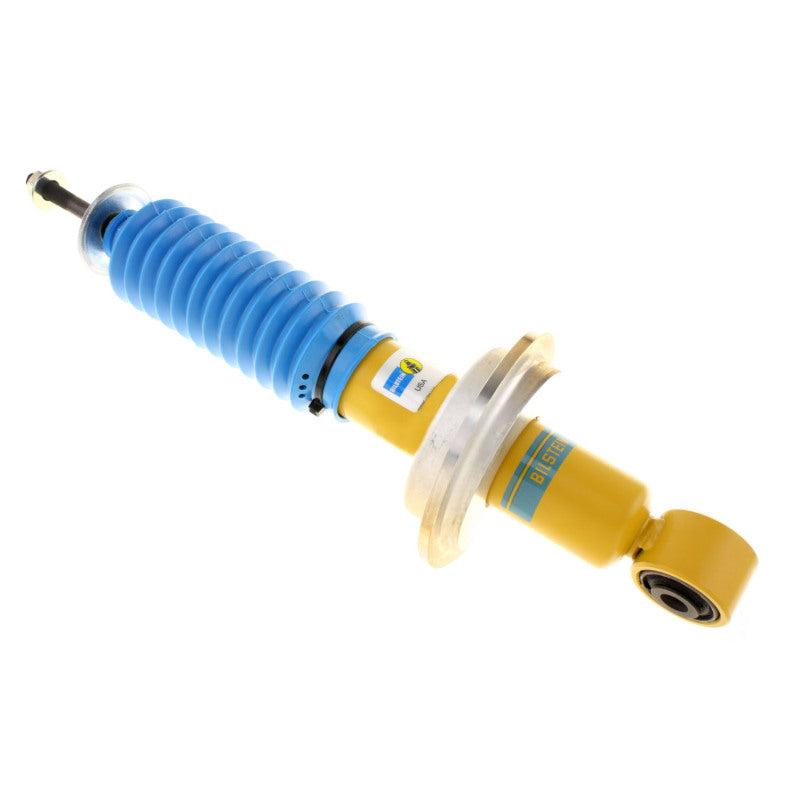

Bilstein 24-197656 B6 4600 Front Shock for 2004-2015 Nissan Titan/Armada/QX56

Vehicle Fitment

• 2004-2015 Nissan Titan 2WD/4WD (King Cab, Crew Cab)
• 2005-2015 Nissan Armada 2WD/4WD
• 2004 Nissan Pathfinder Armada
• 2004-2010 Infiniti QX56

Fitment Notes

• Front position -- fits left or right side, 2WD and 4WD models
• Designed for stock ride height only -- does NOT provide lift
• Direct OE replacement -- bolt-on installation with no modifications required
• Upper mount style: Stem
• Lower mount style: Eyelet (14.2mm)
• Includes snap ring grooved body with lower spring seat
• Sold individually -- two required for a complete front upgrade
• Companion rear shock (Titan 2WD): Bilstein 24-185967
• Companion rear shock (Titan 4WD / Armada / QX56): Bilstein 24-116244

Features

• B6 4600 Series -- Bilstein's premium direct-fit OE upgrade for trucks and SUVs
• 46mm monotube gas pressure design for consistent fade-free damping
• Velocity-sensitive digressive piston reacts automatically to changing road conditions
• Application-specific valving tuned for the Nissan Titan platform
• Larger working piston than twin-tube designs for increased damping force
• Superior heat dissipation through single-tube body construction
• Floating dividing piston prevents oil foaming under sustained heavy use
• Improved ride quality, handling, and stability vs. factory shocks
• Ideal for towing, hauling, and heavy load applications
• Corrosion-resistant yellow zinc finish
• Blue protective dust boot included

Specifications

• Part Number: 24-197656
• Brand: Bilstein
• Series: B6 4600
• Type: Front Shock Absorber
• Internal Design: Monotube
• Piston Diameter: 46mm
• Gas Charged: Yes
• Adjustable Valving: No
• Extended Length: 15.37"
• Compressed Length: 11.13"
• Upper Mount: Stem
• Lower Mount: Eyelet (14.2mm)
• Bushing Material: Rubber (Black)
• Finish: Yellow Zinc Coating
• Boot Included: Yes (Blue)
• Spring Seat Included: Yes (Lower)
• Ride Height: Stock (0" Lift)
• UPC: 651860681221
• Sold: Individually
• Warranty: Limited Lifetime

Included Components

• One (1) Bilstein B6 4600 front monotube shock absorber
• Lower spring seat
• Blue protective dust boot
• Rubber mounting bushings

Product Description

The Bilstein 24-197656 B6 4600 is a direct-fit front shock absorber upgrade for the 2004-2015 Nissan Titan, 2005-2015 Armada, 2004 Pathfinder Armada, and 2004-2010 Infiniti QX56. This 46mm monotube gas pressure shock features Bilstein's velocity-sensitive digressive piston valving that reacts automatically to changing road conditions, delivering fade-free damping with improved ride quality, handling, and stability over factory shocks. The floating dividing piston prevents oil foaming under heavy use, while the larger working piston provides greater damping force and better heat dissipation than twin-tube designs. Fits both 2WD and 4WD models at stock ride height. Sold individually -- rear shocks differ by drivetrain: pair with Bilstein 24-185967 (2WD) or 24-116244 (4WD/Armada/QX56).
