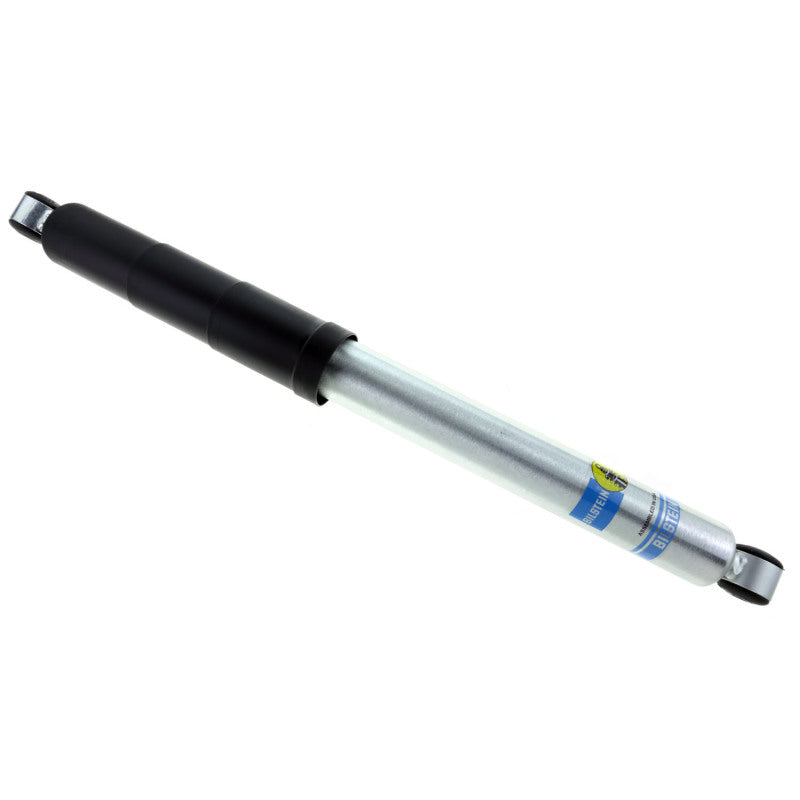

Bilstein 24-186704 B8 5100 Rear Shock for 2004-2008 Ford F-150 2WD

Vehicle Fitment

• 2004-2008 Ford F-150 (2WD, Rear Position)
• 2006-2008 Lincoln Mark LT (2WD, Rear Position)

Features

• Bilstein B8 5100 Series monotube rear shock absorber
• Velocity-sensitive digressive piston for responsive damping
• Designed for improved ride quality and handling over OEM
• High-pressure gas-charged design for consistent performance
• 46 mm monotube body for fade-free operation
• Zinc-plated corrosion-resistant finish for long service life
• Direct OE replacement with bolt-on installation
• Suitable for stock to light-lift truck applications

Specifications

• Part Number: 24-186704
• Series: Bilstein B8 5100 Rear Shock
• Position: Rear
• Internal Design: Gas-pressurized monotube
• Body Diameter: 46 mm
• Collapsed Length: ~15.31 in (389 mm)
• Extended Length: ~24.94 in (633.5 mm)
• Upper Mount Type: Eye (≈12 mm)
• Lower Mount Type: Eye (≈12 mm)
• Boot Included: Protective boot
• Spring Seat Included: No
• Sold Individually (2 recommended for most vehicles)

Included Components

• 1x Bilstein B8 5100 Rear Shock Absorber (24-186704)
• 1x Protective boot

Product Description

The Bilstein 24-186704 B8 5100 Rear Shock Absorber is engineered as a direct-fit replacement for the rear suspension on 2004-2008 Ford F-150 2WD trucks and 2006-2008 Lincoln Mark LT 2WD models. Built with Bilstein's monotube design and high-pressure gas charge, this shock delivers improved stability, ride quality, and control compared to worn factory shocks.

Featuring a velocity-sensitive digressive piston and a robust 46 mm body, the B8 5100 rear shock responds instantly to changing road and load conditions, offering consistent damping performance. The zinc-plated finish protects against corrosion, while the bolt-on design ensures straightforward installation. Ideal for trucks used in daily driving, towing, and light off-road conditions, this rear shock helps restore confident handling and a smoother ride. Sold individually, two shocks are typically installed per vehicle for balanced suspension performance.
