Bilstein 25-311310 B8 5160 Remote Reservoir Rear Left Shock 96-02 Toyota 4Runner

Vehicle Fitment

• 1996-2002 Toyota 4Runner (3rd Generation, 4WD - All Trims: SR5, Limited) - Rear Left

Fitment Notes

• 4WD models only - this is the rear LEFT (driver side) shock absorber. The companion rear RIGHT is Bilstein 25-311303. Order both for a complete rear axle set.
• 3rd-generation Toyota 4Runner (1996-2002) only - not compatible with 4th-gen (2003-2009) or 5th-gen (2010-2024) 4Runner.
• Designed for 0-2.5 inches of rear lift - for use with lifted rear springs or coils in this range. Rear shocks alone do not provide lift; appropriate rear lift springs are required separately.
• Reservoir mount/bracket is included in the box. An optional billet aluminum reservoir clamp (sold separately) is available for a cleaner installation.
• Unique 360° swivel banjo hose fitting allows full rotation of the reservoir line for flexible, clean routing.

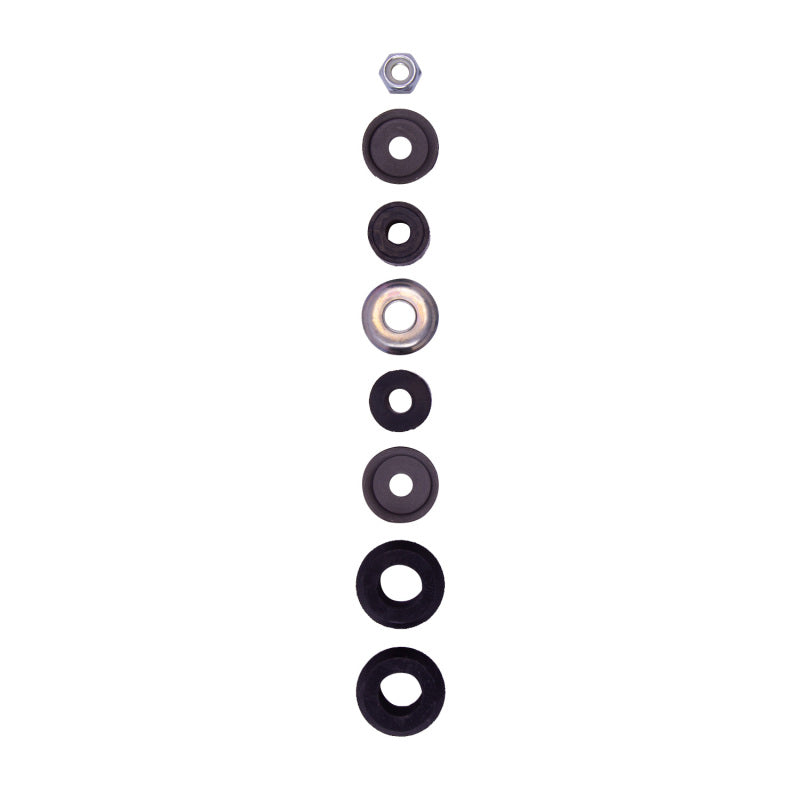

• Factory shock mounting hardware is reused for installation.
• Pairs with Bilstein 47-310872 B8 6112 front coilovers for a complete 0-2.6" four-corner lift kit.

Features

• Bilstein B8 5160 Remote Reservoir - Bilstein's direct-fit remote reservoir monotube shock for serious off-roaders, bringing race-developed remote reservoir technology to the 3rd-gen 4Runner in a bolt-on package at the OE mounting locations.
• External remote reservoir increases oil capacity and heat dissipation dramatically versus standard monotube shocks - maintaining consistent damping performance under sustained, repeated off-road impacts that cause traditional shocks to fade.
• 46mm monotube gas pressure design with velocity-sensitive digressive valve settings tuned specifically for the 3rd-gen 4Runner's rear suspension geometry and lifted use cases.
• Increases wheel travel on most applications versus a traditional shock, improving articulation and compliance over rough terrain.
• 360° swivel banjo hose fitting allows the reservoir line to be routed cleanly in any direction without kinking or stress.
• Zinc-plated finish for corrosion resistance. Made in the USA.

Specifications

• Part Number: 25-311310
• Series: Bilstein B8 5160 (Remote Reservoir)
• Position: Rear Left (Driver Side)
• Internal Design: 46mm Monotube Gas Pressure
• Upper Mount Type: Stem
• Lower Mount Type: Eye 19mm
• Extended Length: 20.70"
• Collapsed Length: 12.91"
• Rear Lift Range: 0-2.5"
• Finish: Zinc Plated
• Country of Origin: USA
• Weight: 8 lbs
• Package Dimensions: 22.0" L x 4.0" W x 4.0" H
• Reservoir Fitting: 360° Swivel Banjo
• Companion Rear Right: 25-311303
• Warranty: 90 Days (against manufacturer defects)

Included Components

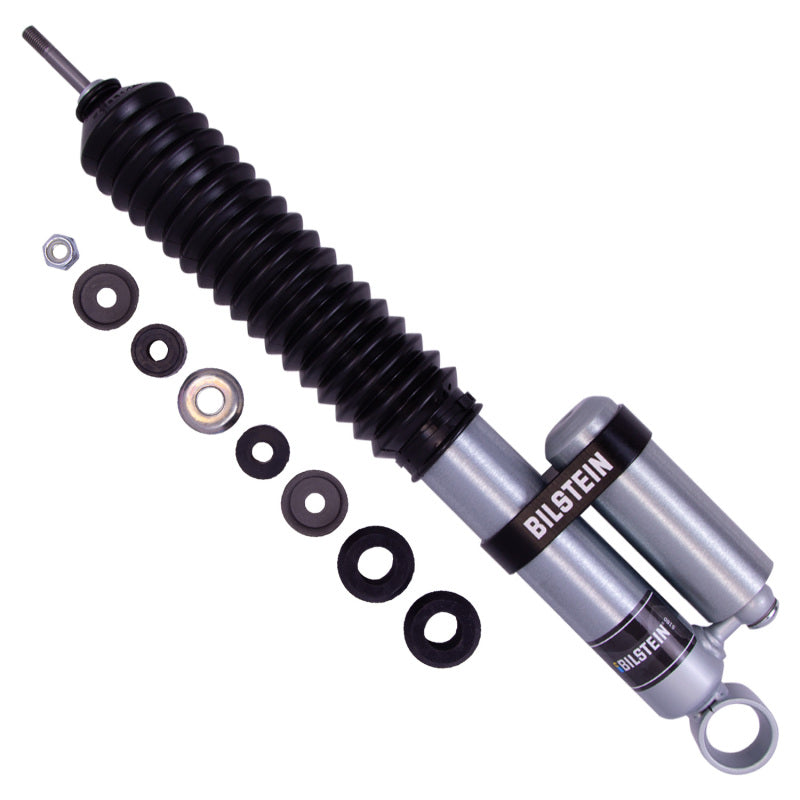

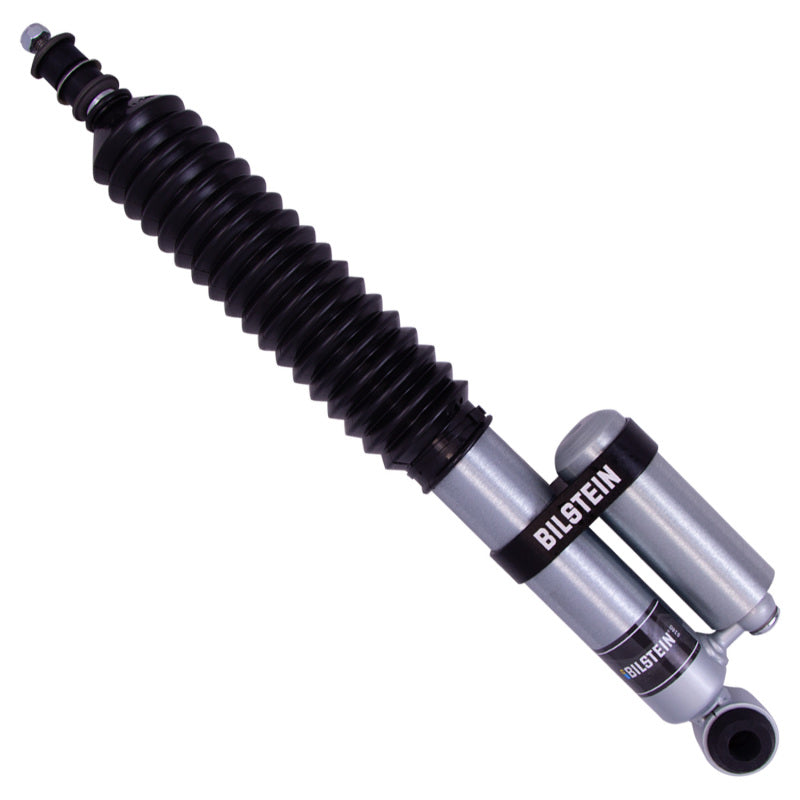

• 1x Bilstein B8 5160 Rear Left Remote Reservoir Monotube Shock Absorber (25-311310)
• 1x Remote Reservoir with mounting bracket/hardware
• 360° swivel banjo hose fitting (pre-installed)

Product Description

The Bilstein 25-311310 is a B8 5160 remote reservoir rear left shock absorber for the 1996-2002 Toyota 4Runner (3rd generation) in 4WD configuration, designed for 0-2.5 inches of rear lift. The B8 5160 is Bilstein's direct-fit remote reservoir line - the same core technology used in off-road racing, packaged for bolt-on installation at the 3rd-gen 4Runner's stock rear mounting locations. For serious 4Runner off-roaders who want significantly more damping control, heat resistance, and wheel travel than a standard shock can provide, the 5160's remote reservoir is the defining upgrade.

The external reservoir substantially increases oil volume and heat dissipation capacity - the key limitation of non-reservoir shocks in sustained off-road use where repeated high-speed compressions build heat that degrades damping performance. The 360° swivel banjo hose fitting allows the reservoir to be routed cleanly in any direction, and the mounting bracket is included. Note that rear shocks alone do not provide lift - appropriate rear lift springs in the 0-2.5" range must be installed separately. For a complete front and rear upgrade, pair with the Bilstein 47-310872 B8 6112 front coilover kit. Order the companion right side (25-311303) for a complete rear axle replacement. Backed by Bilstein's 90-day warranty against manufacturer defects.
