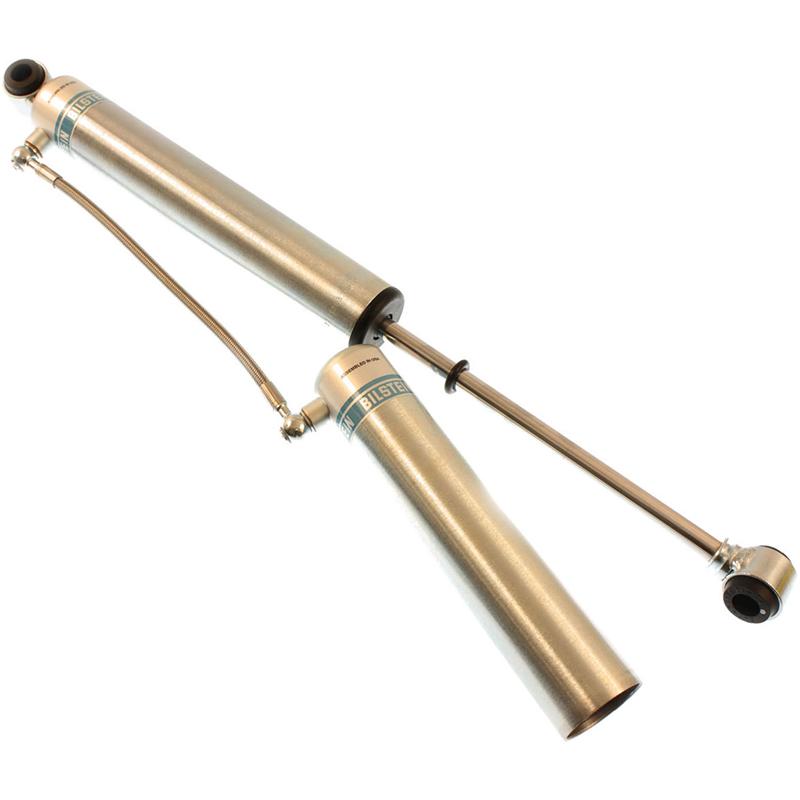

Bilstein 25-176124 B8 5165 Remote Reservoir Shock, 14.21"-23.6" E/E

Vehicle Fitment

• Universal fitment for custom-lifted trucks and SUVs matching this shock's collapsed/extended length and eye-to-eye mount configuration

Fitment Notes

• Not sold or marketed for OEM/direct-fit applications - intended for custom builds, aftermarket lift kits, or fabricated mounting
• Verify collapsed length, extended length, and travel against your specific build requirements before ordering
• Sold individually

Features

• Bilstein's monotube design with remote reservoir for greater oil capacity
• Increased heat dissipation and damping sensitivity vs. non-reservoir shocks
• Swivel banjo fitting on reservoir hose allows 360° rotation
• Floating dividing piston located in the reservoir for increased wheel travel
• 46mm digressive piston with self-adjusting valve, reacts instantly to varying terrain
• Zinc finish with multi-layer Bilstein coating for corrosion protection
• Includes reservoir mounting kit and detailed instructions

Specifications

• Collapsed length: 14.21"
• Extended length: 23.6"
• Travel: 9.39"
• Mount type: Eye-to-eye (5/8" upper and lower)
• Valve rating: 170/60

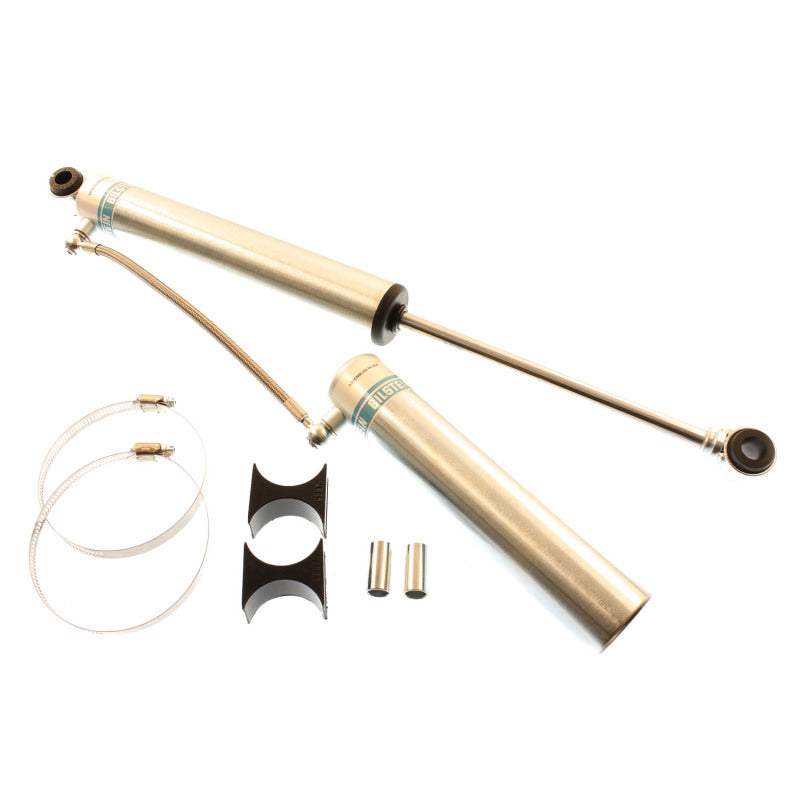

Included Components

• 1x Bilstein B8 5165 remote reservoir shock absorber

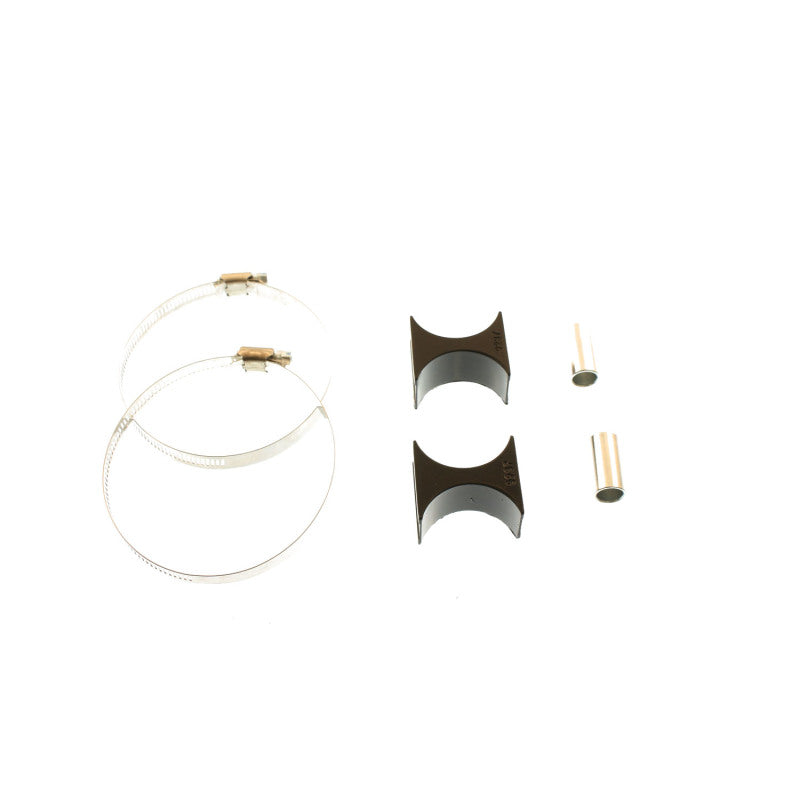

• Reservoir mounting kit and installation instructions

Product Description

The Bilstein 25-176124 B8 5165 is a universal-fit remote reservoir shock built for custom lifted trucks and SUVs rather than a specific factory application, using the same core technology as Bilstein's bolt-on 5160 series. The remote reservoir dramatically increases oil capacity for improved heat dissipation and damping sensitivity, while a swivel banjo fitting on the reservoir hose allows a full 360° of rotation for flexible mounting on custom builds.

A 46mm digressive piston with a self-adjusting valve reacts instantly to changing terrain, and the floating dividing piston housed in the reservoir keeps piston travel unrestricted for greater wheel articulation. Since Bilstein doesn't market this shock for OEM applications, fitment responsibility falls to the builder - collapsed length, extended length, and mount configuration should be confirmed against the vehicle's suspension geometry before ordering.
