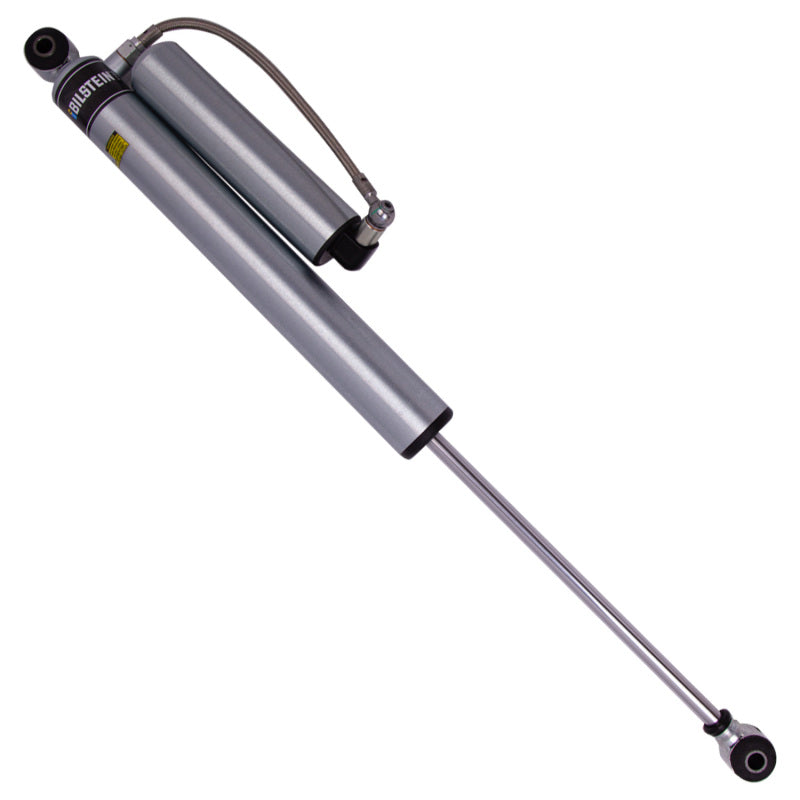

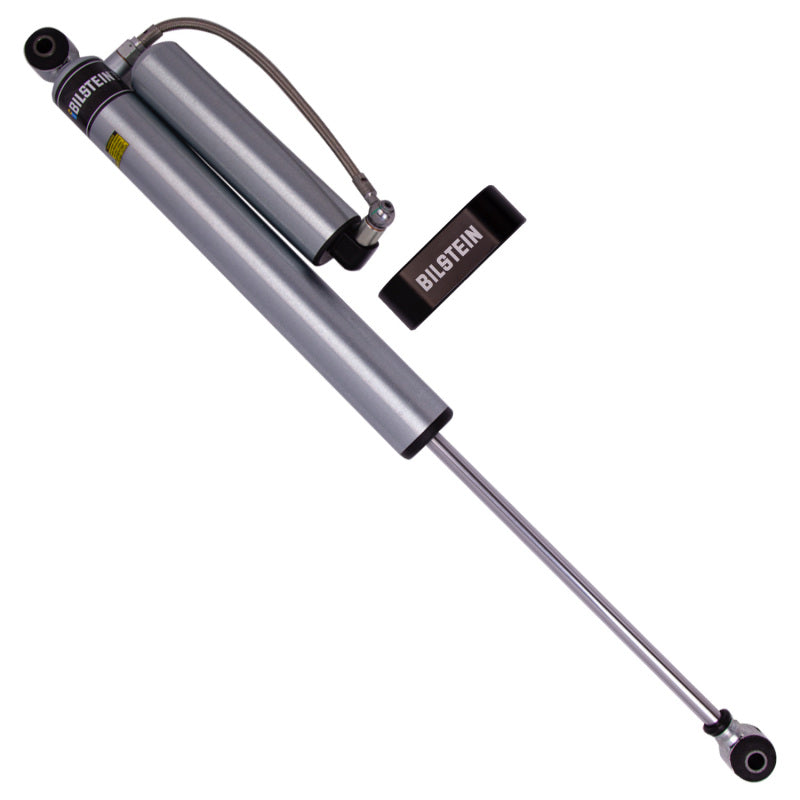

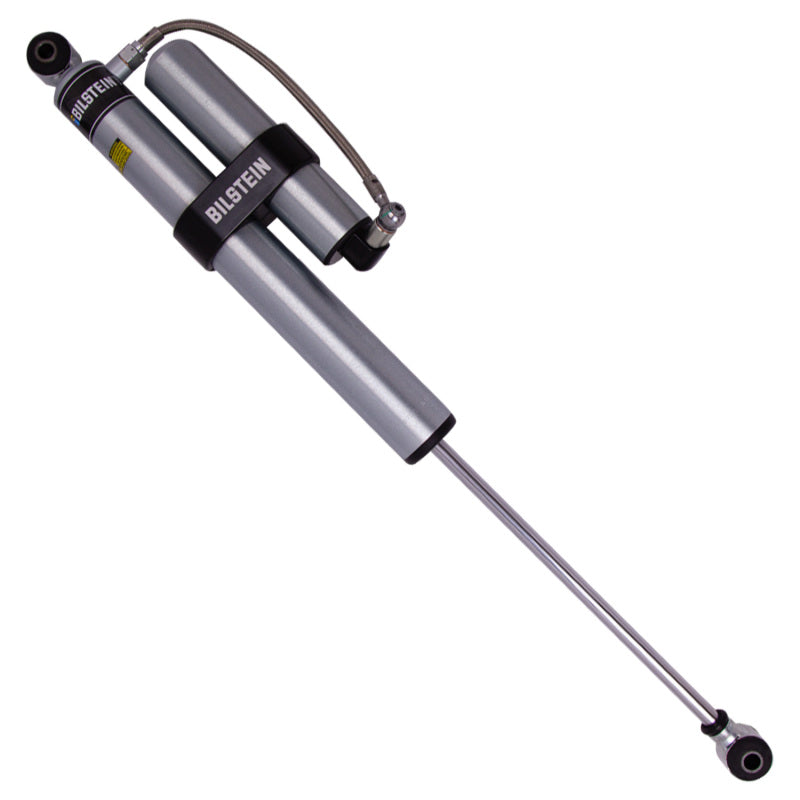

Bilstein 25-311372 B8 5160 Rear Shock w/Res for 15-26 Ford F-150 4WD w/0-2" Lift

Vehicle Fitment

2015-2026 Ford F-150 4WD

Fitment Notes

• Rear axle application
• Fits 0-2" rear lift
• Excludes Raptor models
• Sold individually - order 2 for complete rear
• Bolt-on installation, no drilling required

Features

• B8 5160 Series remote reservoir shock absorber
• 46mm monotube body for fade-free performance
• Digressive valving tuned for F-150 applications
• External reservoir increases oil capacity and cooling
• 360-degree swivel banjo hose fitting for clean installation
• Zinc-plated body for corrosion resistance
• Floating dividing piston increases wheel travel
• Billet reservoir mount included

Specifications

• Brand: Bilstein
• Part Number: 25-311372
• Series: B8 5160
• Type: Rear Shock Absorber
• Design: Monotube with Remote Reservoir
• Body Diameter: 46mm
• Extended Length: 29.50"
• Collapsed Length: 17.52"
• Upper Mount: Eye (12mm)
• Lower Mount: Eye (12mm)
• Finish: Zinc Plated
• Reservoir: Yes
• Quantity: Each (1 shock)
• Lift Height: 0-2" Rear
• UPC: 651860892894
• Warranty: Bilstein Limited Lifetime Warranty
• Made in Germany

Included Components

• (1) Bilstein B8 5160 rear shock absorber
• (1) Remote reservoir with hose

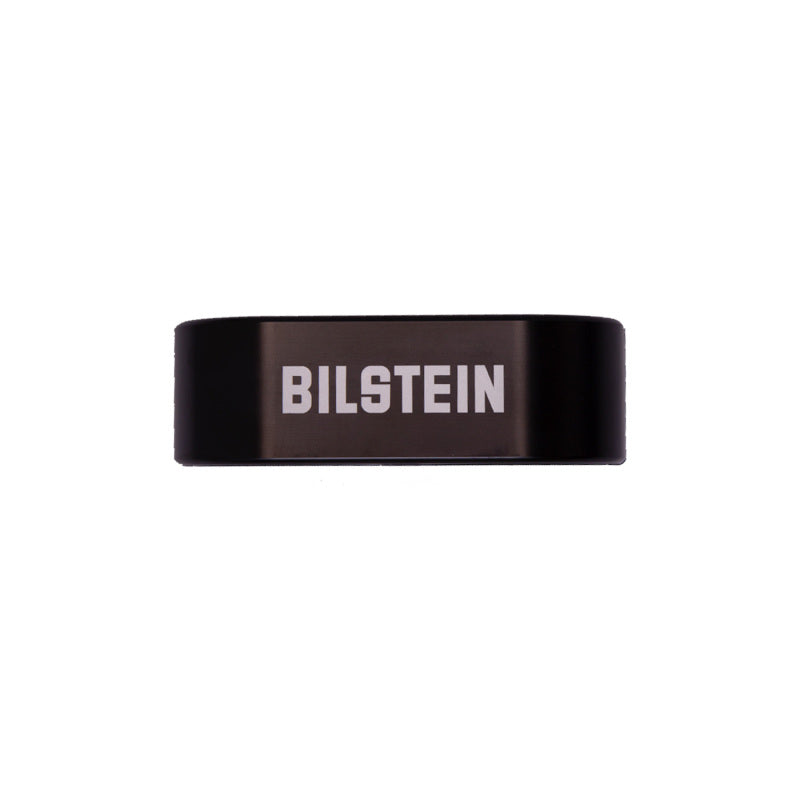

• (1) Billet reservoir mount
• (1) Mounting hardware (washers, bushings, nuts)

Product Description

The Bilstein 25-311372 B8 5160 Series rear shock absorber delivers premium off-road performance for 2015-2025 Ford F-150 4WD trucks with up to 2 inches of rear lift. The 46mm monotube body features velocity-sensitive digressive valving specifically tuned for F-150 applications. The external reservoir dramatically increases oil capacity for superior heat dissipation and consistent damping during demanding use. A floating dividing piston provides increased wheel travel and shaft movement, while the 360-degree swivel banjo fitting ensures clean routing. Direct bolt-on installation with included billet reservoir mount.
