Bilstein 25-311402 B8 5160 Rear Left Remote Reservoir Shock 08-21 Land Cruiser

Vehicle Fitment

• 2008-2021 Toyota Land Cruiser 200 Series (All Trims - Base, Heritage Edition, 4WD) - Rear Left

Fitment Notes

• Rear LEFT (driver side) position only - the companion rear RIGHT is Bilstein 25-311419. Order both for a complete rear axle replacement.
• 4WD models. Covers the full production run of the Land Cruiser 200 Series (2008-2021), including 2008-2011 and 2013-2021 model years.
• Designed for 0-2.0 inches of rear lift - for use with lifted rear coil springs in this range. Rear shocks alone do not provide lift; appropriate rear lift coils must be purchased separately.
• Reservoir mount and hardware are included in the box. An optional billet aluminum reservoir clamp (Bilstein 11176015, sold separately) is available for a cleaner, lower-profile installation.
• Unique 360° swivel banjo hose fitting allows full rotation of the reservoir line for flexible, clean routing to any available mounting point.
• Factory shock mounting hardware is reused for installation.
• Pairs with Bilstein 47-311145 B8 6112 front coilovers for a complete 1-3" four-corner lift kit.

Features

• Bilstein B8 5160 Remote Reservoir - Bilstein's direct-fit remote reservoir monotube shock for serious off-roaders, delivering race-developed remote reservoir technology in a bolt-on package at the LC200's stock rear mounting locations.
• External remote reservoir dramatically increases oil capacity and heat dissipation compared to standard monotube shocks - maintaining consistent damping performance through sustained, repeated off-road impacts where non-reservoir shocks fade and lose control.
• 46mm monotube gas pressure design with 14mm shaft and velocity-sensitive digressive valve settings tuned specifically for the Land Cruiser 200's rear coil-spring suspension geometry and lifted use cases.
• Floating dividing piston located in the remote reservoir keeps oil and gas separated at all times, preventing aeration regardless of shock angle or operating temperature.
• Increases wheel travel versus a traditional shock absorber, improving rear axle articulation and compliance on technical off-road terrain.
• Triple-C Technology zinc-plated finish for superior corrosion resistance. Made in the USA.

Specifications

• Part Number: 25-311402
• Series: Bilstein B8 5160 (Remote Reservoir)
• Position: Rear Left (Driver Side)
• Internal Design: 46mm Monotube Gas Pressure
• Shaft Diameter: 14mm
• Rear Lift Range: 0-2.0"
• Finish: Zinc Plated (Triple-C Technology)
• Reservoir Fitting: 360° Swivel Banjo
• Country of Origin: USA
• Companion Rear Right: 25-311419
• Optional Billet Reservoir Clamp: Bilstein 11176015 (sold separately)
• Warranty: 90 Days (against manufacturer defects)

Included Components

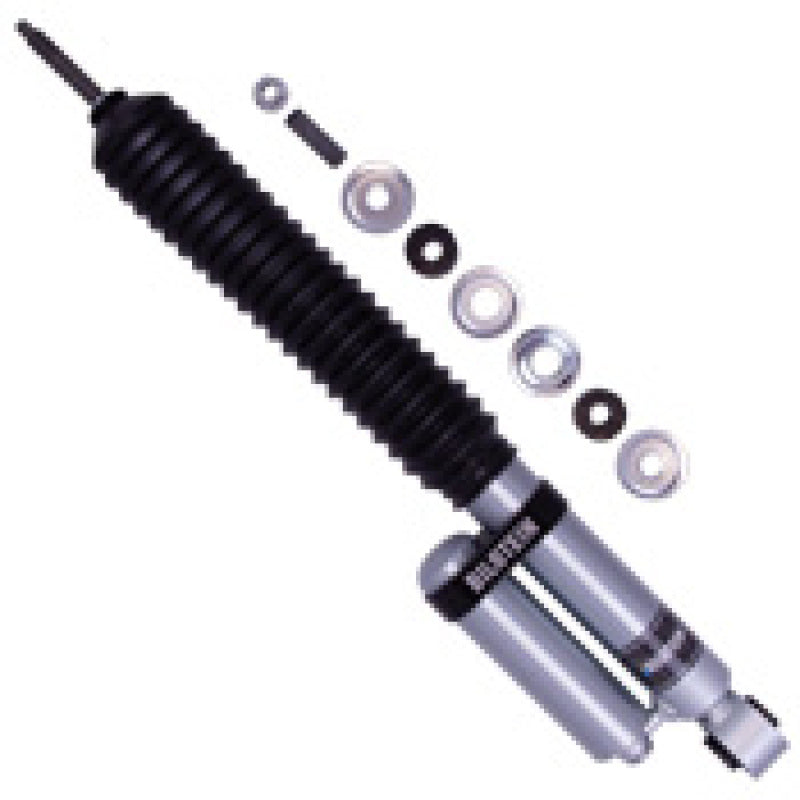

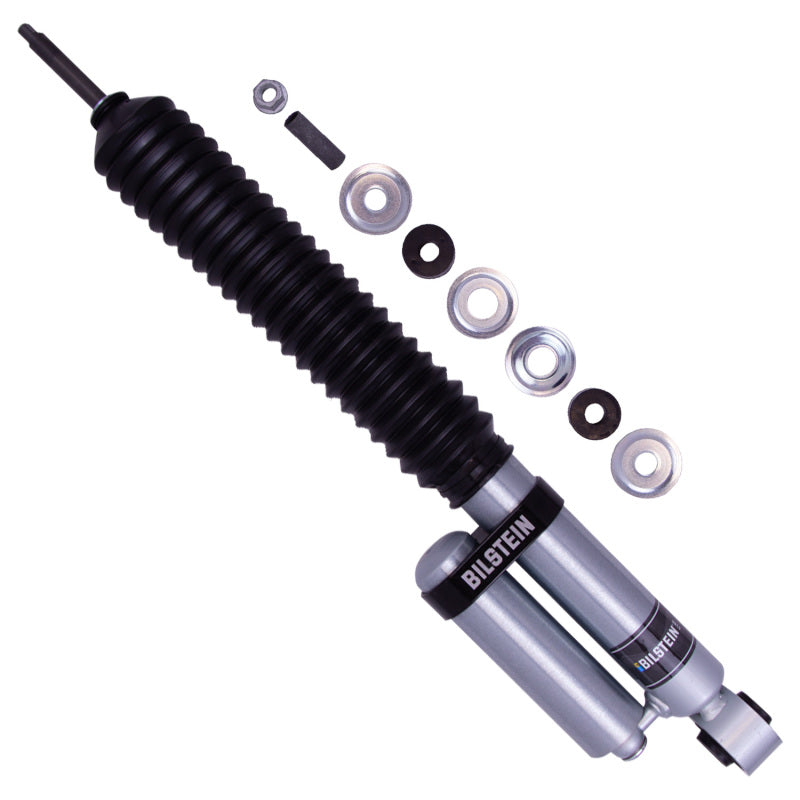

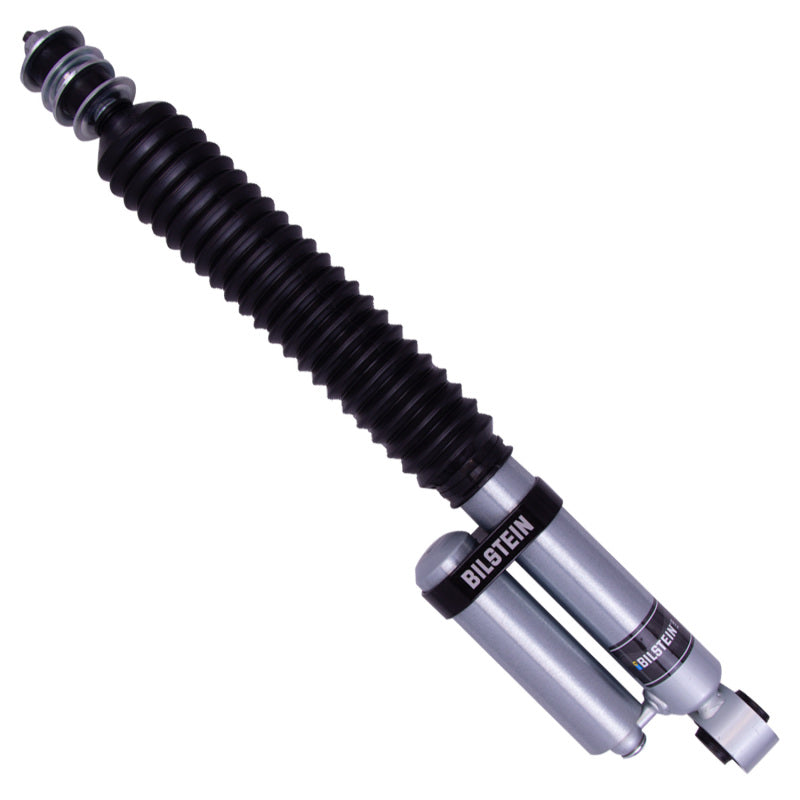

• 1x Bilstein B8 5160 Rear Left Remote Reservoir Monotube Shock Absorber (25-311402)

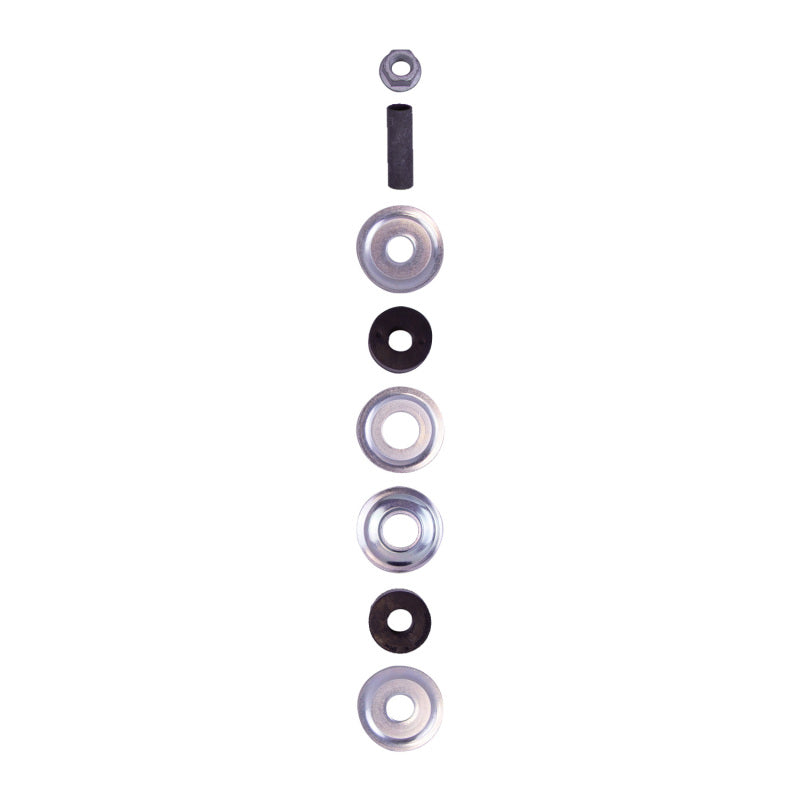

• 1x Remote Reservoir with mounting bracket and hardware
• 360° swivel banjo hose fitting (pre-installed)

Product Description

The Bilstein 25-311402 is a B8 5160 remote reservoir rear left shock absorber for the 2008-2021 Toyota Land Cruiser 200 Series in 4WD configuration, designed for 0-2.0 inches of rear lift. The B8 5160 brings Bilstein's race-proven remote reservoir technology to the LC200 in a direct bolt-on package - no fabrication or custom mounting required, using the stock rear mounting locations. For Land Cruiser owners who use their vehicle on demanding off-road terrain and want to eliminate shock fade while improving rear wheel travel and damping consistency, the 5160 is a meaningful step above the standard 5100 and 5125 series shocks.

The remote reservoir's increased oil volume and heat dissipation capacity keep damping consistent through repeated high-speed impacts that would overwhelm a traditional monotube - the most critical performance advantage on sustained off-road runs and high-speed desert terrain. The 360° swivel banjo fitting allows clean reservoir routing in any direction, and the standard mounting hardware is included. Rear lift coil springs in the 0-2.0" range must be purchased separately, as shocks alone do not provide lift. For a complete front and rear upgrade, pair with the Bilstein 47-311145 B8 6112 front coilover kit. Order the companion right side (25-311419) for a complete rear axle set. Backed by Bilstein's 90-day warranty against manufacturer defects.
