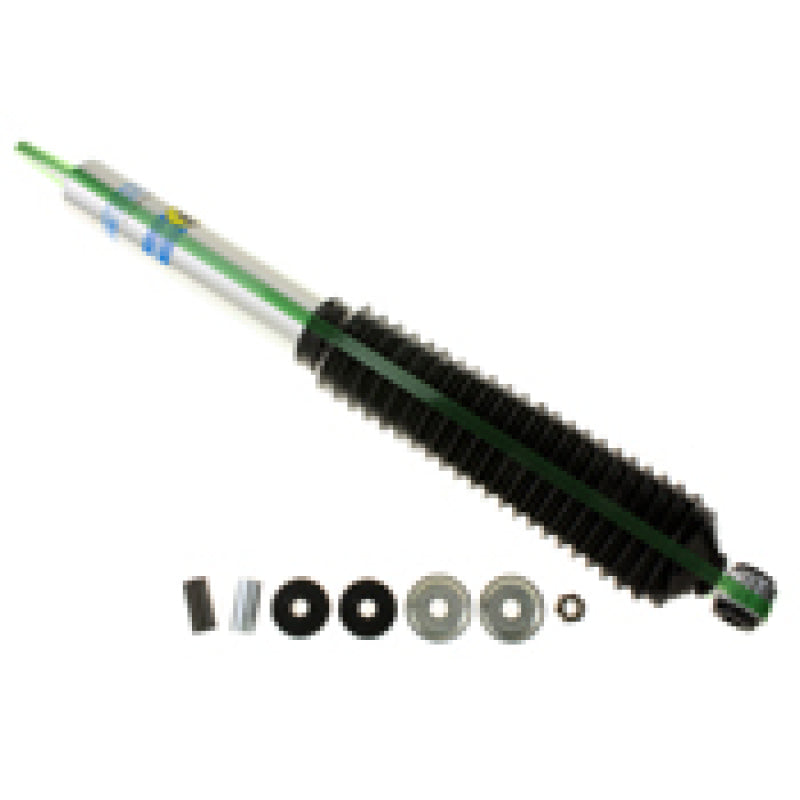

Bilstein 33-230412 Universal B8 5125 Zinc Plated Monotube Shock Absorber

Vehicle Fitment

• Universal - Custom suspension applications and lifted trucks

Features

• B8 5125 Series high-gas pressure monotube shock absorber
• Zinc-plated smooth body for enhanced corrosion resistance
• Nitrogen gas-charged design for consistent damping performance
• Self-adjusting deflective disc valving for responsive control
• Stem-to-eye mount with industry-standard 5/8" lower eye
• Approximately 9.22" travel for flexibility in custom builds
• Black protective bellows boot included
• Non-adjustable damping tuned for broad performance needs

Specifications

• Part Number: 33-230412
• Series: Bilstein B8 5125
• Type: Monotube, nitrogen gas-charged shock absorber
• Finish: Zinc-plated smooth body
• Collapsed Length: 15.19" (385.8 mm)
• Extended Length: 24.41" (620.0 mm)
• Travel/Stroke: ~9.22" (234 mm)
• Upper Mount: Stem
• Lower Mount: Eye 5/8"
• Body Diameter: ~46 mm
• Damping: Non-adjustable
• Boot: Black protective bellows included

Included Components

• 1x Universal B8 5125 Shock Absorber (33-230412)
• 1x Black protective bellows boot

Product Description

The Bilstein 33-230412 is a universal B8 5125 Series monotube rear shock absorber engineered for custom suspension applications and lifted truck builds where a direct vehicle-specific part does not exist. Its high-gas pressure monotube construction with self-adjusting deflective disc valving provides consistent, reliable damping performance and improved control over many stock design shocks. Built with a zinc-plated smooth body, this shock offers enhanced corrosion resistance for demanding conditions.

Featuring a stem-to-eye mounting configuration with industry-standard 5/8" lower eye and approximately 9.22" of travel, this shock offers flexibility for a variety of custom suspension geometries. The included black protective bellows boot helps shield the shock shaft from debris. Because this shock is universal, proper fitment requires matching its length and mount type to your specific suspension setup or using suitable adapters. It's an ideal choice for suspension builders and off-road enthusiasts seeking consistent performance and control in bespoke or aftermarket builds.
