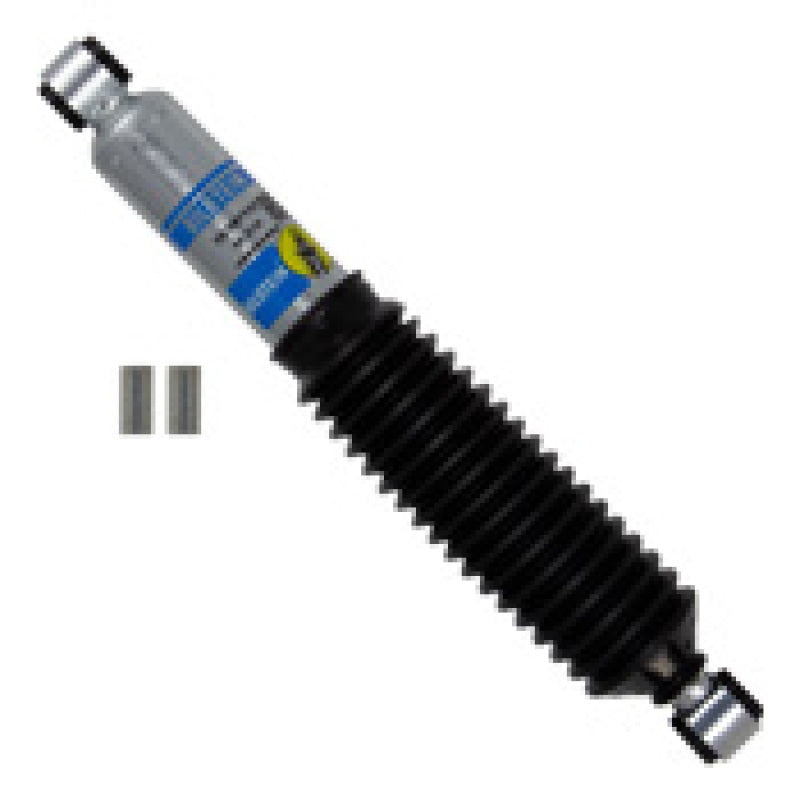

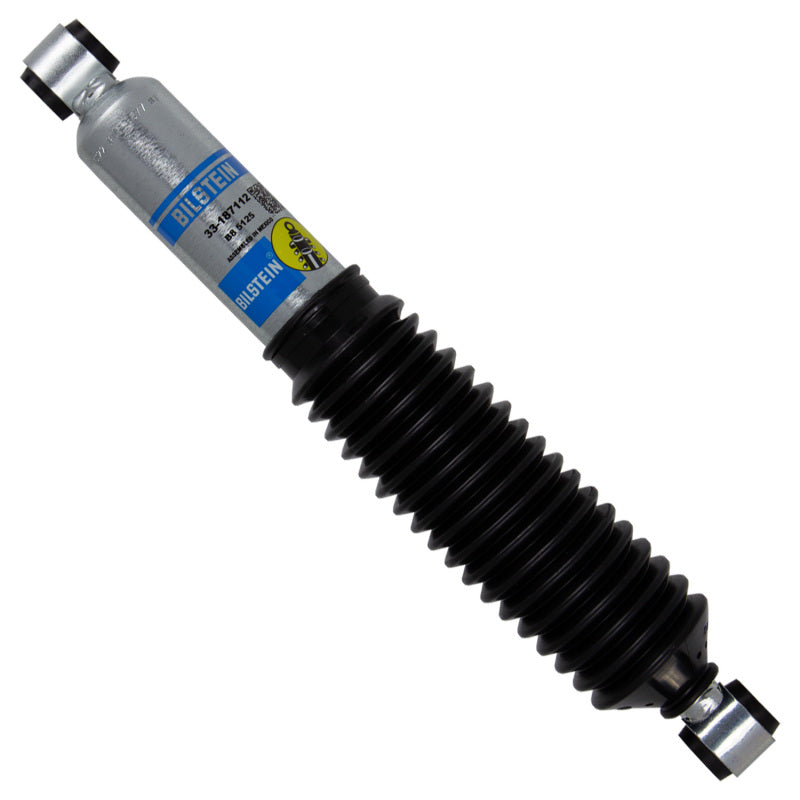

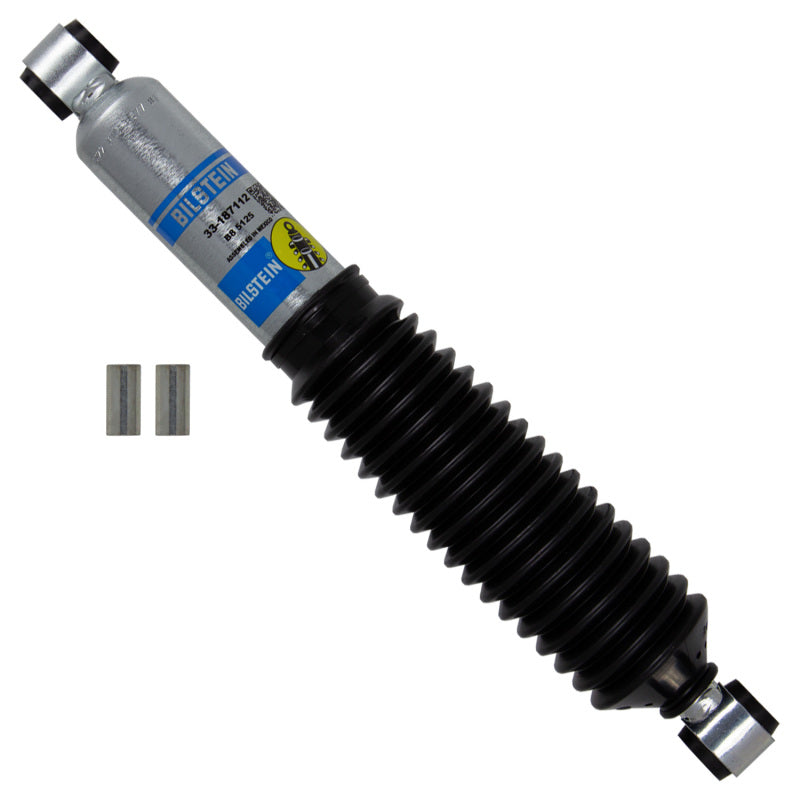

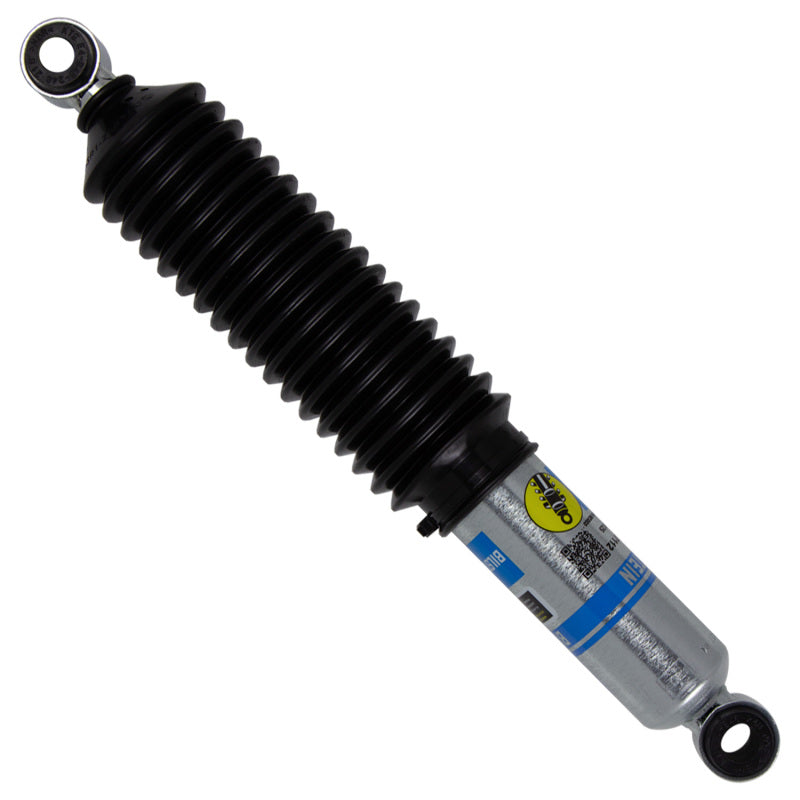

Bilstein 33-187112 B8 5125 46mm Monotube Shock Absorber Eye/Eye 5.40" Travel

Vehicle Fitment

• Universal -- Designed for custom lifted truck, SUV, and Jeep applications (no vehicle-specific fitment)

Fitment Notes

• Universal shock sold by length and valve rate -- no direct vehicle-specific fitment
• Eye/eye mount configuration with 5/8" industry-standard hourglass bushings at both ends
• Extended length 16.50" / collapsed length 11.10" / travel 5.40"
• Verify required extended length, collapsed length, and mount style before purchasing
• Ideal replacement for sub-standard shocks included in aftermarket lift kits
• Sold individually -- order quantity needed for your application
• Non-coilover, no external reservoir

Features

• 46mm monotube high-gas-pressure design for consistent, fade-free damping
• Nitrogen-infused with floating dividing piston separating gas and oil
• Patented digressive self-adjusting deflective disc valving
• Independent rebound and compression tuning for balanced control
• High-flow piston reduces harshness on rough terrain
• Larger working piston area for precise damping response
• Superior control for large-diameter tires and heavy loads
• Zinc-plated smooth body for corrosion resistance
• Unique valve profiles to accommodate varying terrain and load conditions

Specifications

• Type: Monotube shock absorber (single tube)
• Series: B8 5125
• Piston Diameter: 46mm
• Extended Length: 16.50"
• Collapsed Length: 11.10"
• Travel: 5.40"
• Upper Mount: Eye (5/8" hourglass bushing)
• Lower Mount: Eye (5/8" hourglass bushing)
• Body Style: Zinc-plated smooth body
• Coilover: No
• Reservoir: No
• Adjustable Valving: No (self-adjusting digressive)
• Gas Charge: Nitrogen high-pressure
• Weight: 3.6 lbs
• UPC: 651860614250
• Warranty: Bilstein 90-Day Limited Warranty (B8 5125 series)

Included Components

• 1x Bilstein B8 5125 monotube shock absorber (33-187112)

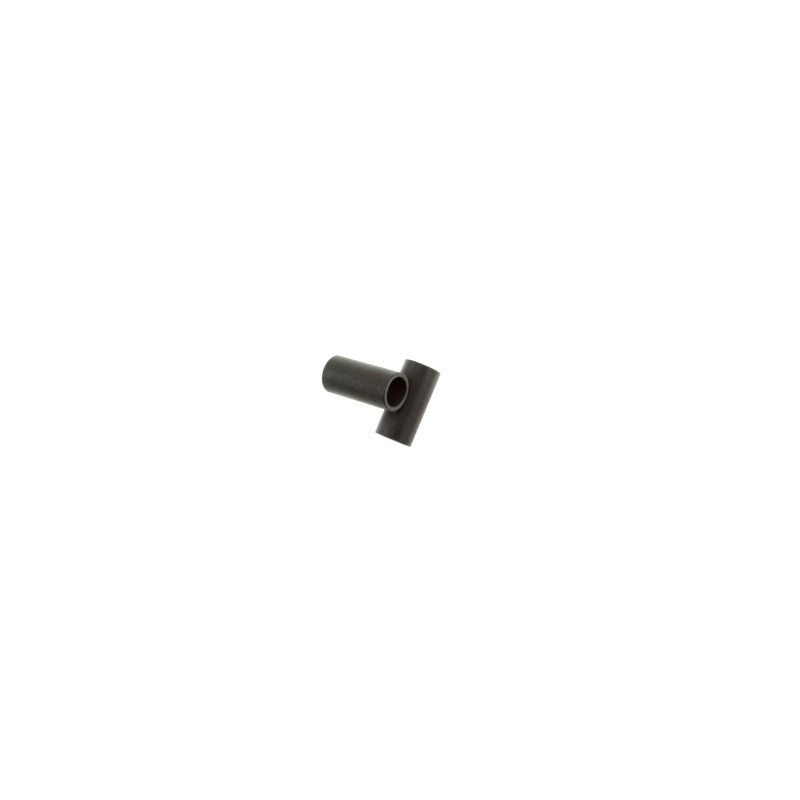

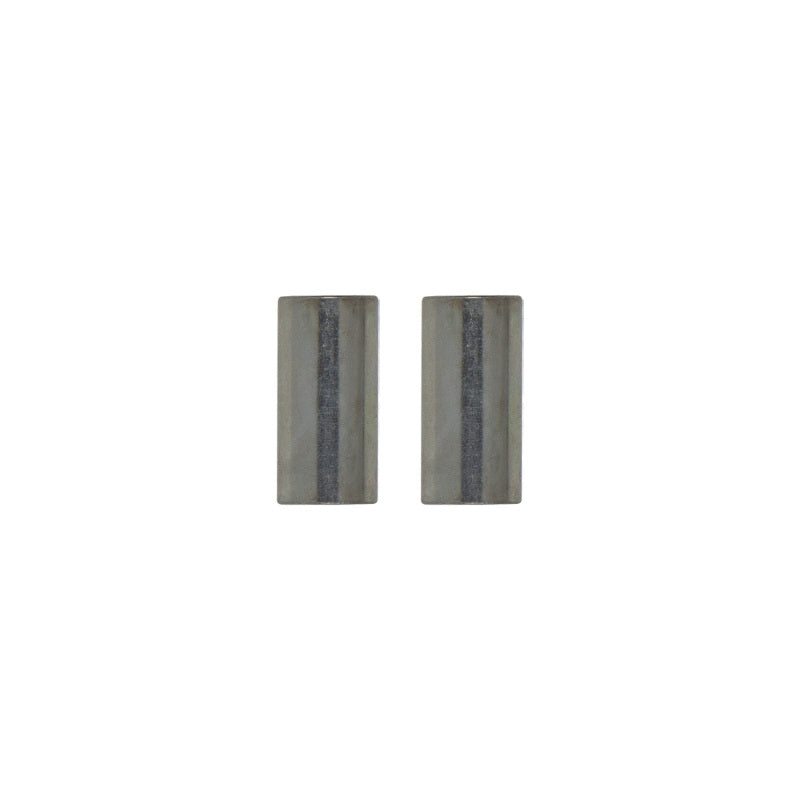

• 5/8" hourglass bushings pre-installed at both eye mounts

Product Description

The Bilstein 33-187112 is a B8 5125 series 46mm monotube shock absorber built for custom lifted truck, SUV, and Jeep applications where a direct vehicle-specific Bilstein fitment is not available. The nitrogen-charged monotube design with floating dividing piston delivers consistent, fade-free damping, while patented digressive self-adjusting disc valving automatically adapts to changing conditions -- smooth at highway speeds, firm over hard impacts. Measuring 16.50 inches extended and 11.10 inches collapsed with 5.40 inches of travel, it uses eye/eye mounts with 5/8-inch hourglass bushings for broad compatibility. The zinc-plated smooth body resists corrosion in harsh off-road environments. Sold individually. Manufactured by thyssenkrupp Bilstein of America in Poway, California. Covered by the Bilstein 90-day limited warranty.
