Bilstein 24-249928 B8 5100 Adjustable Front Shock for 96-04 Toyota Tacoma 4WD

Vehicle Fitment

• 1996-2004 Toyota Tacoma (Base/Extended Cab, 4WD, 2.7 L L4 & optional 3.4 L V6, front coil-spring KOEO strut)

Features

• Ride-height adjustable via snap-ring collar - 0-2" lift
• 46 mm high-pressure monotube design for fade resistance
• Velocity-sensitive digressive piston enhances ride control
• Zinc-plated body for corrosion protection
• Black straight boot shields piston rod from debris
• Maintains factory coil springs - no spacers needed
• Durable design improves both on- and off-road handling
• Factory-grade mounting hardware included for direct bolt-on fit

Specifications

• Position: Front
• Extended length: 18.66"; Compressed: 13.86"; Travel: 4.80" :contentReference[oaicite:3]{index=3}
• Body diameter: 46 mm monotube :contentReference[oaicite:4]{index=4}
• Upper mount: Stem; Lower: 14.2 mm eyelet :contentReference[oaicite:5]{index=5}
• Lift capacity: 0-2" front adjustment with OE springs :contentReference[oaicite:6]{index=6}

Included Components

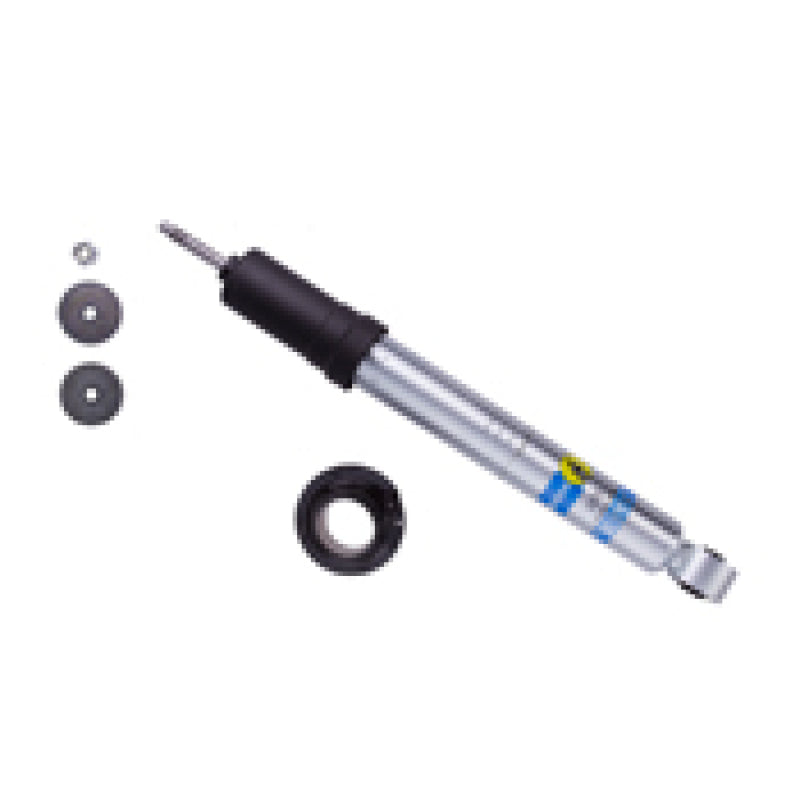

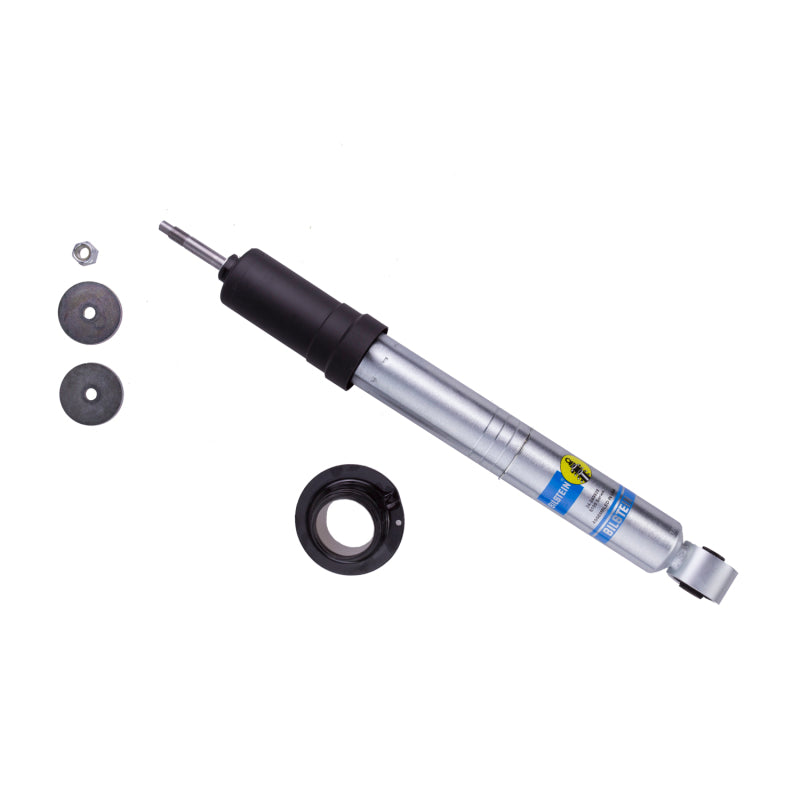

• 1x Bilstein 24-249928 front B8 5100 adjustable shock
• 1x Black vinyl boot
• 1x Zinc-plated snap-ring spring collar
• 1x Upper stem bushing
• 1x Lower eyelet bushing
• Factory-grade washers and nuts

Product Description

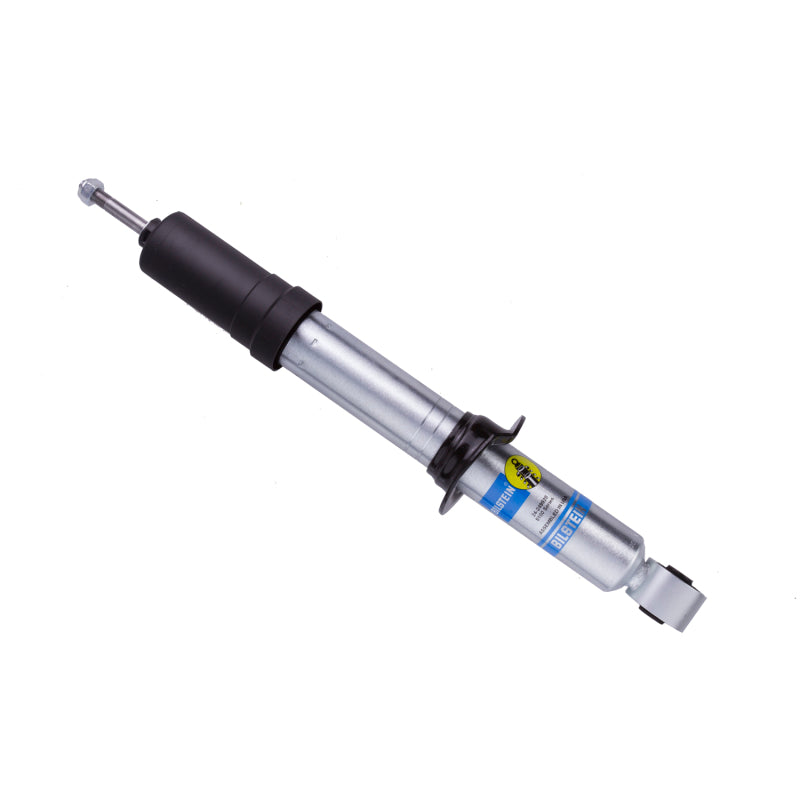

The Bilstein B8 5100 front shock (24-249928) is a ride-height adjustable, direct-replacement monotube strut engineered for 1996-2004 Toyota Tacoma 4WD with coil-spring strut setups. It features snap-ring collar adjustments that deliver between 0 and 2" of lift, allowing owners to level their truck for larger tires or improved off-road clearance - all without spacers or modifying springs. The monotube gas-damped design and zinc-plated body ensure consistent performance and durability in varied driving conditions.

This front series offers a precise combination of factory mounting compatibility and premium ride control. Ideal for Tacoma owners who need enhanced stability and ground clearance without compromising ride quality. All required hardware is included for an easy bolt-on installation. Fitment confirmed through 2004; 2005+ Tacoma uses updated strut setup - 2025 coverage unconfirmed at time of listing.
