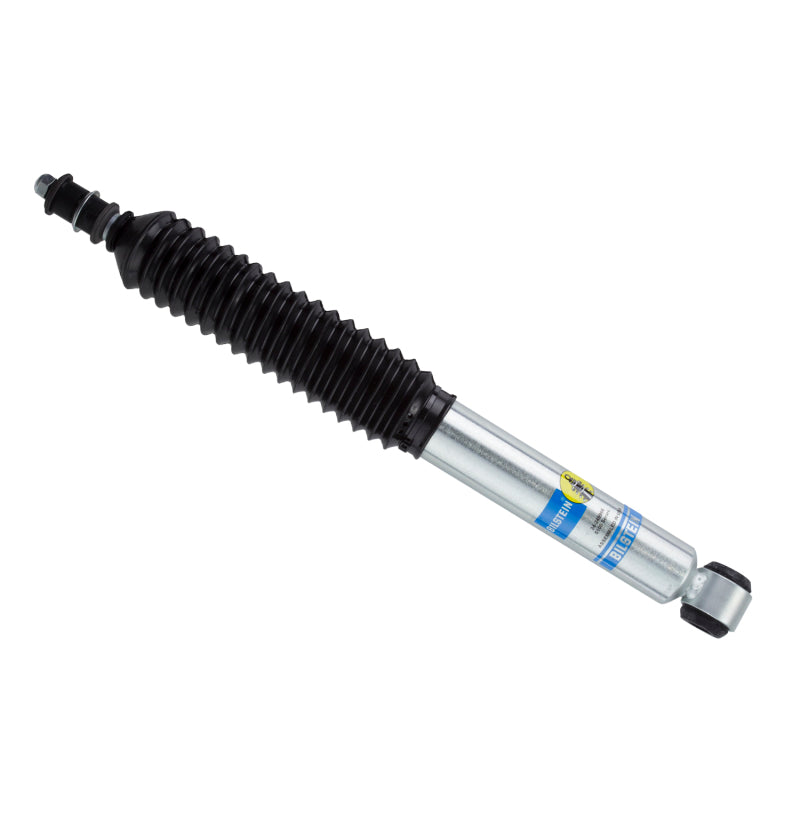

Bilstein 24-249966 B8 5100 Rear Shock 0-2" Lift for 1996-2002 Toyota 4Runner

Vehicle Fitment

• 1996-2002 Toyota 4Runner (Base/Limited/SR5, V6 3.4 L or I4 2.7 L, 4WD/AWD, RWD)

Features

• Ride-height adjustable: 0-2" lift via snap-ring collar
• 46 mm high-pressure monotube for consistent damping
• Direction-sensitive digressive piston enhances control
• Zinc-plated body resists corrosion
• Black bellows boot protects against debris
• Tuned valving for lifted truck/SUV applications
• Factory bolt-on fit with OEM mounting geometry
• Covers heavy loads, towing, and off-road use

Specifications

• Position: Rear
• Extended length: 20.79"; Compressed: 12.91"; Travel: 7.88" :contentReference[oaicite:3]{index=3}
• Body diameter: 46 mm monotube :contentReference[oaicite:4]{index=4}
• Upper mount: stem; Lower mount: 19 mm eyelet :contentReference[oaicite:5]{index=5}
• Lift range: 0-2" rear, compatible with common lift heights :contentReference[oaicite:6]{index=6}
• Finish: Zinc-plated body, black boot :contentReference[oaicite:7]{index=7}
• Internal: Nitrogen-charged monotube, velocity-sensitive digressive piston :contentReference[oaicite:8]{index=8}
• Warranty: Limited lifetime (North America) :contentReference[oaicite:9]{index=9}
• Origin: Made in USA (not China) :contentReference[oaicite:10]{index=10}

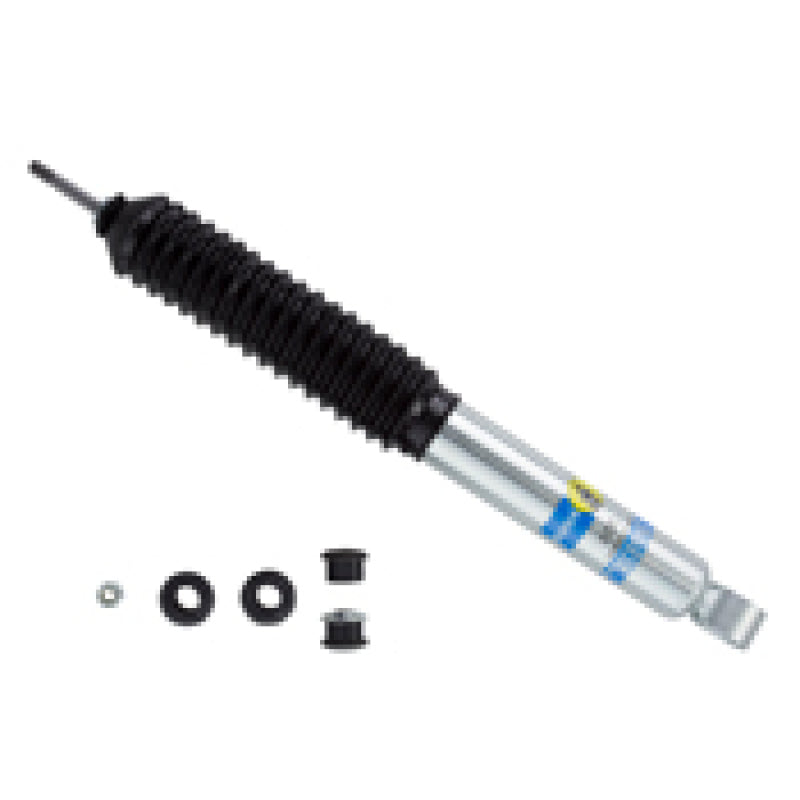

Included Components

• 1x Bilstein 24-249966 rear B8 5100 shock absorber
• 1x Black bellows protective boot
• 1x Zinc-plated snap-ring spring collar

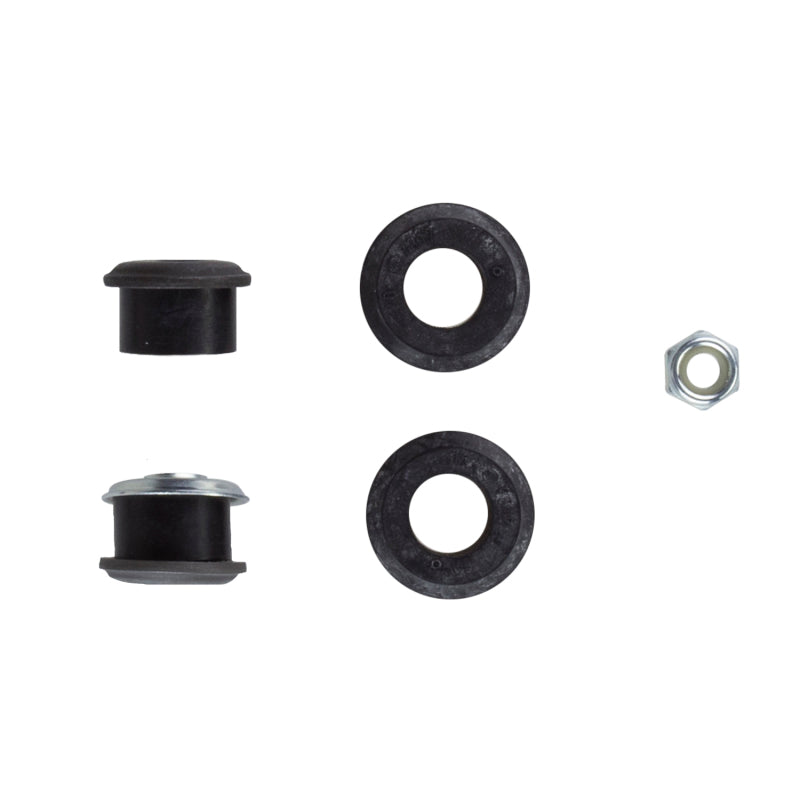

• 1x Upper stem bushing
• 1x Lower eyelet bushing
• Hardware: washers, nuts, mounting clips (factory grade) :contentReference[oaicite:11]{index=11}

Product Description

The Bilstein B8 5100 Rear Shock (24-249966) is a ride-height adjustable, direct-fit performance shock engineered for 1996-2002 Toyota 4Runner models with rear monotube suspension. Featuring a high-pressure 46 mm monotube design and a velocity-sensitive digressive piston, this shock delivers consistent, confident control in lifted configurations up to 2" - perfect for trucks used in daily driving, towing, or off-road.

Constructed with corrosion-resistant zinc-plated bodies and protected by black bellows boots, these shocks are built to withstand rugged conditions. The bolt-on installation utilizes OEM mounting points with included bushings and hardware, saving time and hassle. Backed by Bilstein's North American limited lifetime warranty and made in the USA, the 24-249966 offers reliability, performance, and peace of mind for lifted 4Runner owners.
