Bilstein 24-185745 Front B8 5100 Shock for 86-95 Toyota Pickup/4Runner Lift

Vehicle Fitment

• 1986-1995 Toyota Pickup (Front, 4WD/2WD; 3-4" Lift)
• 1986-1995 Toyota 4Runner (Front, 4WD/2WD; 3-4" Lift)

Features

• Bilstein B8 5100 Series monotube gas-charged front shock absorber
• Specifically tuned for lifted 3-4" truck/SUV front suspension
• Velocity-sensitive digressive piston for responsive damping
• Improved handling and control on varying terrain
• Durable zinc plated finish for corrosion resistance
• Black protective boot included
• Non-adjustable damping optimized for lifted use
• Direct bolt-on installation for compatible vehicles

Specifications

• Part Number: 24-185745
• Series: Bilstein B8 5100
• Position: Front (driver or passenger side)
• Internal Design: Monotube gas pressure
• Extended Length: ~17.95" (456.0 mm)
• Collapsed Length: ~11.67" (296.5 mm)
• Body Diameter: 46 mm
• Upper Mount: Stem
• Lower Mount: Eye 16 mm
• Lift Compatibility: ~3-4" front lift
• Quantity: Sold individually

Included Components

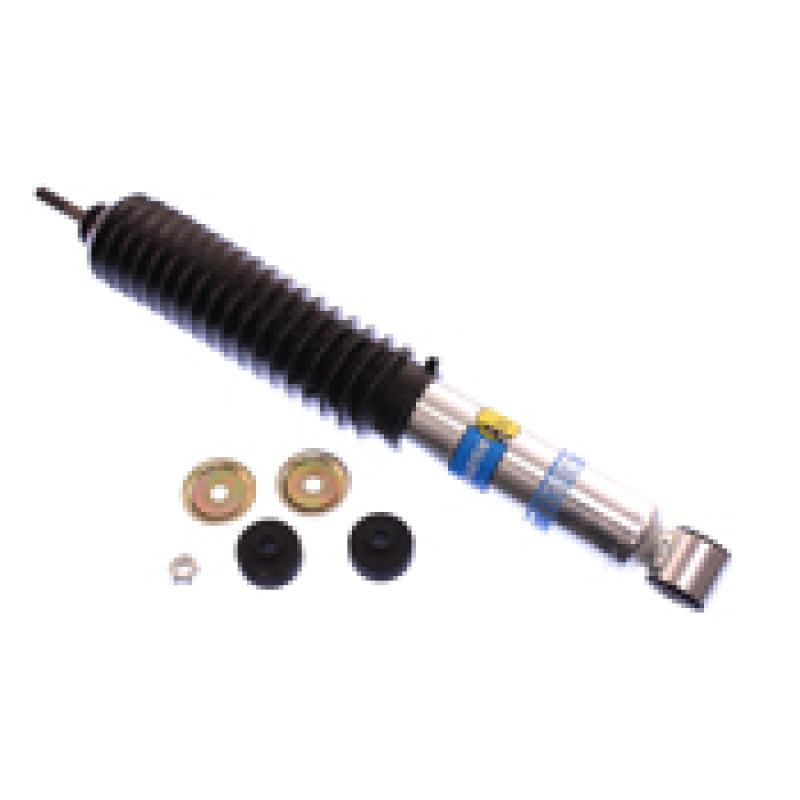

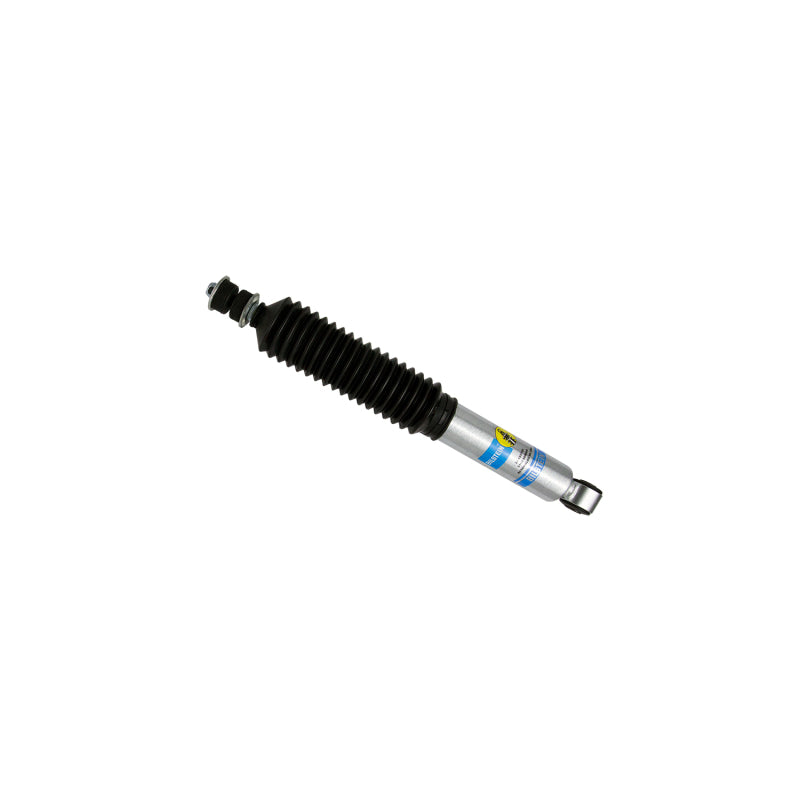

• 1x Bilstein B8 5100 Front Shock Absorber (24-185745)
• 1x Black Protective Boot

Product Description

The Bilstein 24-185745 B8 5100 front shock absorber is engineered for lifted Toyota Pickup and 4Runner vehicles from 1986 through 1995. Built with a monotube gas-charged design and velocity-sensitive digressive piston, this shock provides superior damping control and reduces fade compared to conventional hydraulic shocks when navigating rough terrain or hauling loads with a lifted suspension.

Designed for front suspension lift heights around 3-4", the 24-185745 bolts directly to factory mounting points for an easy installation. Its corrosion-resistant zinc plated finish and included protective boot extend service life, while the tuned valving enhances handling and ride quality over stock shocks. Sold individually, it is recommended to install a matched pair for balanced suspension performance on lifted 1986-1995 Toyota Pickup and 4Runner trucks.
