Bilstein 24-233354 B8 5100 Rear Shock for 19-25 Dodge Ram 1500 with 0-2" Lift

Vehicle Fitment

2019-2025 Ram 1500 (DT) 2WD
2019-2025 Ram 1500 (DT) 4WD

Fitment Notes

• Rear shock absorber - sold individually
• For 0-2 inch rear lift without factory Off-Road Package
• For 0-1 inch rear lift with factory Off-Road Package
• Coil spring rear suspension only - will NOT fit air suspension equipped vehicles
• Does NOT fit DS or Classic Edition Ram 1500 trucks
• Excludes Rebel, RHO, and TRX models

Features

• 46mm monotube design for consistent fade-free performance
• Velocity-sensitive digressive piston instantly reacts to changing road conditions
• Self-adjusting deflective-disc independent rebound and compression valving
• Application-specific tuning for optimal performance
• High-pressure nitrogen gas charged for no aeration
• 2-inch seamless extruded tube construction
• 14mm centerless-ground, case-hardened, chromed, and super-polished rod
• Zinc plated smooth body for corrosion protection
• Direct fit using OE-specific mounting hardware
• Made in USA - Hamilton, Ohio

Specifications

• Part Number: 24-233354
• Series: B8 5100
• Position: Rear
• Shock Type: Monotube, Gas Charged
• Body Diameter: 46mm
• Collapsed Length: 15.89 inches (403.5mm)
• Extended Length: 25.43 inches (645.9mm)
• Upper Mount Type: Stem
• Lower Mount Type: Eye 14.1mm
• Adjustable Damping: No
• Reservoir: No
• Finish: Zinc Plated

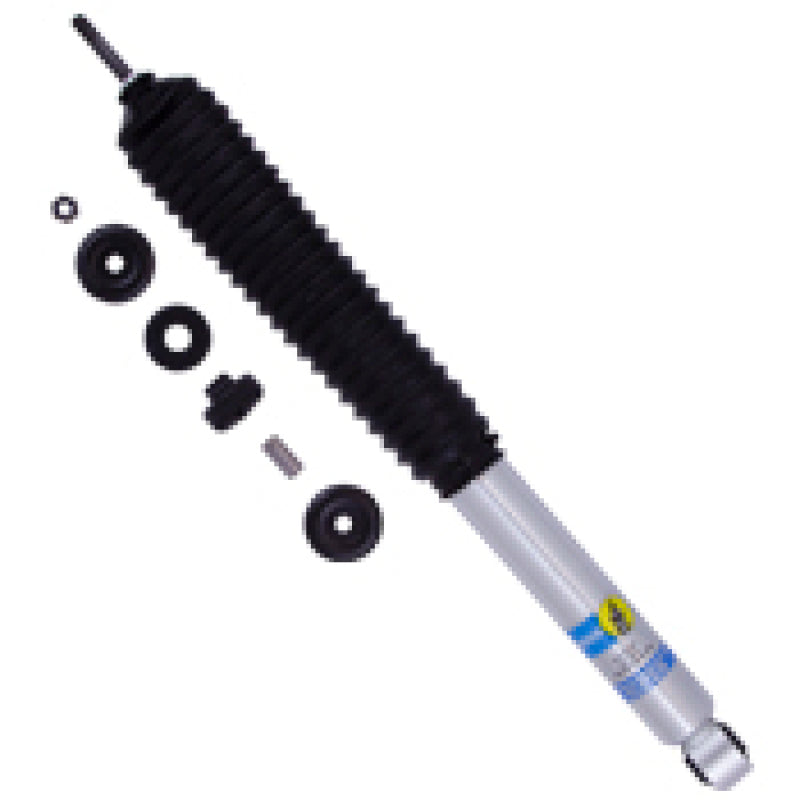

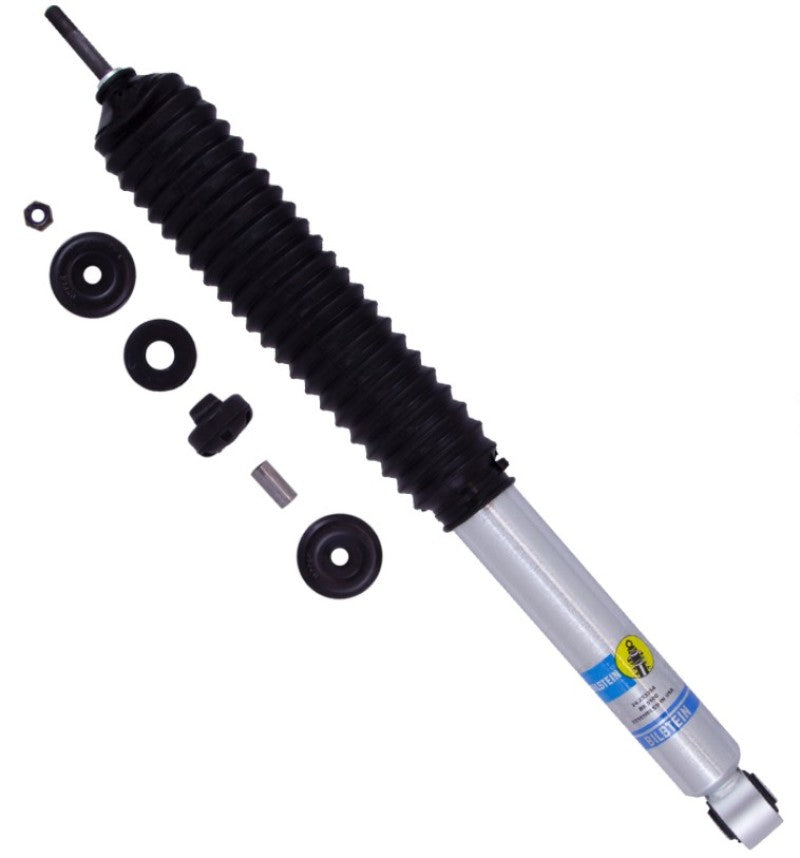

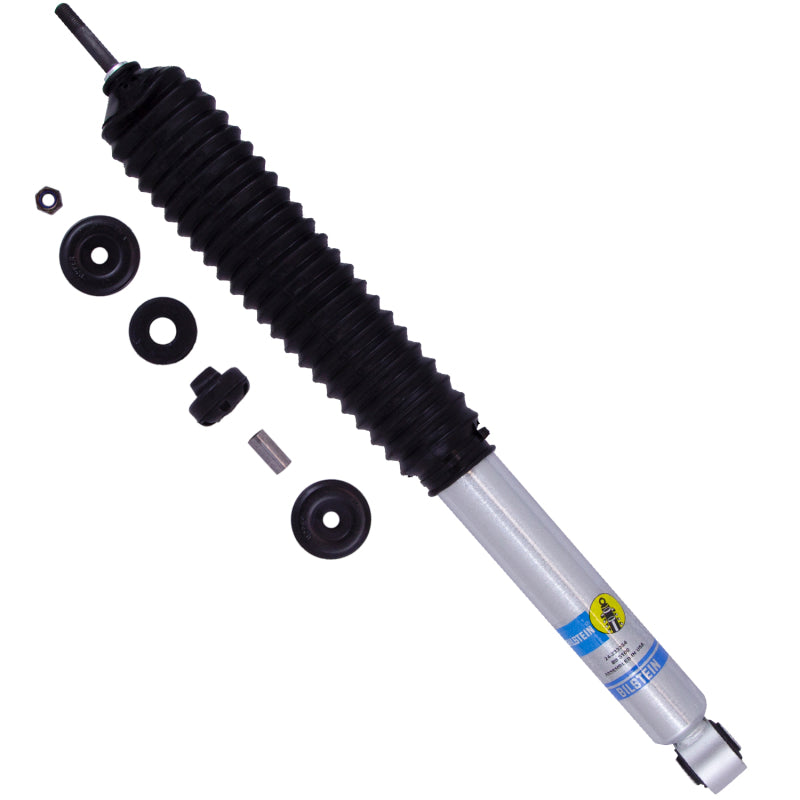

Included Components

• One B8 5100 Series rear shock absorber
• Black bellows boot

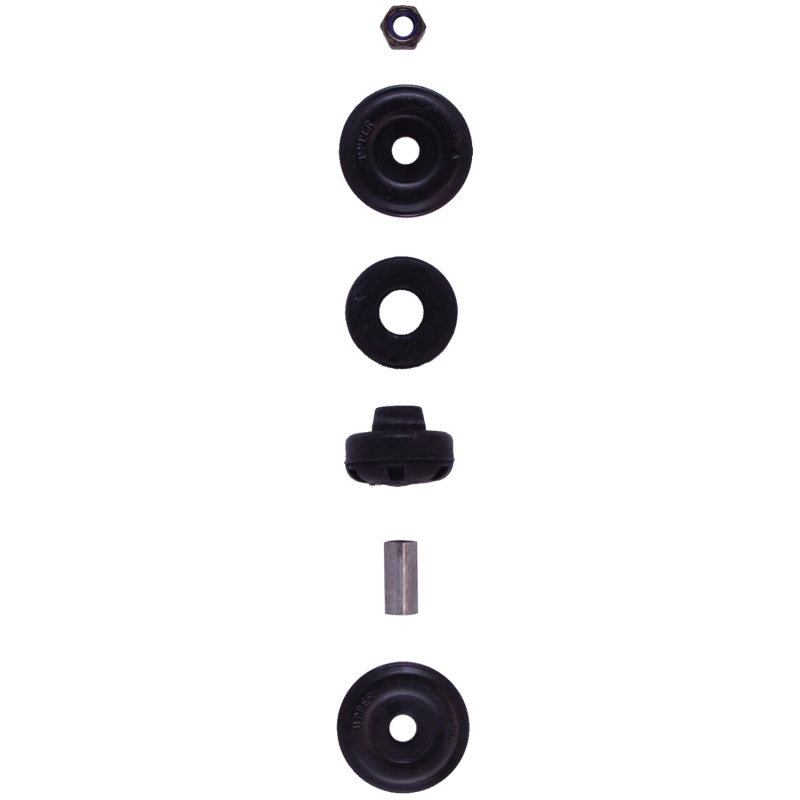

• Installation hardware

Product Description

The Bilstein B8 5100 Series Rear Shock Absorber delivers significant improvements in ride quality, handling, and comfort for lifted Ram 1500 trucks. Featuring Bilstein's patented 46mm digressive piston technology, this shock instantly adapts to changing road surfaces for maximum control on and off the road. The monotube design provides cooler, more efficient operation and longer service life compared to twin-tube designs. Each shock is specifically tuned for your application with split compression and rebound valving to deliver optimal performance whether hauling, towing, or tackling off-road terrain. Built in Hamilton, Ohio with the same precision machinery used in Germany, this shock is backed by Bilstein's limited lifetime warranty.
