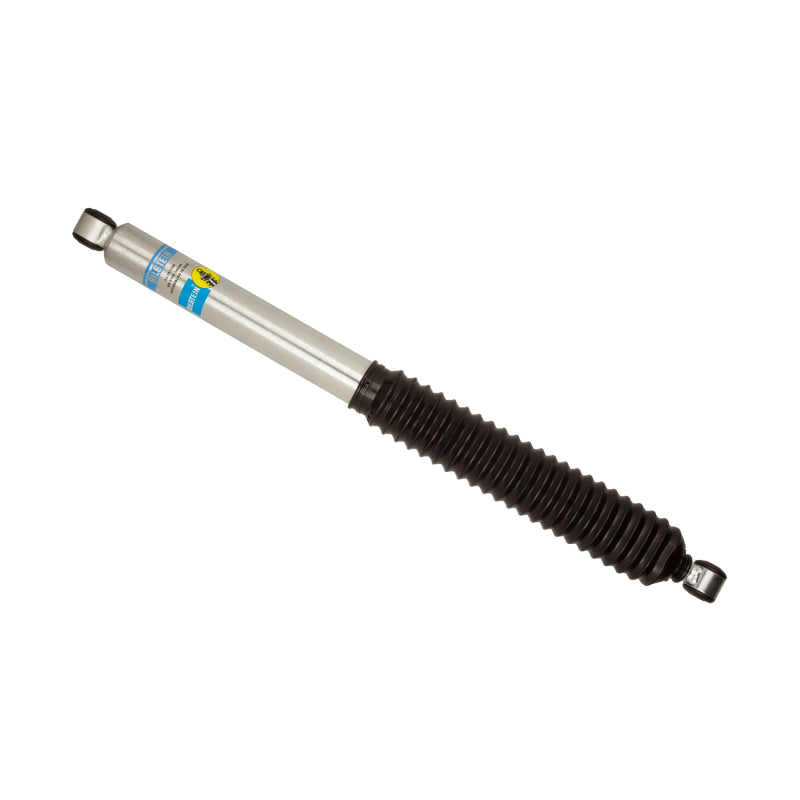

Bilstein 33-253190 B8 5100 Rear Shock for 2015-2024 Ford F-150 4WD w/0-1" Lift

Vehicle Fitment

• 2015-2024 Ford F-150 4WD (all cab/config trims; rear axle)

Fitment Notes

• Rear shock only; sold individually--purchase two for both sides
• Designed for 0-1" rear lift; stock height users may prefer Bilstein 4600 series
• Not compatible with trucks featuring continuously controlled rear suspension (CCD)

Features

• B8 5100 monotube design with 46 mm digressive piston--fade-resistant performance
• Zinc-plated silver finish resists corrosion and enhances durability
• Velocity-sensitive valving for firm off-road control and highway comfort
• Designed specifically for lifted or heavy-load conditions
• Zinc-plated body with clear coat for long-term resilience
• Included factory hardware--reuses OEM mounting bolts
• Limited lifetime warranty for as long as the original owner owns the vehicle
• Manufactured under ISO-certified processes in USA/Germany

Specifications

• Part Number: 33-253190
• Series: B8 5100 Performance Shock
• Design: 46 mm monotube, digressive piston, non-adjustable
• Compressed Length: 17.52" (445 mm); Extended: 28.74" (730 mm); Travel: 11.22"
• Mount Type: 12 mm eyelet top & bottom
• Finish: Zinc-plated body with black bellows boot
• Position: Rear axle (left or right)
• Warranty: Limited lifetime

Included Components

• 1x Bilstein B8 5100 monotube rear shock (individual unit)
• Factory-grade washers, bushings, reservoir clamp (if applicable)
• Installation instructions and warranty documentation

Product Description

Enhance the rear performance of your 2015-2024 Ford F-150 with the Bilstein 33-253190 B8 5100 shock absorber. Engineered with a robust 46 mm monotube and digressive piston, this shock delivers stable damping across both daily driving and off-road conditions. The zinc-plated, corrosion-resistant finish ensures longevity, while velocity-sensitive valving adapts to varying terrains for a smooth ride.

Perfectly suited for trucks lifted 0-1" or carrying heavy loads, this rear shock installs easily using existing hardware without modifications. Designed to U.S./German specs and backed by a limited lifetime warranty, it's a reliable and performance-driven upgrade for your F-150's rear suspension. Note: to replace both sides, purchase two units; for stock height or CCD-equipped models, consider Bilstein 4600 alternative.
