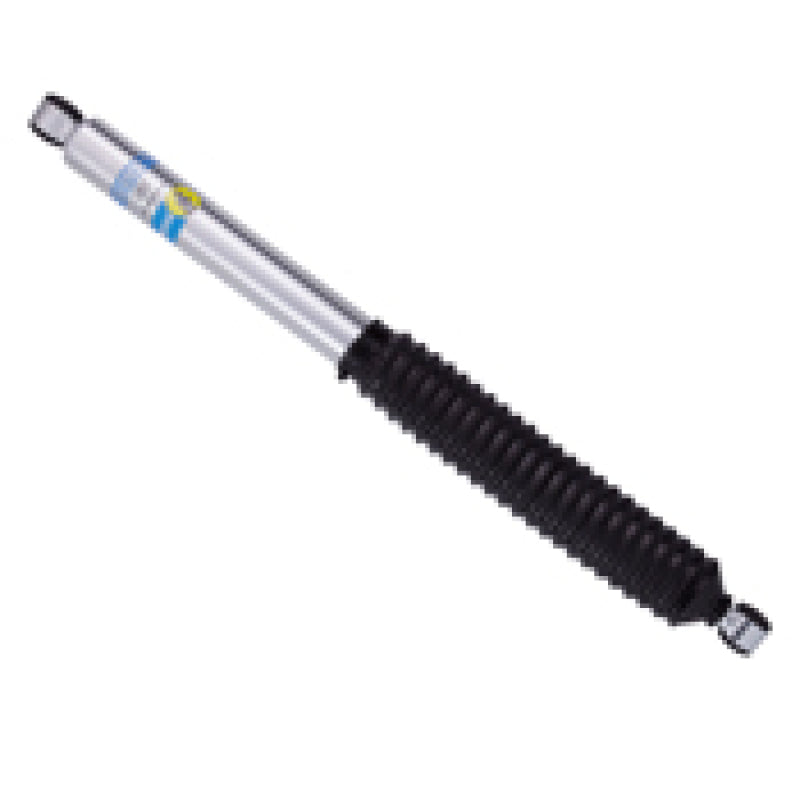

Bilstein 33-256764 B8 5100 Rear Shock for '14 Ford F-150 0-1" Lift 4WD

Vehicle Fitment

• 2014 Ford F-150 4WD (Rear Shock, 0-1" Rear Lift)

Features

• Bilstein B8 5100 series rear shock absorber
• Monotube gas-charged design for improved damping performance
• Velocity-sensitive digressive piston valving reacts to changing surface conditions
• Engineered for lifted trucks with 0-1" rear lift
• Zinc-plated corrosion-resistant finish
• Black protective bellows boot included
• Direct bolt-on replacement with OE-style mounting points
• Limited lifetime warranty

Specifications

• Part Number: 33-256764
• Series: Bilstein B8 5100
• Position: Rear
• Internal Design: Monotube gas-charged
• Upper Mount: Eyelet 12 mm
• Lower Mount: Eyelet 12 mm
• Collapsed Length: 17.52 in (445 mm)
• Extended Length: 28.74-28.77 in (730-731 mm)
• Piston Diameter: 46 mm
• Boot: Black bellows included

Included Components

• 1x Rear shock absorber (single, sold individually)
• 1x Protective bellows boot

Product Description

The Bilstein 33-256764 B8 5100 rear shock is a performance-oriented replacement designed specifically for 2014 Ford F-150 trucks with 4WD and a mild 0-1" rear lift. Featuring Bilstein's monotube gas-charged construction and patented velocity-sensitive digressive pistons, this shock delivers improved damping consistency over stock units - enhancing control, handling, and comfort both on-road and off-road. Its robust 46 mm shock body and corrosion-resistant zinc plating help extend service life in rugged conditions.

Designed as a direct bolt-on replacement, the 33-256764 fits the factory rear mounting points with no extra modifications and includes a black protective bellows boot. Ideal for trucks lifted up to 1", it helps maintain ride quality while providing confidence-inspiring performance for daily driving, towing, or trail use. Sold individually, matching shock units are recommended for both sides of the vehicle.
